Sealing ring 1660713

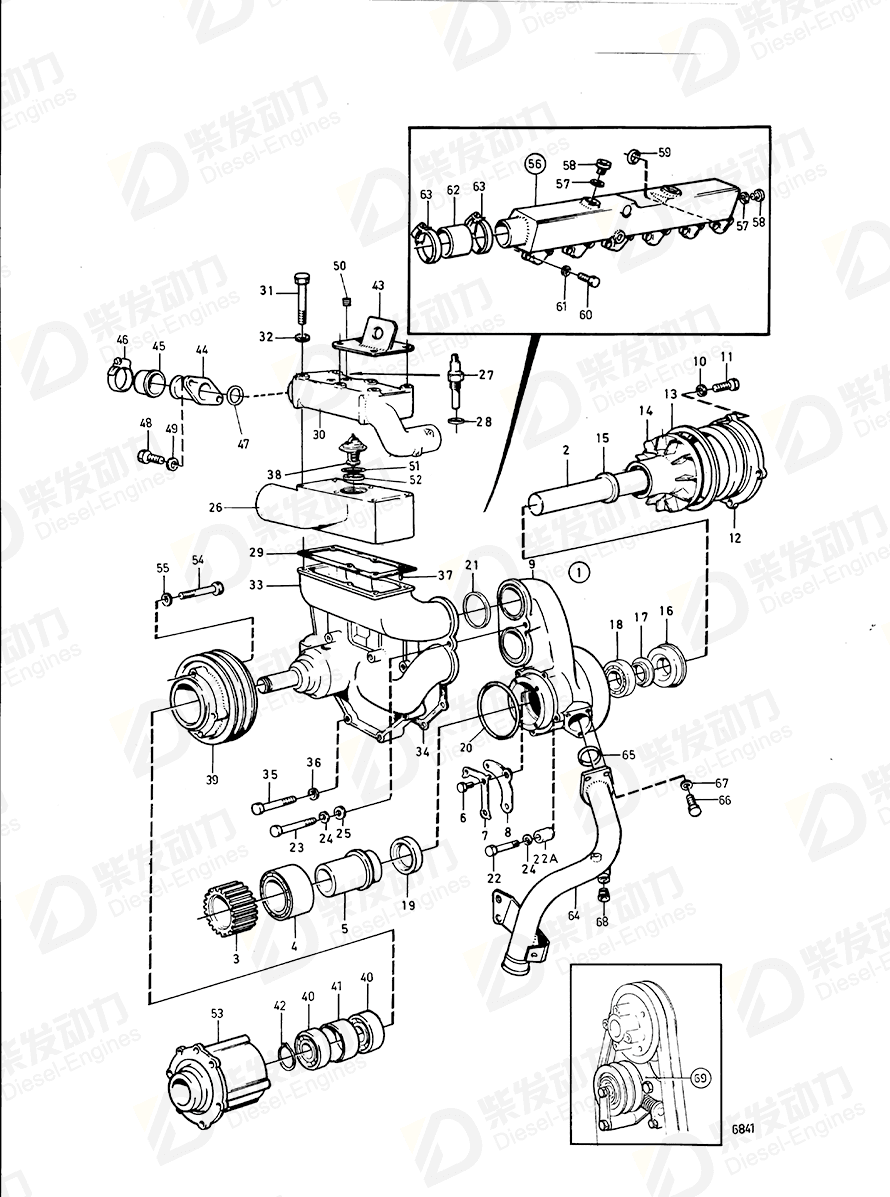

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 1545261 | 1 | SN-2120214925 |
| 2 | Shaft | 468249 | 1 | |
| 3 | Gear | 470265 | 1 | |
| 4 | Ball bearing | 181286 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 5 | Spindle | 468247 | 1 | |
| 6 | Hexagon screw | 940100 | 3 | |
| 7 | Lock washer | 1545359 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 8 | Lock washer | 1545358 | 2 | Included in repair kit 276936 for water pump 20431484. |
| 10 | Spring washer | 941906 | 4 | |
| 11 | Hexagon screw | 955513 | 4 | |
| 12 | Cover | 469418 | 1 | |
| 13 | O-ring | 925262 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 14 | Impeller | 468244 | 1 | Replaced by impeller 8121826 and sealing ring 1676432., Repl by 8121826+1676432 |
| 15 | Wear ring | 421306 | 1 | |
| 16 | Sealing ring | 1545283 | 1 | (1542833) |
| 17 | Deflector | 70913 | 1 | |
| 18 | Ball bearing | 1660609 | 1 | (181670) |
| 19 | Sealing ring | 958811 | 1 | Included in repair kit 3830711. |
| 20 | O-ring | 925257 | 1 | |
| 21 | Sealing ring | 1660713 | 2 | |
| 22 | Hexagon screw | 942338 | 3 | |
| 22 | Hexagon screw | 955542 | 1 | |
| 23 | Hexagon screw | 955535 | 1 | |
| 24 | Spring washer | 942336 | 5 | |
| 25 | Washer | 940097 | 1 | |
| 26 | Thermostat housing | 470396 | 1 | |
| 27 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 28 | Gasket | 11996 | 1 | |
| 29 | Gasket | 423352 | 1 | |
| 31 | Hexagon screw | 959798 | 4 | |
| 31 | Hexagon screw | 959799 | 2 | L=165mm |
| 32 | Washer | 940097 | 2 | |
| 33 | Lower section | 468635 | 1 | |
| 34 | Gasket | 423351 | 1 | |
| 35 | Hexagon screw | 955535 | 5 | |
| 35 | Hexagon screw | 955541 | 2 | |
| 36 | Spring washer | 942336 | 7 | |
| 37 | Spring pin | 951973 | 2 | |
| 38 | Thermostat | 1544683 | 1 | 82° |
| 40 | Ball bearing | 181538 | 2 | |
| 41 | Spacer sleeve | 417638 | 1 | |
| 42 | Retaining ring | 914462 | 1 | |
| 43 | Anchorage | 475888 | 1 | |
| 44 | Connecting pipe | 845435 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 45 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 46 | Hose clamp | 943475 | 1 | |
| 47 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 48 | Hexagon screw | 940135 | 2 | |
| 49 | Spring washer | 941907 | 2 | |
| 50 | Plug | 952077 | 2 | |
| 51 | Sealing ring | 1544710 | 1 | |
| 52 | Sealing ring | 1544410 | 1 | |
| 53 | Hub | 476976 | 1 | |
| 54 | Hexagon screw | 955536 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 55 | Spring washer | 942336 | 4 | |
| 56 | Tube | 468858 | 1 | |
| 57 | Gasket | 468463 | 3 | |
| 58 | Plug | 467366 | 3 | |
| 59 | O-ring | 423281 | 6 | |
| 60 | Hexagon screw | 955525 | 12 | |
| 61 | Spring washer | 941907 | 12 | |
| 62 | Radiator hose | 470464 | 1 | (468216) |
| 63 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 64 | Connecting pipe | 847449 | 1 | |
| 65 | O-ring | 925092 | 1 | |
| 66 | Hexagon screw | 940135 | 3 | |
| 67 | Spring washer | 941907 | 3 | |
| 68 | Plug | 952077 | 2 |
| Item | Part Name | Part No. |
| 21 | Sealing ring 1660713 | 1660713 |
| Details | |
| Engine model | TD120HPP TID120HPP TID121FG |
| Application | THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: B THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP |
