Sealing ring 1676561

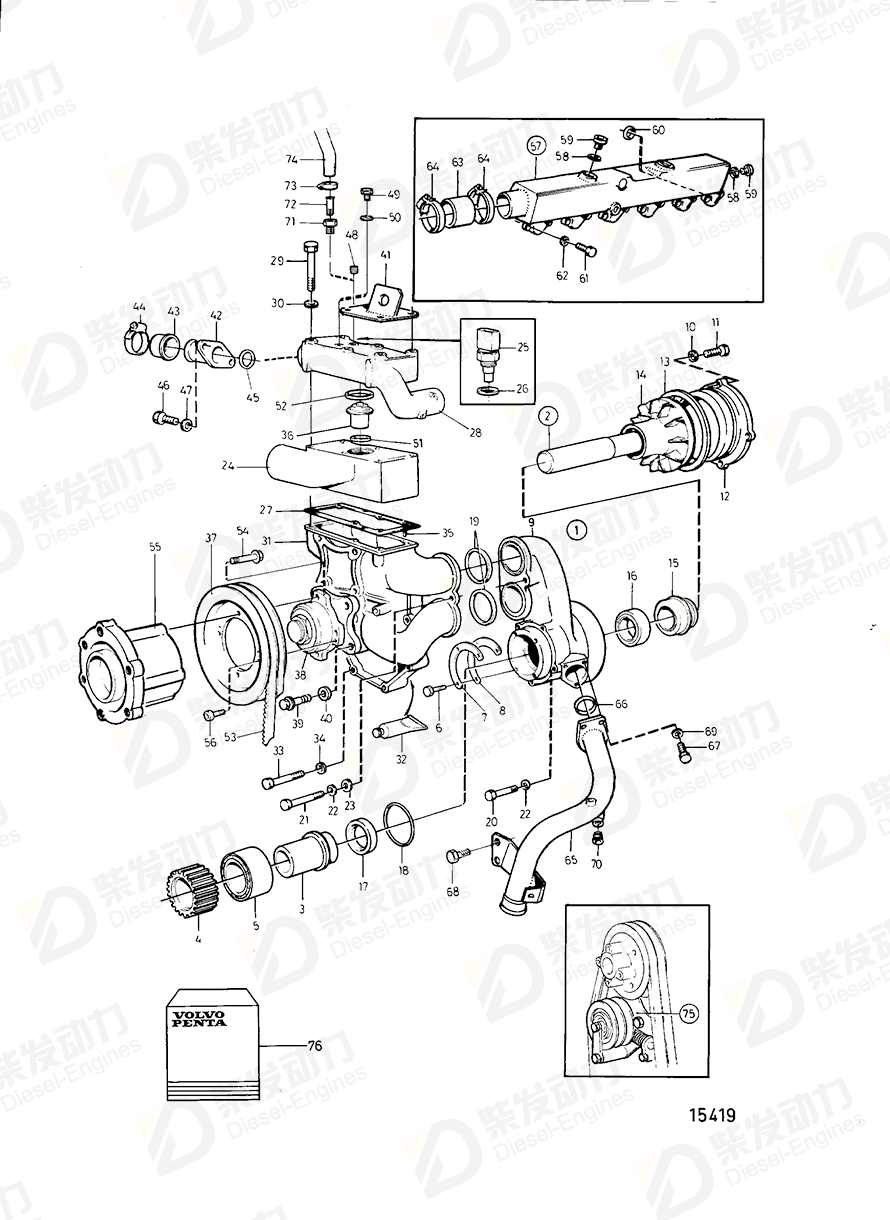

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 8149937 | 1 | SN2100298821- |
| 2 | Shaft | 1675947 | 1 | |
| 4 | Gear | 470265 | 1 | |
| 5 | Ball bearing | 181286 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 6 | Hexagon screw | 940100 | 3 | |
| 7 | Lock washer | 1545359 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 8 | Lock washer | 1545358 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 10 | Spring washer | 941906 | 4 | |
| 11 | Hexagon screw | 955513 | 4 | |
| 12 | Cover | 469418 | 1 | |
| 13 | O-ring | 925262 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 14 | Impeller | 1675944 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 15 | Sealing ring | 1676561 | 1 | Included in repair kit 276936 for water pump 20431484., (1675943) |
| 16 | Ball bearing | 184816 | 1 | (183894) |
| 17 | Sealing ring | 978293 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 18 | O-ring | 925257 | 1 | |
| 19 | O-ring | 1664473 | 2 | (925254) |
| 20 | Hexagon screw | 955542 | 4 | |
| 21 | Hexagon screw | 955535 | 1 | |
| 22 | Spring washer | 942336 | 5 | |
| 23 | Washer | 940097 | 1 | |
| 24 | Thermostat housing | 470396 | 1 | |
| 27 | Gasket | 423352 | 1 | |
| 28 | Thermostat housing, upper | 862338 | 1 | |
| 29 | Hexagon screw | 959798 | 6 | |
| 30 | Washer | 940097 | 2 | |
| 31 | Thermostat housing, lower | 478942 | 1 | |
| 32 | Sealant | 1161231 | 1 | 304ml |
| 32 | Sealant | 1161277 | 1 | 20g |
| 33 | Hexagon screw | 955535 | 5 | |
| 33 | Hexagon screw | 955541 | 2 | |
| 34 | Spring washer | 942336 | 7 | |
| 35 | Spring pin | 951973 | 2 | |
| 36 | Thermostat | 8149186 | 1 | 86°C |
| 37 | Pulley | 1675847 | 1 | |
| 38 | Fan hub | 1675786 | 1 | |
| 39 | Hexagon screw | 955535 | 4 | |
| 40 | Spring washer | 942336 | 4 | |
| 41 | Anchorage | 475888 | 1 | |
| 42 | Connecting pipe | 845435 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 43 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 44 | Hose clamp | 943475 | 1 | |
| 45 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 46 | Hexagon screw | 940135 | 2 | |
| 47 | Spring washer | 941907 | 2 | |
| 48 | Plug | 479977 | 2 | |
| 49 | Plug | 960632 | 2 | |
| 50 | Gasket | 11998 | 2 | |
| 51 | Sealing ring | 1544710 | 1 | |
| 52 | Sealing ring | 1544410 | 1 | |
| 54 | Flange screw | 947760 | 4 | M8x40mm |
| 55 | Fan hub | 1675852 | 1 | TWD1031VE |
| 56 | Six point socket scr | 969407 | 2 | |
| 57 | Water pipe | 479601 | 1 | (847512) |
| 57 | Coolant pipe | 847512 | 1 | |
| 58 | Gasket | 468463 | 1 | |
| 59 | Plug | 467366 | 1 | |
| 60 | O-ring | 423281 | 6 | |
| 61 | Hexagon screw | 955525 | 12 | |
| 62 | Spring washer | 941907 | 12 | |
| 63 | Radiator hose | 470464 | 1 | (468216) |
| 64 | Hose clamp | 943479 | 2 | |
| 65 | Connecting pipe | 847449 | 1 | |
| 66 | O-ring | 925092 | 1 | |
| 67 | Hexagon screw | 940135 | 3 | |
| 68 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 69 | Spring washer | 941907 | 3 | |
| 70 | Plug | 479977 | 2 | |
| 71 | Nipple | 479954 | 1 | (190130) |
| 72 | Nipple | 192555 | 1 | SN-XXXXXXXXXX/262417 |
| 76 | Repair kit, water pump | 276814 | 1 |
| Item | Part Name | Part No. |
| 15 | Sealing ring 1676561 | 1676561 |
| Details | |
| Engine model | TAD1030G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD1030V, TWD1031VE TAD1031GE TAD1032GE TAD1230G TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1231GE, TAD1232GE TD1030ME, TWD1030ME TD1030VE TD1210G TD1210G, TWD1210G, TWD1211G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121GP-87 TD121GP-87, TWD1211P TWD1031VE TWD1210G TWD1210P TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD1231VE |
| Application | Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Water Pump Water Pump and Thermostat Housing Water Pump and Thermostat Housing, Later Prod.: A Water Pump and Thermostat Housing, Later Prod.: B Water Pump and Thermostat Housing, Later Prod.: C Water Pump and Thermostat SNXXXXXXXXXX/211549-: A Water Pump and Thermostat SNXXXXXXXXXX/211549-: B Water Pump and Thermostat: A Water Pump and Thermostat: B Water Pump, Thermostat and Fan Bearing |
| Specification | |
| Descriptions | (1675943) Included in repair kit 276814 for water pump 1675945. Included in repair kit 276814 for water pump 1675945., (1675943) Included in repair kit 276936 for water pump 20431484. Included in repair kit 276936 for water pump 20431484., (1675943) Incuded in kit 276814., (1675943) |
