Sealing ring 3829317

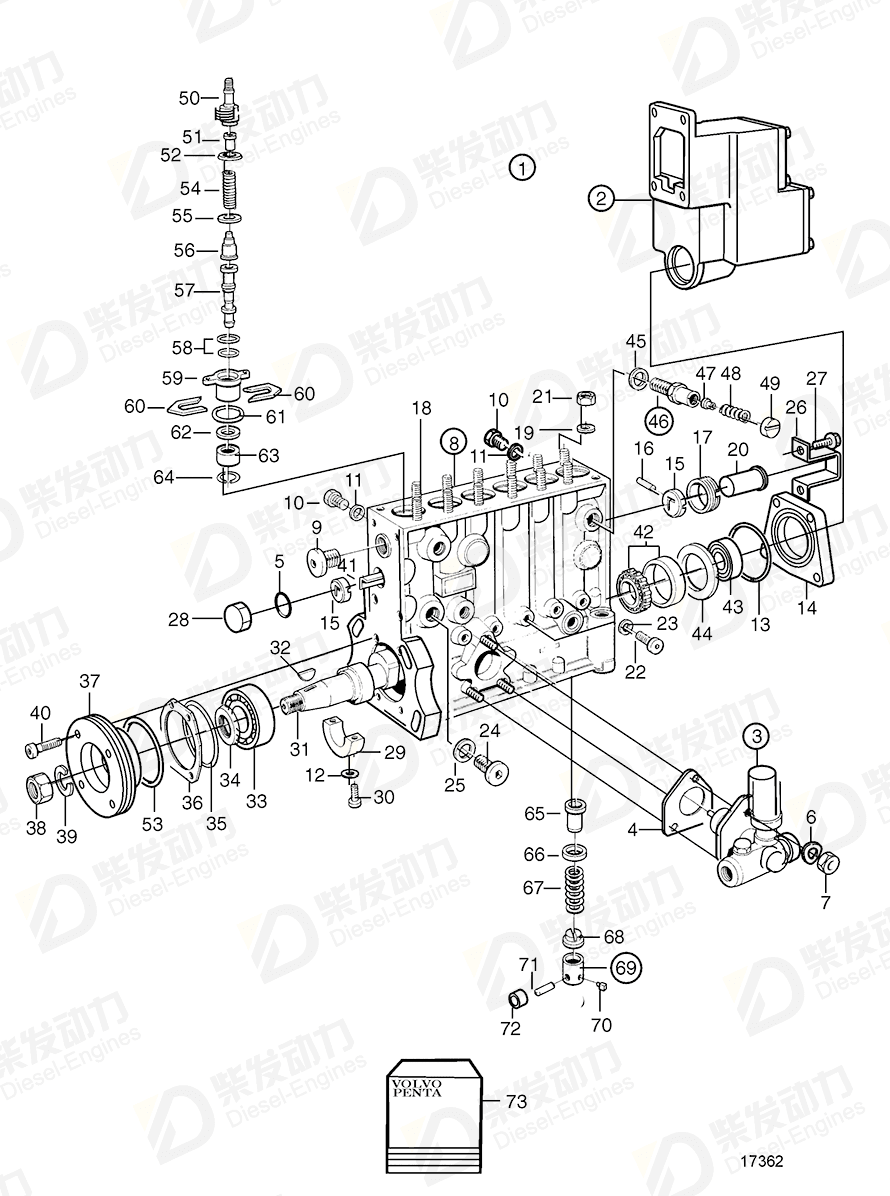

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803745 | 1 | |
| 1 | Injection pump | 3827139 | 1 | SN-XXXXXXXXXX/238318 |
| 2 | Actuator | 3827267 | 1 | (866167) |
| 3 | Feed pump | 244825 | 1 | |
| 4 | Gasket | 863370 | 1 | |
| 11 | Sealing ring | 239897 | 2 | |
| 23 | Gasket | 18836 | 6 | |
| 25 | Gasket | 240017 | 1 | Spec.867473 alt |
| 32 | Key | 35168 | 1 | |
| 34 | Sealing ring | 3829317 | 1 | |
| 35 | O-ring | 3829318 | 1 | |
| 45 | Gasket | 11996 | 1 | |
| 46 | Overflow valve | 3825154 | 1 | |
| 50 | Retainer | 243742 | 6 | |
| 51 | Spring disc | 3825004 | 6 | |
| 52 | O-ring | 240001 | 6 | |
| 54 | Compression spring | 1699454 | 6 | |
| 55 | Sealing washer | 239993 | 6 | |
| 56 | Delivery valve | 3829316 | 6 | |
| 57 | Pump element | 3828985 | 6 | |
| 58 | O-ring | 240422 | 12 | |
| 61 | Sealing ring | 11994488 | 6 | |
| 65 | Control sleeve | 3825008 | 6 | |
| 66 | Spring disc | 239984 | 6 | |
| 67 | Compression spring | 1699465 | 6 | |
| 68 | Spring disc | 244685 | 6 | (6211952) |
| 73 | Repair kit | 845240 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 34 | Sealing ring 3829317 | 3829317 |
| Details | |
| Application | Fuel Injection Pump, Components: 3827139 Fuel Injection Pump, Components: 3827212 Fuel Injection Pump, Components: 3832371 |
