Sealing ring 423057

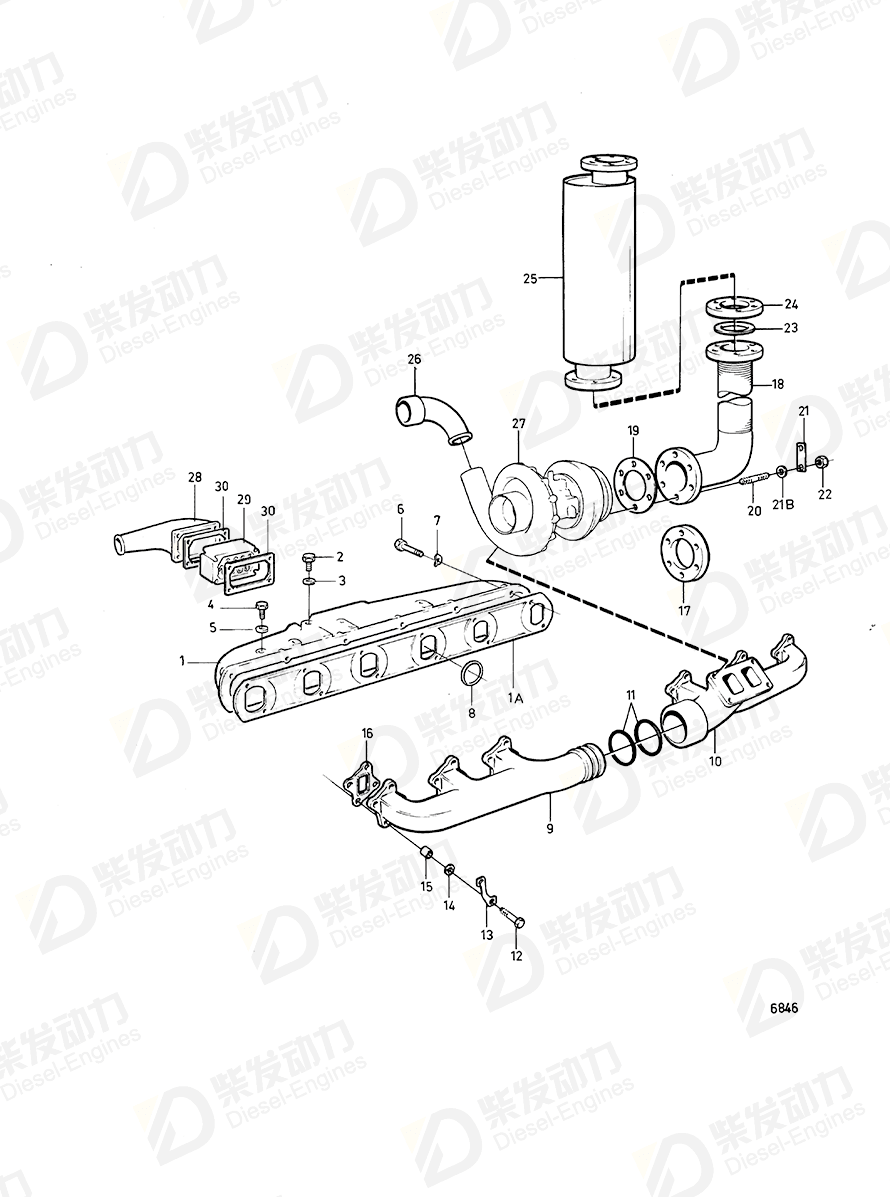

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 470497 | 1 | |
| 2 | Hexagon screw | 940113 | 2 | |
| 3 | Gasket | 947620 | 2 | (233321) |
| 4 | Plug | 16318 | 1 | |
| 4 | Plug | 191026 | 1 | |
| 5 | Gasket | 907132 | 1 | |
| 6 | Hexagon screw | 940161 | 12 | For engine with 40° angle of inclination, L=45mm |
| 7 | Spring washer | 941907 | 12 | |
| 8 | O-ring | 469830 | 6 | |
| 9 | Exhaust pipe | 468924 | 1 | |
| 10 | Exhaust pipe | 468925 | 1 | |
| 11 | Sealing ring | 423057 | 2 | |
| 12 | Hexagon screw | 955536 | 24 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 13 | Lock washer | 468646 | 12 | Not for TAD1230G |
| 14 | Washer | 941744 | 24 | |
| 15 | Spacer sleeve | 422217 | 24 | |
| 16 | Gasket | 470534 | 6 | Included in gasket kit. |
| 17 | Flange | 330287 | 1 | TD60B spec. 867618, 867648., Used when expansion tank 351579 is mounted, Replaced by 1pc 843088 and 8PCS 955365. |
| 18 | Exhaust hose, exhaust hose | 846308 | 1 | (821278) |
| 19 | Gasket | 424626 | 1 | |
| 20 | Stud | 953259 | 6 | |
| 21 | Tab washer | 15193 | 3 | |
| 22 | Hexagon nut | 191894 | 6 | |
| 23 | Gasket | 862594 | 1 | (807578) |
| 24 | Flange | 807625 | 1 | |
| 28 | Connecting pipe | 1660381 | 1 | |
| 29 | Starter element | 471867 | 1 | |
| 30 | Gasket | 424618 | 2 | |
| 21B | Washer | 960148 | 6 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| Item | Part Name | Part No. |
| 11 | Sealing ring 423057 | 423057 |
| Details | |
| Engine model | D120A TAD120CHC TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1230V TAD1231GE, TAD1232GE TD120A TD120AHC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HPP TD1210G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121G-87, TWD1230VE, TWD1231VE TD121GP-87 TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD1231VE |
| Application | Exhaust Manifold, High Mounted Turbo Exhaust Manifold, High Mounted Turbo: A Exhaust Manifold, High Mounted Turbo: B Exhaust Manifold, Low Mounted Turbocharger Exhaust Pipe and Installation Components Induction- and Exhaust Manifold Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B INDUCTION-AND EXHAUST MANIFOLD INDUCTION-AND EXHAUST MANIFOLD: A INDUCTION-AND EXHAUST MANIFOLD: B INDUCTION-AND EXHAUST MANIFOLD: TID121FP Repair Kits Repair Kits: A Repair Kits: B |
| Specification | |
| Descriptions | Included in gasket kit. |
