Sealing ring 465784

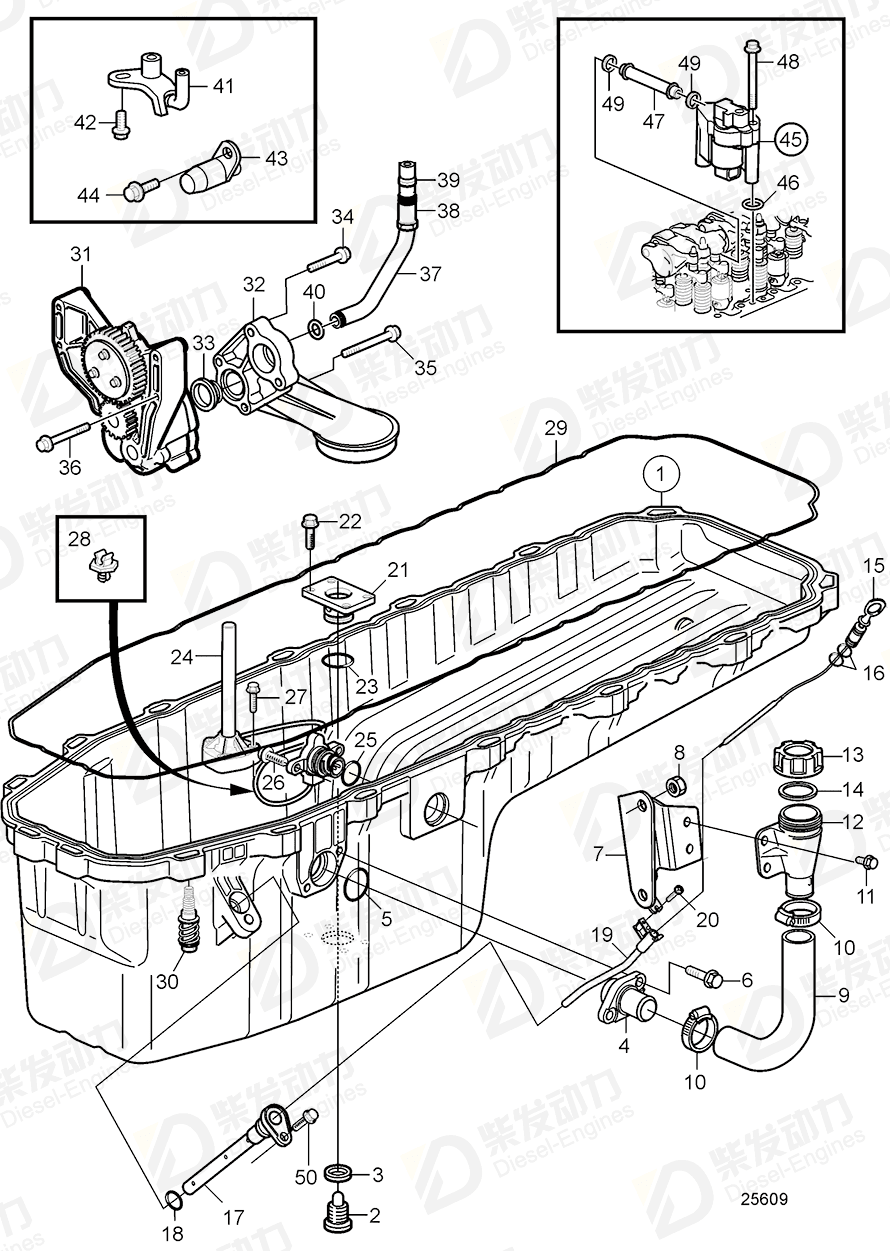

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pan | 20702520 | 1 | |
| 2 | Magnetic plug | 20571854 | 1 | |
| 3 | Sealing ring | 20579690 | 1 | |
| 4 | Connection pipe | 20462497 | 1 | |
| 5 | Sealing ring | 20555696 | 1 | (421629) |
| 6 | Flange screw | 946440 | 2 | |
| 7 | Bracket | 3807087 | 1 | |
| 8 | Flange lock nut | 977938 | 2 | |
| 9 | Hose | 3831383 | 1 | |
| 10 | Hose clamp | 994561 | 2 | |
| 11 | Flange screw | 945444 | 2 | |
| 12 | Oil filler pipe | 20808091 | 1 | |
| 13 | Oil filler cap | 20807510 | 1 | |
| 14 | Rubber washer | 20365079 | 1 | |
| 15 | Dipstick | 21839748 | 1 | |
| 16 | O-ring | 949187 | 2 | |
| 17 | Pipe | 20724256 | 1 | |
| 18 | O-ring | 949656 | 1 | |
| 19 | Pipe | 3807085 | 1 | |
| 20 | Six point socket scr | 975371 | 1 | |
| 21 | Retainer | 20586869 | 1 | |
| 22 | Flange screw | 966378 | 4 | |
| 23 | O-ring | 20586720 | 1 | |
| 24 | Sensor | 24424110 | 1 | Replaced by sender 21042447. |
| 25 | O-ring | 944126 | 1 | |
| 26 | Flange screw | 946934 | 2 | |
| 27 | Flange screw | 948356 | 3 | |
| 28 | Retainer | 20700754 | 3 | |
| 29 | Sealing strip | 20532272 | 1 | |
| 30 | Flange screw | 20463185 | 16 | Replaced by 20739547 |
| 31 | Oil pump | 8170261 | 1 | |
| 32 | Suction pipe | 8170878 | 1 | |
| 33 | Sealing ring | 465784 | 1 | |
| 34 | Flange screw | 965180 | 3 | |
| 35 | Flange screw | 968842 | 1 | L=110mm |
| 36 | Flange screw | 471734 | 4 | |
| 37 | Pressure pipe | 20411298 | 1 | |
| 40 | Sealing ring | 8170558 | 1 | |
| 41 | Piston cooling jet | 3155151 | 6 | |
| 42 | Flange screw | 966378 | 6 | |
| 43 | Nozzle, transmission | 8170583 | 1 | |
| 44 | Screw | 471586 | 1 | |
| 45 | Control valve | 21452473 | 1 | Replaced by 21596642 |
| 46 | Sealing ring | 20526428 | 1 | |
| 47 | Outlet pipe | 20734464 | 1 | |
| 48 | Flange screw | 3165142 | 2 | |
| 49 | Sealing ring | 1677370 | 2 | |
| 50 | Flange screw | 966378 | 1 |
| Item | Part Name | Part No. |
| 33 | Sealing ring 465784 | 465784 |
| Details | |
| Engine model | TAD1240GE TAD1240GE, TAD1241GE, TAD1242GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD730G TAD730P TAD730V TAD740GE TAD741GE TD610G TD610G, TWD610G TD610M TD610V TD610V, TWD610V TD61A, TD61AW TD630ME TD630ME, TWD630ME TD630VE TD640VE TD710G TD710G, TWD710G TD71A TD730ME TD730VE TID71A TWD1240VE, TAD1241VE, TAD1242VE TWD610G TWD610P TWD610V TWD630ME TWD630VE TWD710G TWD710P TWD710V TWD730ME, TWD731ME TWD731VE TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Lubricating System Lubricating System, SN-2012427926 Lubricating System, SN2012427927- Oil Pump, Components Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C |
| Specification | |
| Descriptions | D=26mm Included in gasket kit., D=26mm |
