Sealing ring 469205

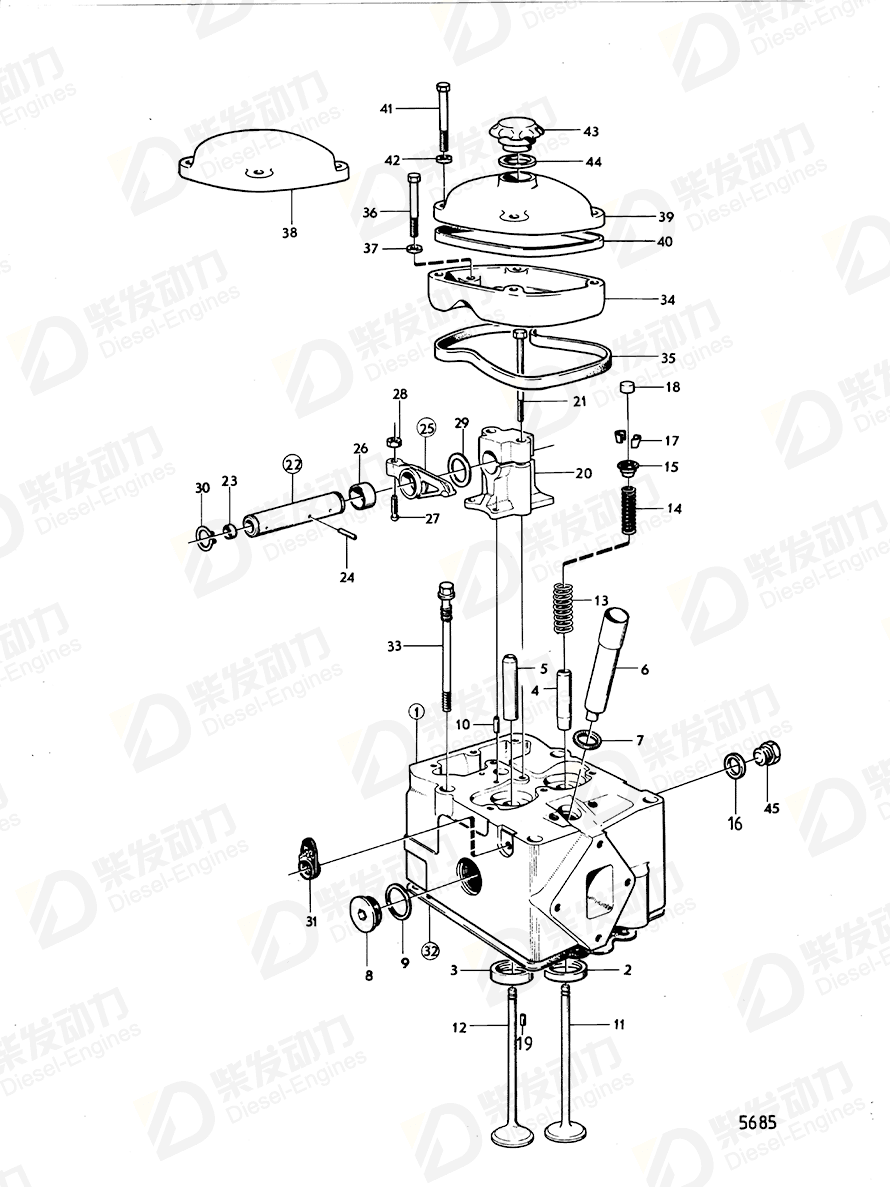

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803037 | 6 | MO123539/XXXXX-, (467712) |
| 2 | Valve seat, intake | 467474 | 6 | Std |
| 2 | Valve seat, intake | 467590 | 6 | 0.20mm o.s |
| 3 | Valve seat, exhaust | 467475 | 6 | Std |
| 3 | Valve seat, exhaust | 467591 | 6 | 0.20mm o.s |
| 4 | Valve guide, intake | 422320 | 6 | |
| 5 | Valve guide, exhaust | 1545135 | 6 | (421297) |
| 6 | Copper sleeve kit | 467417 | 6 | |
| 7 | Sealing ring | 469205 | 6 | |
| 8 | Plug | 467365 | 12 | |
| 9 | Gasket | 468461 | 12 | |
| 10 | Pin | 950543 | 12 | |
| 11 | Inlet valve | 1545290 | 6 | (467502) MO124040/XXXX |
| 12 | Exhaust valve | 467682 | 6 | MO124040/XXXXX- |
| 13 | Valve spring | 467334 | 12 | Late type |
| 14 | Valve spring | 467335 | 12 | Late type |
| 15 | Valve spring washer, upper | 467506 | 12 | |
| 16 | Gasket | 18666 | 1 | |
| 17 | Valve cotter | 468305 | 24 | |
| 18 | Valve cap | 469365 | 12 | (417133) |
| 19 | Pin | 950543 | 12 | |
| 20 | Bearing bracket | 422018 | 6 | |
| 21 | Flange screw | 422428 | 12 | |
| 22 | Rocker arm shaft | 422019 | 6 | |
| 23 | Cap plug | 946778 | 12 | |
| 24 | Pin | 950499 | 6 | |
| 25 | Rocker arm | 422063 | 12 | |
| 26 | Bushing | 422066 | 12 | |
| 27 | Ball stud | 423058 | 12 | |
| 28 | Hexagon nut | 940175 | 12 | |
| 29 | Washer | 941488 | 12 | |
| 30 | Retaining ring | 914459 | 12 | |
| 31 | Sealing ring | 423139 | 6 | |
| 32 | Cylinder head gasket | 275551 | 6 | MO-19032/XXXXX- |
| 32 | Sealing ring | 422413 | 6 | D=11mm |
| 32 | Sealing ring | 422414 | 12 | D=32mm |
| 32 | Sealing ring | 422415 | 12 | D=18mm |
| 33 | Flange screw | 467918 | 24 | (422086) |
| 34 | Cover, lower | 423142 | 6 | |
| 35 | Gasket | 423145 | 6 | |
| 36 | Hexagon screw | 940159 | 12 | |
| 37 | Washer | 955894 | 12 | |
| 38 | Cover, upper, upper | 423143 | 5 | |
| 39 | Cover | 423144 | 1 | |
| 40 | Gasket | 423146 | 6 | |
| 41 | Hexagon screw | 955530 | 24 | |
| 42 | Gasket | 942580 | 24 | |
| 43 | Oil filler cap | 420292 | 1 | |
| 44 | Gasket | 940096 | 1 | |
| 45 | Plug | 941876 | 1 |
| Item | Part Name | Part No. |
| 7 | Sealing ring 469205 | 469205 |
| Details | |
| Engine model | D100A, D100B, TD100A D100A, TD100A D100B D100BHC D100BHC, D100BRC D100BRC D120A D42A D70B D70CHC D70CRC TAD120AHC TD100AHC TD100AHC, TD100ARC TD100ARC TD100CHC TD100CRC TD120A TD120AHC TD120ARC TD120C TD60A TD60A, TD60B TD60D, TD60D-83, TID60D, TID60DG TD70B TD70CHC TD70CRC TID120FG |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Cylinder Head: D REPAIR KIT Repair Kit: A Repair Kit: B Repair Kits Repair Kits, Repair Kits,: A Repair Kits,: B REPAIR KITS: A REPAIR KITS: B REPAIR KITS: C REPAIR KITS: D Repair Kits: TID100-87 |
| Specification | |
| Descriptions | Early type |
