Sealing ring 469455

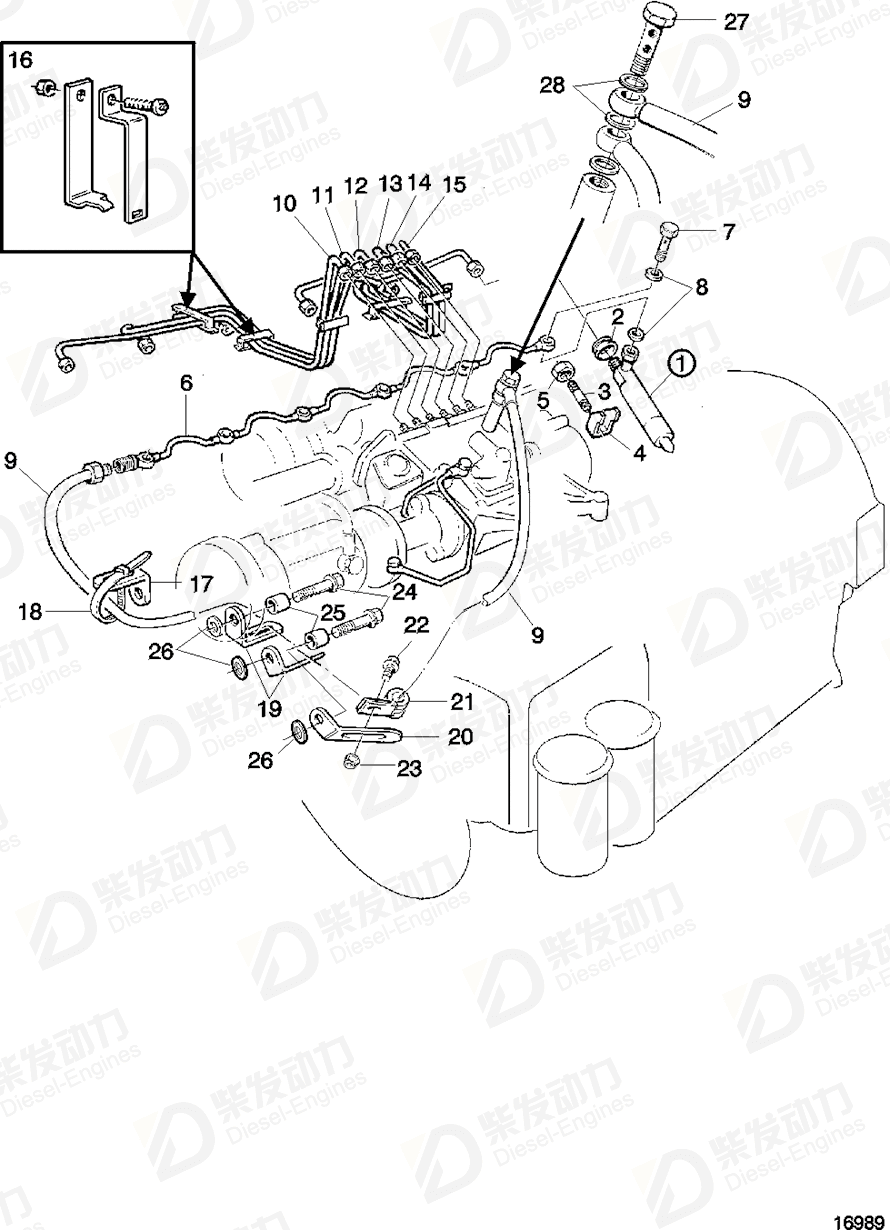

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 3803398 | 6 | E.U=3803398 |
| 1 | Injector | 8194094 | 6 | E.U=3803398 |
| 2 | Sealing ring | 469455 | 6 | |
| 3 | Stud | 1545022 | 6 | |
| 4 | Yoke | 469797 | 6 | (466399) |
| 5 | Flange nut | 971095 | 6 | Alt |
| 6 | Leak-off pipe | 1545081 | 1 | |
| 7 | Hollow screw | 74033 | 6 | |
| 8 | Gasket | 947620 | 12 | (233321) |
| 9 | Fuel pipe | 3979082 | 1 | |
| 10 | Pressure pipe | 20363731 | 1 | Cyl 1 |
| 11 | Pressure pipe | 20363732 | 1 | Cyl 2 |
| 12 | Pressure pipe | 20363733 | 1 | Cyl 3 |
| 13 | Pressure pipe | 20363734 | 1 | Cyl 4 |
| 14 | Pressure pipe | 20363735 | 1 | Cyl 5 |
| 15 | Pressure pipe | 20363736 | 1 | Cyl 6 |
| 16 | Attaching clamp | 8194327 | 2 | 2-pipes |
| 16 | Clamp | 8194328 | 4 | 3-pipes |
| 17 | Bracket | 965553 | 1 | |
| 18 | Cable tie | 948211 | 1 | |
| 19 | Bracket | 965552 | 2 | |
| 20 | Bracket | 965571 | 1 | |
| 21 | Clamp | 952626 | 1 | |
| 22 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 23 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 24 | Hexagon screw | 940161 | 3 | For engine with 40° angle of inclination, L=45mm |
| 25 | Spacer washer | 948871 | 3 | For 946671 |
| 26 | Washer | 955894 | 3 | |
| 27 | Hollow screw | 978197 | 1 | |
| 28 | Gasket | 969011 | 3 |
| Item | Part Name | Part No. |
| 2 | Sealing ring 469455 | 469455 |
| Details | |
| Engine model | DH10A TAD1030G TAD1030GE TAD1030V TAD1031GE TAD1032GE TAD121CHC TAD1230G TAD1230P TAD1230V TAD1231GE, TAD1232GE TAD730G TAD730P TAD730V TAD740GE TAD741GE TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030VE TD120HP-86 TD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG, TD121GGP TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD60B TD610G TD610G, TWD610G TD610M TD610V TD61A TD61ACE TD61AG TD61AP TD61AW TD630ME TD630VE TD640VE TD70G TD710G, TWD710G TD71A TD71A, TID71A, TWD710V TD71ACE TD71AG TD71AP TD71AW TD730ME TD730VE TD730VE, TWD731VE THD102KB THD102KD TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID100KPB-87 TID121FG TID121K TID121K, TID121KG, TID121KP TID121K-87 TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG TID121LG, TID121LP TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TID61AG TID71A TID71AG TID71AP TWD1030ME TWD1031VE TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE TWD1230VE, TWD1231VE TWD1231VE TWD610G TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD710V TWD730ME TWD730ME, TWD731ME TWD731ME TWD731VE TWD740GE TWD740GE, TAD740GE TWD740VE |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Fuel Injector and Delivery Pipes Fuel Injector and Delivery Pipes SN-2071084080 Fuel Injector and Delivery Pipes SN-2071084080: A Fuel Injector and Delivery Pipes SN-2071084080: B Fuel Injector and Delivery Pipes SN2071084081-: A Fuel Injector and Delivery Pipes SN2071084081-: B Fuel Injector and Delivery Pipes: A Fuel Injector and Delivery Pipes: B Fuel Injector and Delivery Pipes: C Fuel Pipes-Fuel Injectors Spec.867578 Fuel System Fuel System: 846359 Fuel System: 862183 Fuel System: 863451 Fuel System: A Fuel System: B Fuel System: C Fuel System: D Fuel System: TD100GGP-87 Fuel System: TD100HPB87 Fuel System: TD61AGP Fuel System: TD61APB Fuel System: TD71AGP Fuel System: TD71APB FUEL SYSTEM: TID121FP Fuel System: TID61AGP Fuel System: TID71AGP Fuel System: TID71APB Injectors, Pressure Pipes and Leak-off Line Injectors, Pressure Pipes and Leak-off Line, SN1201090022- Injectors, Pressure Pipes and Leak-off Line: A Injectors, Pressure Pipes and Leak-off Line: B Injectors, Pressure Pipes and Leak-off Line: C Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D Repair Kits: TD100-87 |
| Specification | |
| Descriptions | (948965) |
