Sealing ring 469952

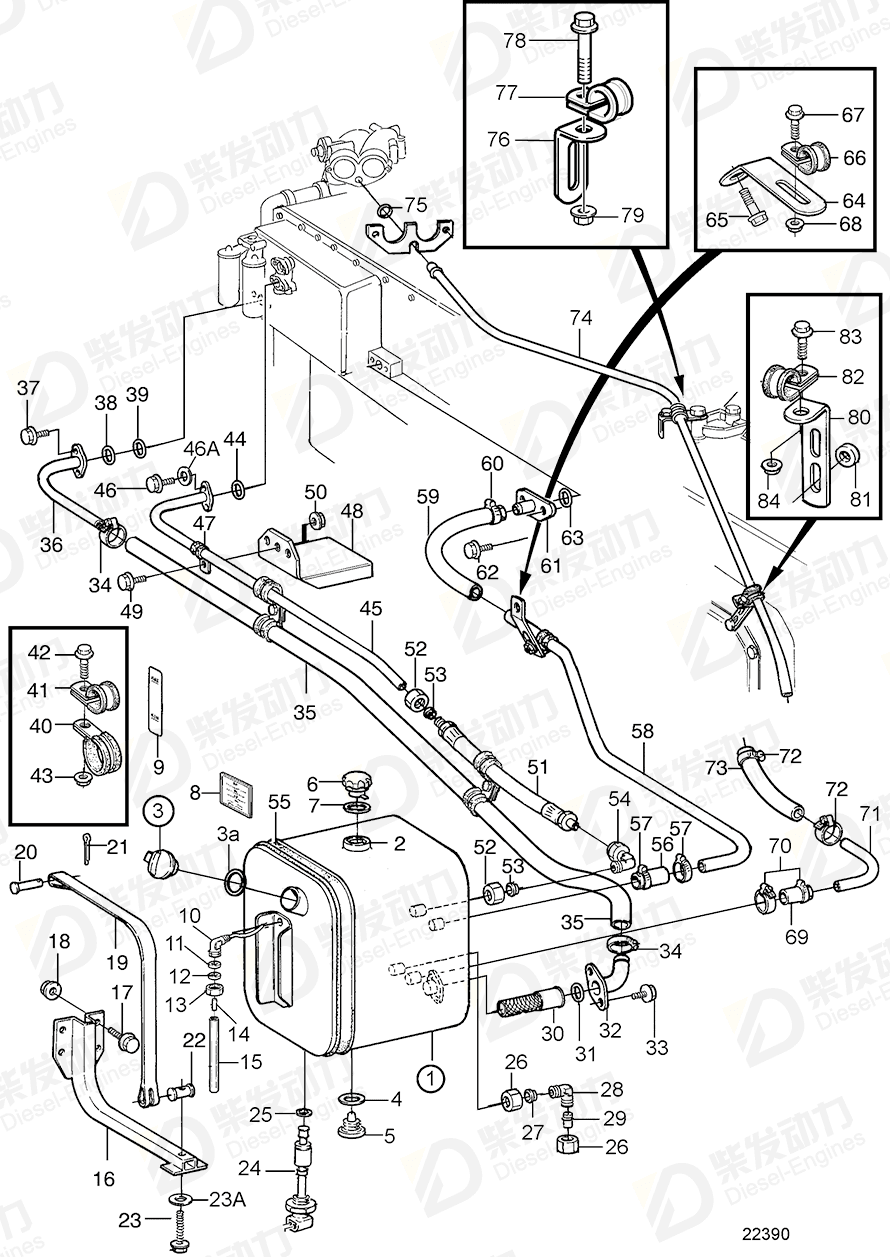

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil tank | 9521802 | 1 | |
| 3 | Oil filler cap | 1275403 | 1 | |
| 4 | Gasket | 949329 | 1 | |
| 5 | Magnetic plug | 949175 | 1 | |
| 6 | Breather cap | 739846 | 1 | |
| 7 | Gasket | 1275379 | 1 | |
| 10 | Nipple | 3033288 | 2 | |
| 11 | Washer | 944472 | 2 | |
| 12 | Gasket | 944474 | 2 | |
| 13 | Nut | 366934 | 2 | |
| 14 | Float | 3018430 | 1 | |
| 15 | Oil pipe | 1190643 | 1 | |
| 16 | Bracket | 3030092 | 2 | |
| 17 | Flange screw | 945444 | 8 | |
| 18 | Flange lock nut | 948645 | 8 | |
| 19 | Tensioning band | 9515386 | 2 | |
| 20 | Clevis pin | 964864 | 2 | |
| 21 | Split pin | 907849 | 2 | |
| 22 | Stub | 8150742 | 2 | |
| 23 | Hex. socket screw | 8150741 | 2 | |
| 26 | Fitting nut | 956988 | 2 | |
| 27 | Ferrule | 956974 | 1 | |
| 28 | Elbow nipple | 957074 | 1 | |
| 29 | Plug | 964092 | 1 | |
| 30 | Oil strainer | 3028663 | 1 | |
| 31 | Rubber ring | 1195358 | 1 | |
| 32 | Flange connection | 3034211 | 1 | |
| 33 | Flange screw | 945444 | 2 | |
| 34 | Hose clamp | 994560 | 2 | |
| 35 | Hose | 9516185 | 1 | |
| 36 | Suction pipe | 425457 | 1 | For THD102KB and THD102KD |
| 36 | Suction pipe | 3826448 | 1 | For DH10A. |
| 37 | Flange screw | 946173 | 2 | |
| 38 | Sealing ring | 469354 | 1 | |
| 39 | Rubber ring | 469845 | 1 | |
| 40 | Clamp | 952642 | 2 | |
| 41 | Clamp | 952633 | 1 | D = 22.2 MM LATE TYPE |
| 41 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 42 | Flange screw | 946934 | 2 | |
| 43 | Flange lock nut | 949278 | 2 | |
| 44 | Sealing ring | 469479 | 1 | |
| 45 | Oil return pipe | 425488 | 1 | |
| 46 | Hexagon screw | 955525 | 2 | |
| 47 | Clamp | 952633 | 1 | D = 22.2 MM LATE TYPE |
| 48 | Bracket | 425487 | 1 | For THD102KB and THD102KD |
| 49 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 50 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 51 | Hose assembly | 469918 | 1 | |
| 52 | Fitting nut | 956988 | 2 | |
| 53 | Ferrule | 956974 | 2 | |
| 54 | Elbow nipple | 944258 | 1 | |
| 55 | Strip | 1075220 | 1 | |
| 56 | Hose | 973972 | 1 | |
| 57 | Hose clamp | 994560 | 2 | |
| 58 | Pipe | 9516980 | 1 | |
| 59 | Hose | 973972 | 1 | |
| 60 | Hose clamp | 994560 | 2 | |
| 61 | Flange connection | 3035185 | 1 | |
| 62 | Flange screw | 945444 | 2 | |
| 63 | Sealing ring | 469952 | 1 | |
| 64 | Bracket | 965577 | 1 | |
| 65 | Flange screw | 946440 | 1 | |
| 66 | Clamp | 952635 | 1 | |
| 67 | Flange screw | 946934 | 1 | |
| 68 | Flange lock nut | 949278 | 1 | |
| 69 | Radiator hose | 3031444 | 1 | |
| 70 | Hose clamp | 994559 | 2 | |
| 71 | Coolant pipe | 9958674 | 1 | |
| 72 | Hose clamp | 994559 | 2 | |
| 73 | Radiator hose | 3031444 | 1 | |
| 74 | Tube | 191619 | 1 | |
| 75 | Sealing ring | 1547252 | 1 | |
| 76 | Bracket | 965552 | 1 | |
| 77 | Clamp | 952633 | 1 | D = 22.2 MM LATE TYPE |
| 77 | Clamp | 952639 | 1 | |
| 78 | Flange screw | 946934 | 1 | |
| 79 | Flange lock nut | 949278 | 1 | |
| 80 | Bracket | 965558 | 1 | |
| 81 | Spacer washer | 949873 | 1 | |
| 82 | Clamp | 952633 | 1 | D = 22.2 MM LATE TYPE |
| 83 | Flange screw | 946934 | 1 | |
| 84 | Flange lock nut | 949278 | 1 | |
| 23A | Washer | 976944 | 2 | |
| 46A | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 63 | Sealing ring 469952 | 469952 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB THD102KB THD102KD |
| Application | Lubricating Oil Tank Repair Kits: A Repair Kits: B |
