Sealing ring 785557

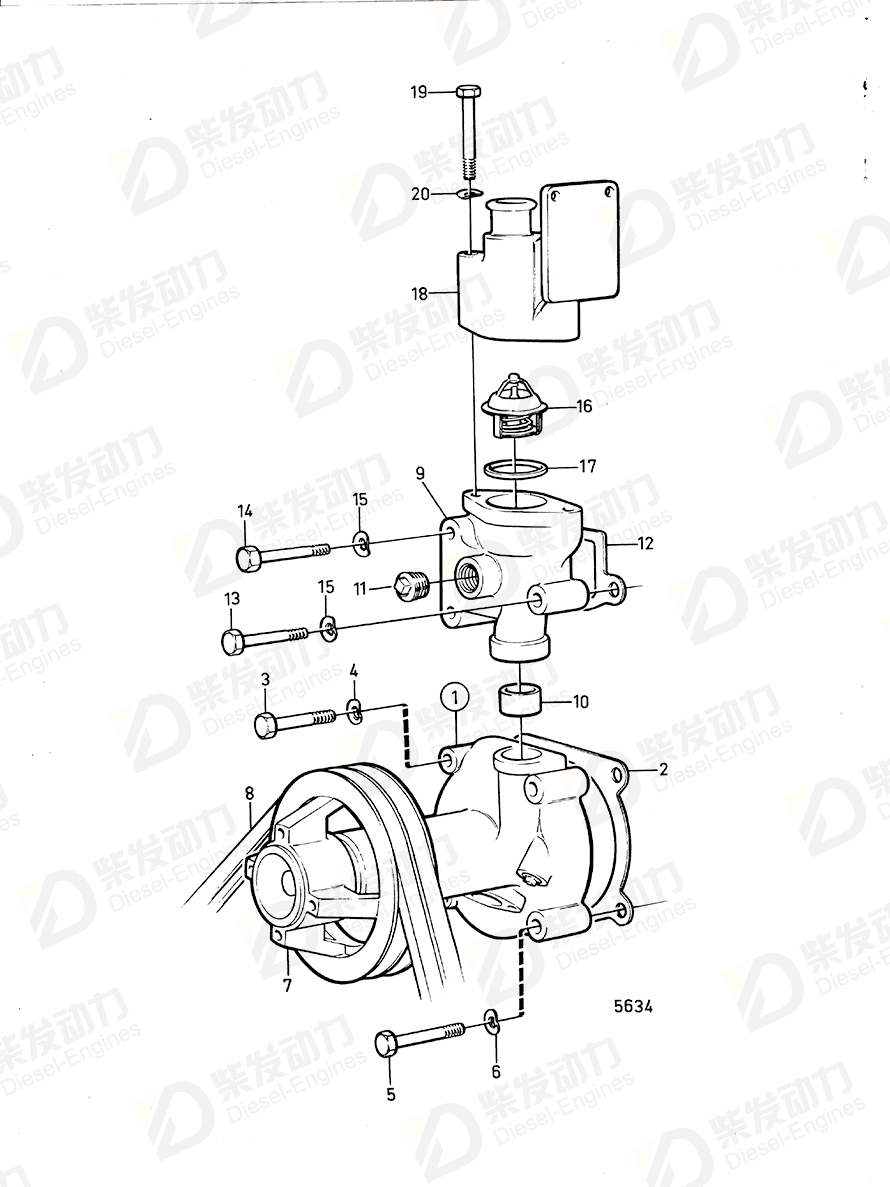

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 787186 | 1 | WATER PUMP SHAFT LENGHT=203 MM., REPL BY 787284 |
| 1 | Water pump | 787284 | 1 | D42A PP SPEC. 16053, 867638. |
| 2 | Gasket | 785612 | 1 | |
| 3 | Hexagon screw | 955530 | 1 | |
| 4 | Spring washer | 941907 | 1 | |
| 5 | Hexagon screw | 940136 | 1 | |
| 5 | Hexagon screw | 955526 | 5 | MD70BK spec 867116 MOXXXX/9685- |
| 6 | Spring washer | 941907 | 5 | |
| 8 | V-belt | 958365 | 1 | SPEC. 867131., D42A PP SPEC. 16053, 867638., L = 1250 MM |
| 8 | V-belt | 958369 | 1 | SPEC.9969, 867113., L = 1350 MM |
| 8 | V-belt | 958374 | 1 | SPECIAL MODEL,WATER PUMP SHAFT LENGHT=153 MM., L = 1475 MM |
| 9 | Housing | 785748 | 1 | |
| 9 | Thermostat housing | 787900 | 1 | D42A PP SPEC. 16053, 867638 |
| 10 | Sealing ring | 785556 | 1 | |
| 11 | Plug | 192154 | 1 | MO 21083/XXXXX- |
| 11 | Plug | 952358 | 1 | MO-21082/XXXXX |
| 12 | Gasket | 785773 | 1 | |
| 13 | Hexagon screw | 940156 | 1 | |
| 14 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 14 | Hexagon screw | 955541 | 1 | |
| 15 | Spring washer | 942336 | 3 | |
| 16 | Thermostat kit | 875786 | 1 | |
| 17 | Sealing ring | 785557 | 1 | |
| 18 | Tube | 787022 | 1 | |
| 19 | Hexagon screw | 955539 | 2 | |
| 19 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 20 | Spring washer | 942336 | 2 |
| Item | Part Name | Part No. |
| 17 | Sealing ring 785557 | 785557 |
| Details | |
| Engine model | D42A TD45B |
| Application | REPAIR KIT Repair Kit: A Repair Kit: B THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B |
