Sealing ring 831622

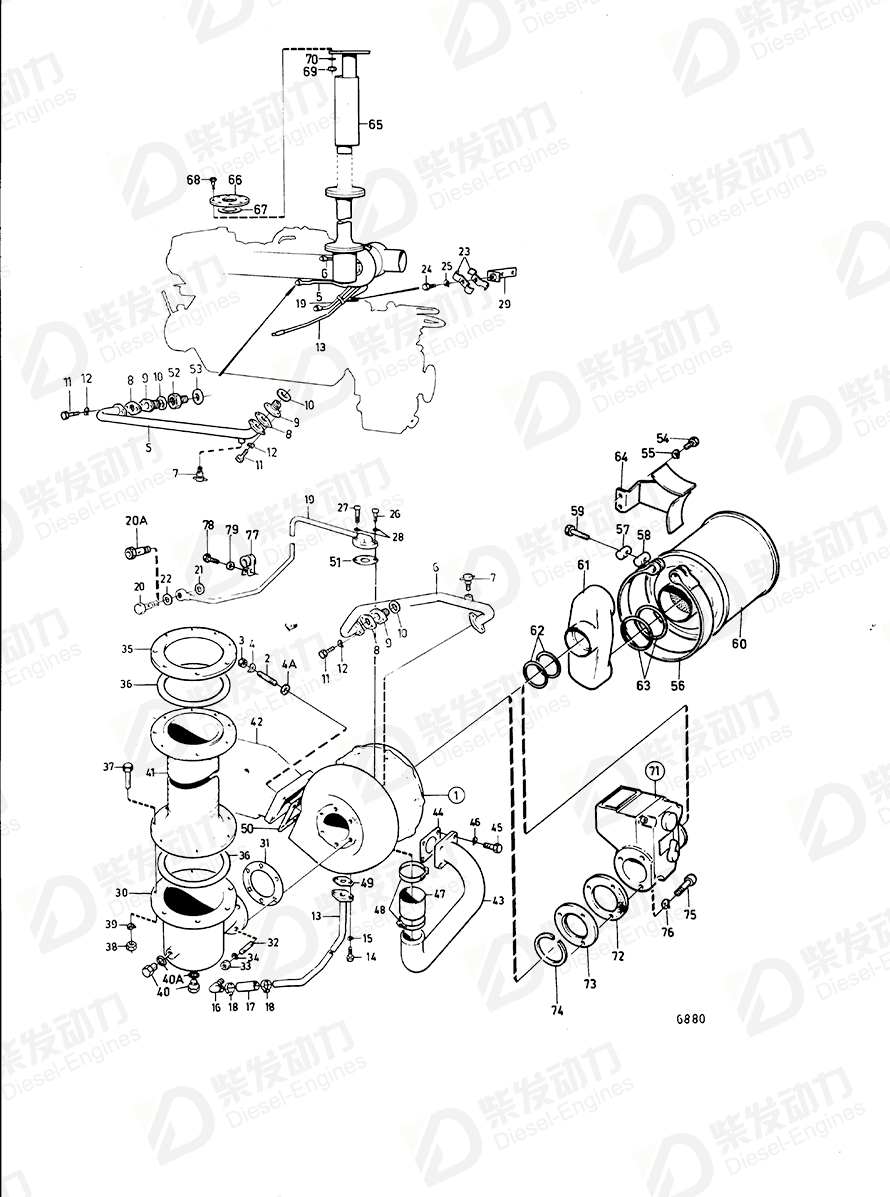

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 846241 | 1 | |
| 1 | Turbocharger | 3802018 | 1 | |
| 2 | Stud | 945851 | 4 | |
| 3 | Hexagon nut | 191894 | 4 | |
| 4 | Spring washer | 942336 | 4 | |
| 5 | Coolant pipe | 848141 | 1 | |
| 6 | Coolant pipe | 848142 | 1 | |
| 7 | Shut-off cock | 949918 | 2 | (82745) |
| 8 | Sealing ring | 831622 | 4 | |
| 9 | Nipple | 847492 | 4 | |
| 10 | Gasket | 947628 | 4 | |
| 11 | Hexagon screw | 955271 | 8 | |
| 12 | Spring washer | 941906 | 8 | |
| 13 | Oil feed pipe | 822572 | 1 | |
| 14 | Hexagon screw | 940115 | 2 | |
| 15 | Spring washer | 942336 | 2 | |
| 16 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 17 | Hose | 466328 | 1 | |
| 18 | Hose clamp | 994559 | 2 | |
| 19 | Oil pressure pipe | 822571 | 1 | |
| 20 | Hollow screw | 942007 | 1 | (954394) |
| 21 | Gasket | 942703 | 1 | |
| 22 | Gasket | 11998 | 1 | |
| 23 | Clamp | 820851 | 2 | Replaced by 1pc 837555, 1pc 867553, 2pcs 955295, 2pcs 941907, 1pc 837554, 4PCS 924079, 1pc 842378, 1pc 466327, 2pcs 961672, 1pc 837557, 1pc 837556, 1pc 837868, 1pc 837810. |
| 24 | Hexagon screw | 955512 | 1 | |
| 25 | Spring washer | 941906 | 1 | |
| 26 | Hex. socket screw | 956584 | 1 | L=25mm |
| 27 | Hex. socket screw | 956585 | 1 | L=32mm |
| 28 | Spring washer | 942336 | 2 | |
| 29 | Bracket | 822625 | 1 | |
| 30 | Exhaust pipe elbow | 842423 | 1 | |
| 31 | Gasket | 424626 | 1 | |
| 32 | Stud | 953259 | 6 | |
| 33 | Hexagon nut | 191894 | 6 | |
| 34 | Spring washer | 942336 | 6 | |
| 35 | Weld flange | 836887 | 1 | |
| 36 | Gasket | 862593 | 2 | |
| 37 | Hexagon screw | 955592 | 16 | |
| 38 | Hexagon nut | 955829 | 16 | Pusher type, For tropic radiator |
| 39 | Spring washer | 941912 | 16 | |
| 40 | Plug | 914392 | 2 | |
| 41 | Exhaust hose | 836880 | 1 | L=590mm |
| 43 | Intake bend | 837481 | 1 | |
| 44 | Gasket | 862588 | 1 | |
| 45 | Hex. socket screw | 956570 | 4 | |
| 46 | Spring washer | 941907 | 4 | |
| 47 | Hose | 470327 | 1 | |
| 48 | Hose clamp | 1544731 | 2 | For THD102KB, THD102KD |
| 49 | Gasket | 1543360 | 1 | |
| 4A | Washer | 940097 | 4 | |
| 50 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 51 | Plane gasket | 420641 | 1 | |
| 52 | Plug | 823369 | 1 | See group 2B |
| 53 | Gasket | 469328 | 1 | |
| 54 | Hexagon screw | 955588 | 2 | |
| 55 | Spring washer | 941912 | 2 | |
| 56 | Tensioning band | 821028 | 2 | |
| 57 | Clevis pin, threaded | 31404 | 2 | |
| 58 | Pin | 31405 | 2 | |
| 59 | Hexagon screw | 31406 | 2 | |
| 60 | Air filter | 842280 | 2 | |
| 61 | Connecting pipe | 842853 | 1 | |
| 62 | O-ring | 925078 | 2 | |
| 63 | O-ring | 925082 | 4 | |
| 64 | Bracket | 842850 | 1 | |
| 65 | Silencer | 836257 | 1 | |
| 66 | Weld flange | 846414 | 2 | |
| 67 | Gasket | 862977 | 2 | |
| 69 | Hexagon nut | 955785 | 16 | |
| 70 | Spring washer | 941912 | 16 | |
| 72 | Gasket | 862590 | 1 | (843718) |
| 73 | Attaching ring | 843704 | 1 | ÅKERMAN. |
| 74 | Clamping ring | 843703 | 1 | ÅKERMAN. |
| 75 | Hex. socket screw | 959223 | 2 | L = 30 MM |
| 75 | Hex. socket screw | 959233 | 1 | When emergency stop is mounted., L=80mm |
| 76 | Spring washer | 941907 | 3 | |
| 77 | Clamp | 940374 | 2 | |
| 78 | Hex. socket screw | 956570 | 2 | |
| 79 | Washer | 955894 | 2 | |
| 20A | Hollow screw | 942008 | 1 | |
| 40A | Gasket | 947626 | 2 |
| Item | Part Name | Part No. |
| 8 | Sealing ring 831622 | 831622 |
| Details | |
| Engine model | TAD121CHC TD121CHC TD121CRC |
| Application | Induction and Exhaust System Induction and Exhaust System: A Induction and Exhaust System: B |
