Sealing ring 846458

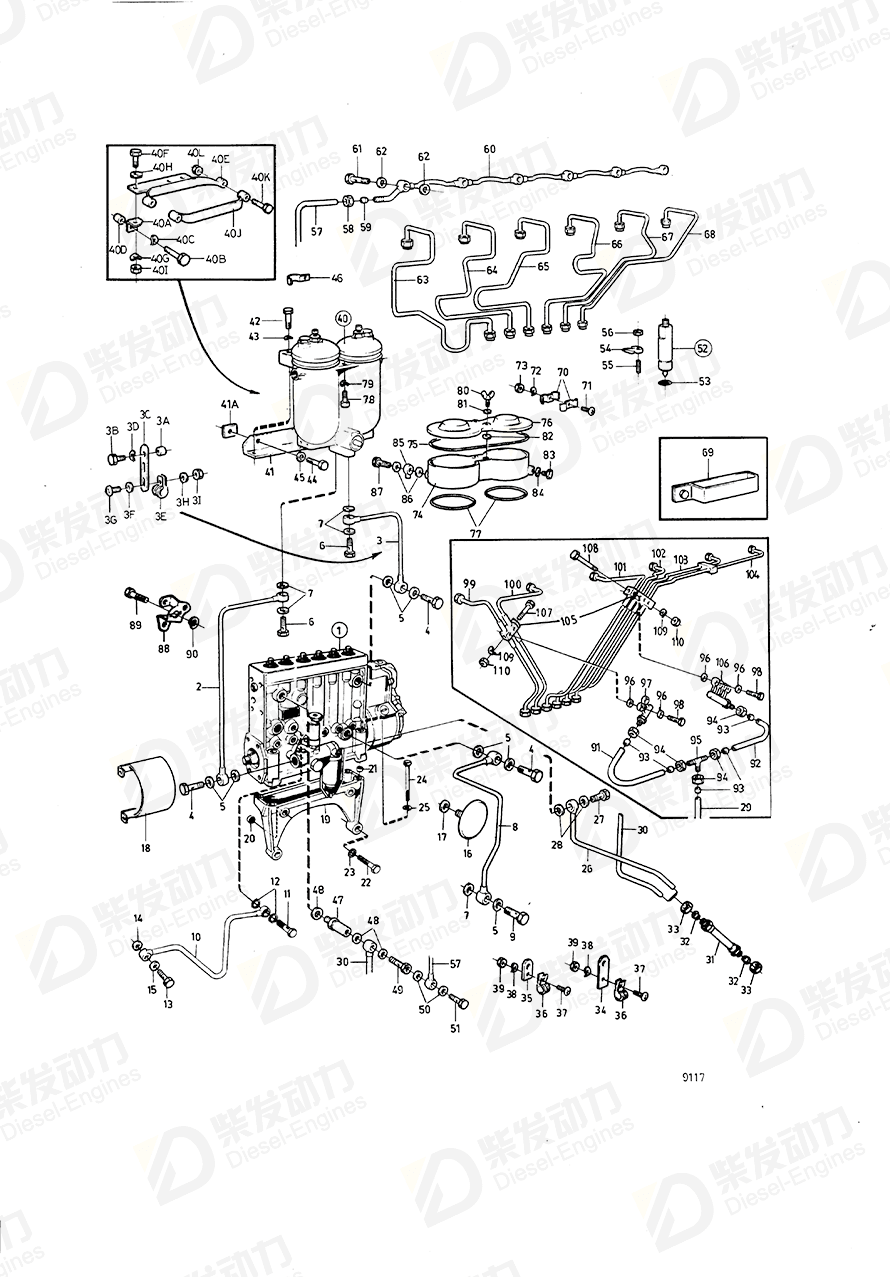

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 846806 | 1 | Repl by 849194 |
| 1 | Injection pump | 849194 | 1 | |
| 1 | Injection pump | 3803765 | 1 | |
| 2 | Fuel pipe | 847028 | 1 | |
| 3 | Fuel pipe | 847029 | 1 | |
| 4 | Hollow screw | 25167 | 3 | |
| 5 | Gasket | 969011 | 7 | |
| 6 | Hollow screw | 26013 | 2 | AQ115A MOXXXX/86909-. |
| 7 | Gasket | 947624 | 5 | |
| 8 | Return pipe | 422246 | 1 | |
| 9 | Hollow screw | 942007 | 1 | (954394) |
| 10 | Oil feed pipe | 422245 | 1 | |
| 11 | Hollow screw | 48634 | 1 | |
| 12 | Gasket | 947281 | 2 | |
| 13 | Hollow screw | 942081 | 1 | |
| 14 | Gasket | 957175 | 1 | |
| 15 | Gasket | 957175 | 1 | |
| 16 | Pressure equalizer | 477173 | 1 | (466398) |
| 17 | Gasket | 969011 | 1 | |
| 19 | Bracket | 468558 | 1 | |
| 20 | Guide sleeve | 423161 | 2 | |
| 21 | Guide sleeve | 417588 | 1 | |
| 22 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 23 | Spring washer | 940280 | 4 | |
| 24 | Hexagon screw | 940156 | 4 | |
| 25 | Washer | 190509 | 4 | |
| 26 | Fuel pipe | 845712 | 1 | |
| 27 | Hollow screw | 25167 | 1 | |
| 28 | Gasket | 969011 | 2 | |
| 29 | Oil pipe | 847269 | 1 | See group 3 |
| 30 | Fuel pipe | 845711 | 1 | |
| 31 | Fuel hose | 845450 | 2 | (880618) |
| 32 | Fitting nut | 956983 | 4 | |
| 33 | Ferrule | 956969 | 4 | |
| 34 | Anchorage | 821625 | 1 | |
| 35 | Anchorage | 821076 | 1 | |
| 36 | Clamp | 941492 | 1 | |
| 36 | Clamp | 952625 | 1 | |
| 37 | Cross recessed screw | 950046 | 2 | |
| 38 | Spring washer | 941906 | 2 | |
| 39 | Hexagon nut | 955825 | 2 | Late type |
| 40 | Fuel filter kit | 243405 | 1 | |
| 41 | Bracket | 845319 | 1 | (836365) |
| 42 | Hexagon screw | 940134 | 2 | |
| 43 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 44 | Hexagon screw | 955535 | 2 | |
| 45 | Spring washer | 942336 | 2 | |
| 46 | Clamp | 947191 | 1 | |
| 47 | Overflow valve | 35096 | 1 | |
| 48 | Gasket | 969011 | 3 | |
| 49 | Hollow screw | 16496 | 1 | |
| 50 | Gasket, oil pipe | 946729 | 2 | |
| 51 | Hollow screw | 74033 | 1 | |
| 52 | Injector | 424530 | 6 | TD1010G |
| 52 | Injector | 1545102 | 6 | Repl by 424530 |
| 52 | Injector | 3803243 | 6 | TD1010G |
| 53 | Sealing ring | 469455 | 6 | |
| 54 | Yoke | 469797 | 6 | (466399) |
| 55 | Stud | 1545022 | 6 | |
| 56 | Lock nut | 971086 | 6 | (961992) |
| 57 | Leak-off pipe | 846805 | 1 | |
| 58 | Fitting nut | 956980 | 1 | |
| 59 | Ferrule | 956966 | 1 | |
| 60 | Leak-off pipe | 1545081 | 1 | |
| 61 | Hollow screw | 74033 | 6 | |
| 62 | Gasket, oil pipe | 946729 | 12 | |
| 63 | Delivery pipe | 846711 | 1 | |
| 64 | Delivery pipe | 846712 | 1 | |
| 65 | Delivery pipe | 846713 | 1 | |
| 66 | Delivery pipe | 846714 | 1 | |
| 67 | Delivery pipe | 846715 | 1 | |
| 68 | Delivery pipe | 846716 | 1 | |
| 69 | Clamp, 2-pipes | 470181 | 1 | |
| 69 | Clamp, 3-pipes | 470182 | 5 | |
| 70 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 71 | Cross recessed screw | 956095 | 1 | |
| 72 | Spring washer | 941906 | 1 | |
| 73 | Hexagon nut | 955781 | 1 | |
| 74 | Reservoir | 846457 | 1 | |
| 75 | Sealing ring | 846460 | 1 | |
| 76 | Cap | 846459 | 1 | |
| 77 | Sealing ring | 846458 | 2 | |
| 78 | Hex. socket screw | 959223 | 1 | L = 30 MM |
| 78 | Hex. socket screw | 959227 | 1 | L = 50 MM |
| 79 | Spring washer | 941907 | 2 | |
| 80 | Wing screw | 846461 | 2 | |
| 81 | Gasket | 947620 | 2 | (233321) |
| 82 | E-circlip | 951665 | 2 | |
| 83 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 84 | Gasket | 969011 | 1 | |
| 85 | Banjo nipple | 25168 | 1 | |
| 86 | Gasket | 957178 | 2 | |
| 87 | Hollow screw | 25167 | 1 | |
| 88 | Intermediate lever | 848677 | 1 | (821134) |
| 89 | Hexagon screw | 955270 | 1 | |
| 90 | Spring washer | 941906 | 1 | |
| 91 | Fuel pipe | 847268 | 1 | |
| 92 | Fuel pipe | 847267 | 1 | |
| 93 | Ferrule | 956969 | 5 | |
| 94 | Fitting nut | 956983 | 5 | |
| 95 | T-nipple | 957123 | 1 | |
| 96 | Gasket | 845953 | 12 | |
| 97 | Pipe | 845955 | 1 | |
| 98 | Hollow screw | 846183 | 6 | |
| 99 | Pressure pipe | 848328 | 1 | Jacketed fuel pipes, Cyl.no.1 |
| 100 | Pressure pipe | 848329 | 1 | Jacketed fuel pipes, Cyl.no.2 |
| 101 | Pressure pipe | 848330 | 1 | Jacketed fuel pipes, Cyl.no.3 |
| 102 | Pressure pipe | 848331 | 1 | Jacketed fuel pipes, Cyl.no.4 |
| 103 | Pressure pipe | 848332 | 1 | Jacketed fuel pipes, Cyl.no.5 |
| 104 | Pressure pipe | 848333 | 1 | Jacketed fuel pipes, Cyl.no.6 |
| 105 | Tube | 848334 | 2 | |
| 106 | Tube | 848335 | 1 | |
| 107 | Hexagon screw | 955279 | 1 | |
| 108 | Hexagon screw | 955285 | 1 | |
| 109 | Spring washer | 941906 | 2 | |
| 110 | Hexagon nut | 955781 | 2 | |
| 41A | Spacer plate | 846738 | 1 |
| Item | Part Name | Part No. |
| 77 | Sealing ring 846458 | 846458 |
| Details | |
| Engine model | D100BHC D100BRC D70CHC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100AHC TD100ARC TD100CHC TD100CRC TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC TD70CHC TD70CRC |
| Application | Fuel System FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D |
