Sealing ring 958811

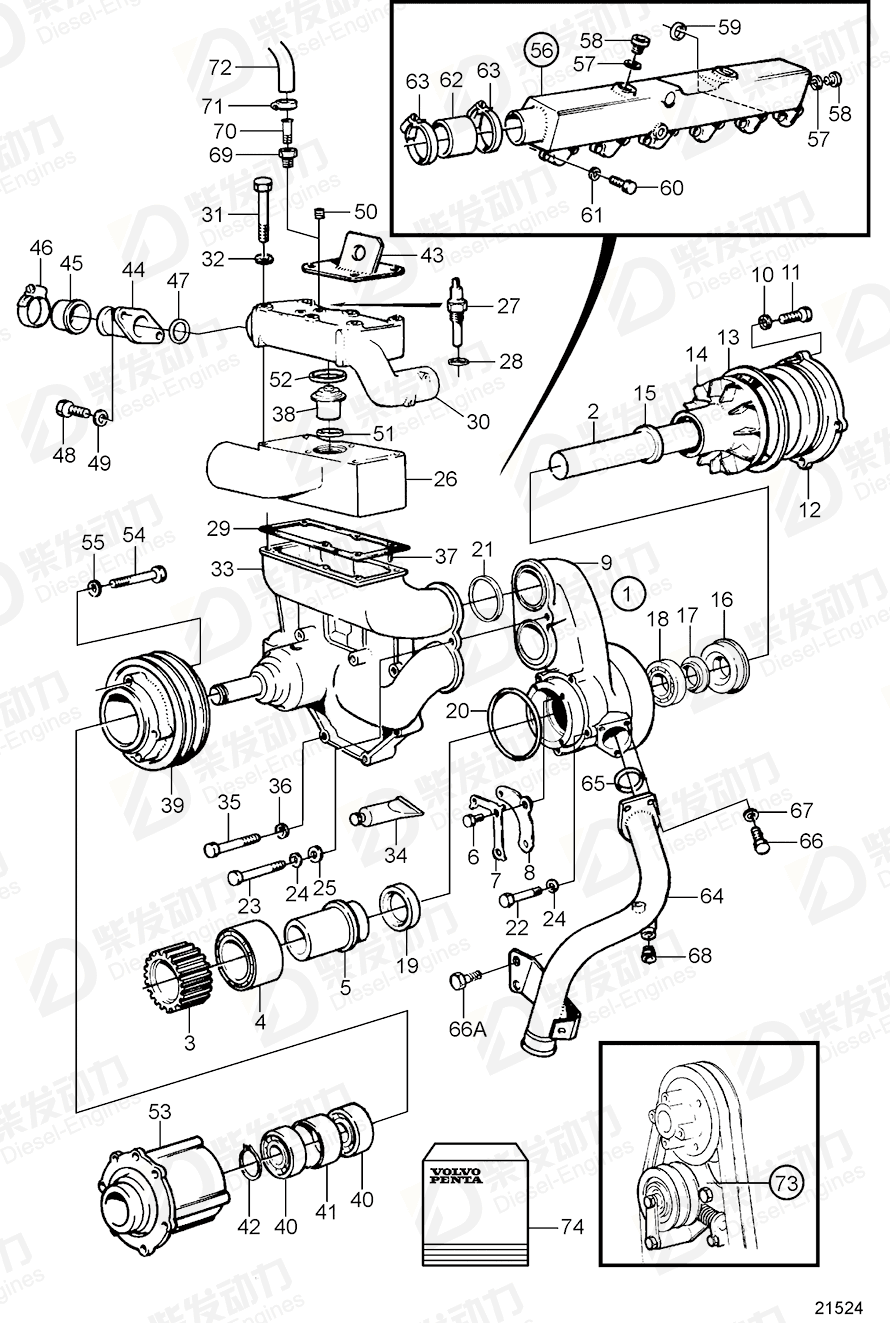

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 1545261 | 1 | SN-2120214925 |
| 1 | Coolant pump | 3803537 | 1 | |
| 1 | Coolant pump | 20431484 | 1 | |
| 2 | Shaft | 468249 | 1 | |
| 3 | Gear | 470265 | 1 | |
| 4 | Ball bearing | 181286 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 5 | Spindle | 468247 | 1 | |
| 6 | Hexagon screw | 940100 | 3 | |
| 7 | Lock washer | 1545359 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 8 | Lock washer | 1545358 | 2 | Included in repair kit 276936 for water pump 20431484. |
| 10 | Spring washer | 941906 | 4 | |
| 11 | Hexagon screw | 955513 | 4 | |
| 12 | Cover | 469418 | 1 | |
| 13 | O-ring | 925262 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 14 | Impeller | 468244 | 1 | Replaced by impeller 8121826 and sealing ring 1676432., Repl by 8121826+1676432 |
| 14 | Pump rotor | 8121826 | 1 | |
| 15 | Wear ring | 421306 | 1 | |
| 16 | Sealing ring | 1545283 | 1 | (1542833) |
| 16 | Sealing ring | 1676432 | 1 | Included in repair kit 3830711. |
| 17 | Deflector | 70913 | 1 | |
| 18 | Ball bearing | 1660609 | 1 | (181670) |
| 19 | Sealing ring | 958811 | 1 | Included in repair kit 3830711. |
| 20 | O-ring | 925257 | 1 | |
| 21 | O-ring | 1664473 | 2 | (925254) |
| 22 | Hexagon screw | 955542 | 4 | |
| 23 | Hexagon screw | 955535 | 1 | |
| 24 | Spring washer | 942336 | 5 | |
| 25 | Washer | 940097 | 1 | |
| 26 | Thermostat housing | 470396 | 1 | |
| 29 | Gasket | 423352 | 1 | |
| 30 | Thermostat housing, upper | 862338 | 1 | |
| 31 | Hexagon screw | 959798 | 6 | |
| 32 | Washer | 940097 | 2 | |
| 33 | Lower section | 468635 | 1 | |
| 34 | Sealant | 1161231 | 1 | 304ml |
| 35 | Hexagon screw | 955535 | 5 | |
| 35 | Hexagon screw | 955541 | 2 | |
| 36 | Spring washer | 942336 | 7 | |
| 37 | Spring pin | 951973 | 2 | |
| 38 | Thermostat | 3839110 | 1 | 75°C |
| 38 | Thermostat | 8149186 | 1 | 86°C |
| 39 | V-belt pulley | 468445 | 1 | |
| 39 | Pulley | 863036 | 1 | |
| 43 | Anchorage | 475888 | 1 | |
| 44 | Connecting pipe | 845435 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 45 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 46 | Hose clamp | 994560 | 1 | |
| 47 | O-ring | 949658 | 1 | (925061) early type |
| 48 | Hexagon screw | 940135 | 2 | |
| 49 | Spring washer | 941907 | 2 | |
| 50 | Plug | 479977 | 2 | |
| 51 | Sealing ring | 1544710 | 1 | |
| 52 | Sealing ring | 1544410 | 1 | |
| 53 | Hub | 1542957 | 1 | (476976) |
| 54 | Hexagon screw | 955536 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 55 | Spring washer | 942336 | 4 | |
| 56 | Water pipe | 479601 | 1 | (847512) |
| 57 | Gasket | 468463 | 3 | |
| 58 | Plug | 467366 | 3 | |
| 59 | O-ring | 423281 | 6 | |
| 60 | Hexagon screw | 955525 | 12 | |
| 61 | Spring washer | 941907 | 12 | |
| 62 | Radiator hose | 470464 | 1 | (468216) |
| 63 | Hose clamp | 943479 | 2 | |
| 64 | Connecting pipe | 3828689 | 1 | |
| 65 | O-ring | 925092 | 1 | |
| 66 | Hexagon screw | 940135 | 3 | |
| 67 | Spring washer | 941907 | 3 | |
| 68 | Plug | 479977 | 2 | |
| 69 | Nipple | 479954 | 1 | (190130) |
| 70 | Elbow nipple | 942758 | 1 | SNXXXXXXXXXX/262418- |
| 71 | Hose clamp | 994556 | 1 | |
| 74 | Overhaul kit, water pump | 276802 | 1 | See group 99 (275615) |
| 66A | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| Item | Part Name | Part No. |
| 19 | Sealing ring 958811 | 958811 |
| Details | |
| Engine model | DH10A TAD1630G, TAD1630GE TAD1630P TAD1631G, TAD1631GE TAD730P TD120C TD120G TD120HP-86 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121G TD121G-87 TD121GG TD121GG, TD121GGP TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD164KAE TD610M TD610V TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD630ME TD630VE TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD730ME THD102KB THD102KD TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87 TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121KG-87 TID121KGP TID121KP-87, TID121KPB-87 TID121L-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG TID121LG, TID121LP TID121LG-87 TID121LGP-87 TID121LP TID121LP-87, TID121LPB-87 TID162AG, TID162AGP, TID162AP, TID162APB TWD1210G TWD1211G TWD1620G TWD1620G, TWD1630G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME, TWD731ME |
| Application | Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D Thermostat and Water Pump with Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Thermostat and Water Pump with Installation Components: C Thermostat and Water Pump with Installation Components: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP Water Pump and Thermostat Housing, Earlier Prod. Water Pump and Thermostat SN-XXXXXXXXXX/21158 Water Pump, Components Water Pump, Components: 1675750 Water Pump, Components: 3183908 Water Pump, Components: 3183909 Water Pump, Components: 420759 Water Pump, Components: 477397 Water Pump, Components: 477770 Water Pump, Components: 8192050 Water Pump: 420759 Water Pump: 465884 Water Pump: 471500 Water Pump: 477397 Water Pump: C |
| Specification | |
| Descriptions | (469749) Included in repair kit 3830711. |
