Sealing ring kit, cylinder head 276924

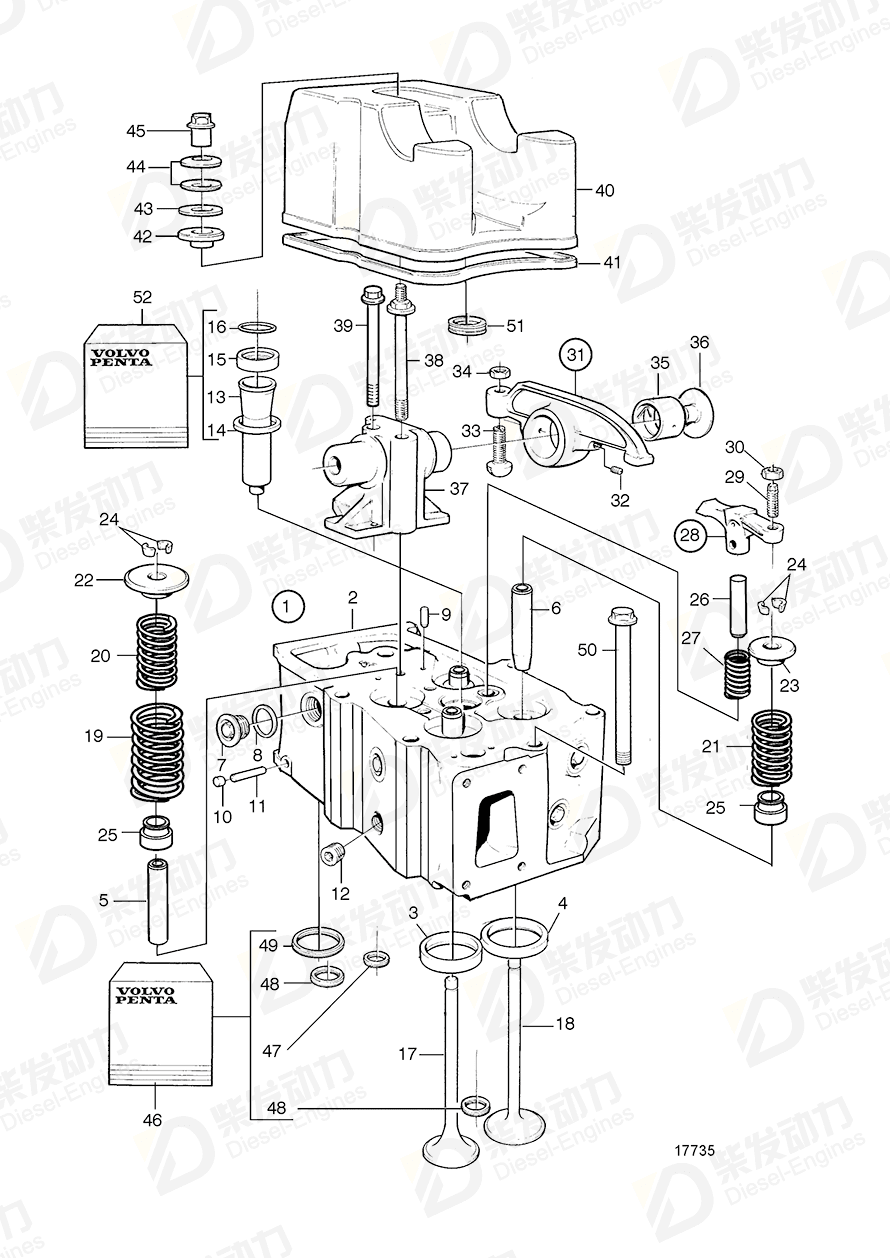

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 1556600 | 6 | SNXXXXXXXXXX/14387- |
| 1 | Cylinder head | 3803288 | 6 | SNXXXXXXXXXX/14387- |
| 3 | Valve seat, exhaust | 1556149 | 12 | Std |
| 3 | Valve seat, exhaust | 1556333 | 12 | O.S=0,20mm |
| 4 | Valve seat, intake | 1556148 | 12 | Std |
| 4 | Valve seat, intake | 1556332 | 12 | O.S=0,20mm |
| 5 | Valve guide, exhaust | 20355015 | 12 | (1556604) |
| 6 | Valve guide, intake | 20355012 | 12 | (1556607) |
| 7 | Plug | 1556989 | 24 | (1556860) |
| 8 | Gasket | 468463 | 24 | |
| 9 | Pin | 950543 | 12 | |
| 10 | Plug | 955077 | 6 | |
| 11 | Pin | 1543492 | 6 | |
| 12 | Plug | 3964715 | 12 | (1543941) |
| 13 | Copper sleeve kit, fuel injector | 276836 | 6 | See group 99 |
| 14 | Sealing ring | 1543225 | 6 | |
| 15 | Ring | 1543606 | 6 | |
| 16 | O-ring | 1543574 | 6 | |
| 17 | Exhaust valve | 1556896 | 12 | (1556473) (1556820) |
| 18 | Inlet valve | 1556813 | 12 | |
| 19 | Valve spring, exhaust | 1543870 | 12 | |
| 20 | Valve spring | 1543871 | 12 | |
| 21 | Valve spring, intake | 1543872 | 12 | |
| 22 | Valve spring washer, exhaust | 1543866 | 12 | |
| 23 | Valve spring washer, intake | 1543046 | 12 | |
| 24 | Valve collet | 1543078 | 48 | |
| 25 | Valve seal | 1556064 | 24 | |
| 26 | Pin | 1556073 | 12 | |
| 27 | Compression spring | 1543981 | 12 | |
| 28 | Valve caliper | 1556167 | 12 | |
| 29 | Adjusting screw | 1543368 | 12 | |
| 30 | Hexagon nut | 946911 | 12 | |
| 31 | Rocker arm | 1543441 | 12 | |
| 32 | Nozzle | 1543723 | 24 | |
| 33 | Ball screw | 1543372 | 12 | |
| 34 | Hexagon nut | 946911 | 12 | |
| 35 | Bushing | 1543443 | 12 | |
| 36 | Plug | 1543508 | 12 | |
| 37 | Bearing bracket | 1543476 | 6 | |
| 38 | Flange screw | 1556078 | 6 | |
| 39 | Flange screw | 975105 | 6 | M10x100mm |
| 40 | Valve cover | 1543469 | 6 | |
| 41 | Gasket | 1543581 | 6 | |
| 42 | Damping ring | 1543582 | 6 | |
| 43 | Washer | 1543657 | 6 | |
| 44 | Disc spring | 943819 | 12 | |
| 45 | Cap nut | 1543654 | 6 | |
| 46 | Sealing ring kit, cylinder head | 276924 | 6 | (271085) |
| 47 | Sealing ring | 1543576 | 6 | O.D=22,4mm |
| 48 | Sealing ring | 1543566 | 12 | O.S=32,5mm |
| 49 | Sealing ring | 1543580 | 12 | O.S=54,6mm |
| 50 | Flange screw | 1556956 | 36 | |
| 51 | Sealing ring, injector-valve cover | 1543751 | 6 | |
| 52 | Copper sleeve kit, fuel injector | 276836 | 6 | See group 99 |
| Item | Part Name | Part No. |
| 46 | Sealing ring kit, cylinder head 276924 | 276924 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP TID162AG, TID162AGP, TID162AP, TID162APB TID162AP, TID162APB TWD1620G TWD1630G TWD1630G, TAD1630G, TAD1630GE TWD1630V |
| Application | Cylinder Head Cylinder Head: 1556070 Cylinder Head: 1556150 Cylinder Head: 1556590 Cylinder Head: 1556600 Cylinder Head: A Cylinder Head: B Repair Kits |
| Specification | |
| Descriptions | (271085) Bring also 1 pc sealing ring 1543507 / Cylinder. Only together with 1pc gasket kit 876838 and 1 pc gasket kit 876839. Only together with 1pc gasket kit 876838 and 1 pc gasket kit 876839., (271085) |
