Sealing strip 476612

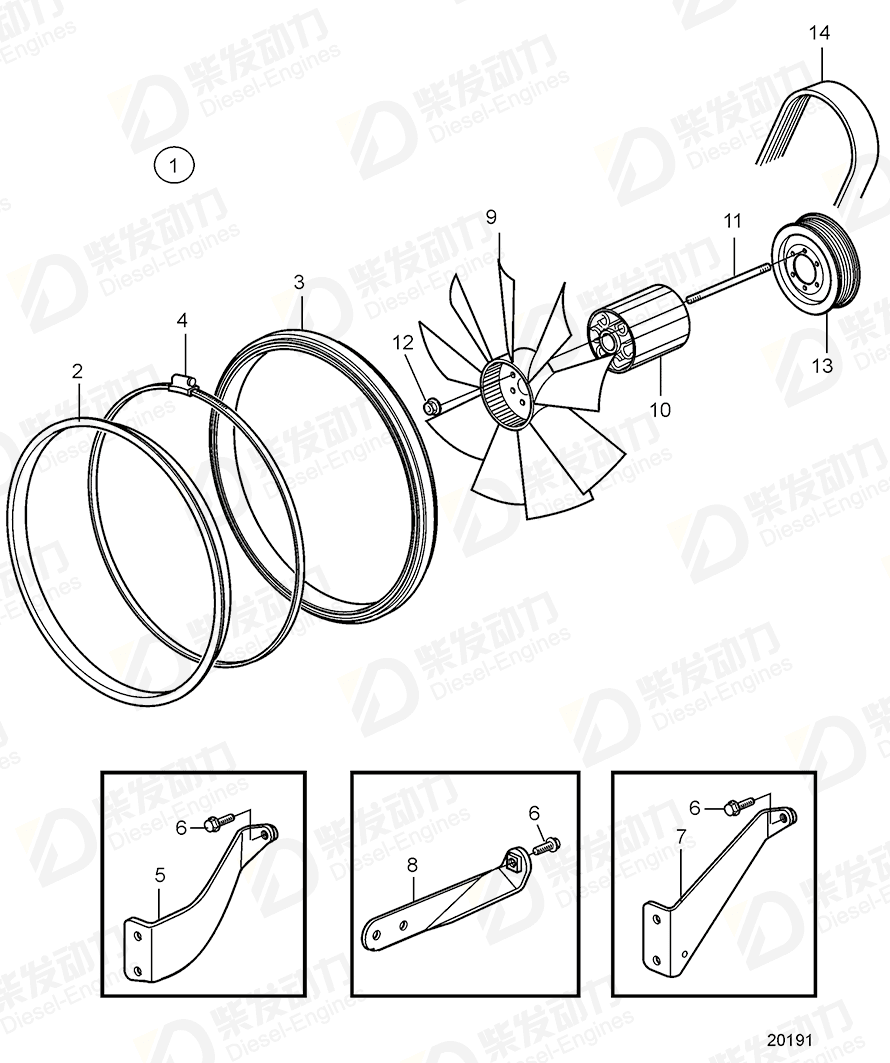

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan ring | 1664910 | 1 | |
| 2 | Sealing strip | 476612 | 1 | |
| 4 | Hose clamp | 1544650 | 1 | |
| 5 | Bracket | 3837457 | 1 | |
| 6 | Flange screw | 984752 | 10 | |
| 7 | Bracket | 3837455 | 1 | For fan hub with L=180mm. |
| 7 | Bracket | 3843725 | 1 | For fan hub with L=150mm. |
| 8 | Bracket | 3839465 | 1 | For fan hub with L=180mm. |
| 8 | Bracket | 3843722 | 1 | For fan hub with L=150mm. |
| 9 | Fan | 3827491 | 1 | Suction type |
| 9 | Fan | 3827492 | 1 | Pusher type. |
| 10 | Fan hub | 3837740 | 1 | |
| 10 | Fan hub | 3883329 | 1 | L=150mm |
| 11 | Stud | 981590 | 6 | |
| 12 | Flange lock nut | 971098 | 6 | |
| 13 | Pulley | 3586364 | 1 | Ratio 1: 0,90 |
| 14 | V-ribbed belt | 981792 | 1 | For 3586364 |
| Item | Part Name | Part No. |
| 2 | Sealing strip 476612 | 476612 |
| Details | |
| Engine model | TAD1250VE, TAD1251VE, TAD1252VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD120C TD120G TD120HPP TD121G TD121G-87, TWD1231VE TD121GG TID120FPP TID120HPP TID121FG TWD1230ME TWD1240VE |
| Application | Fan and Fanring RADIATOR AND FAN WITH FAN COVER AND INSTALLATION COMPONENTS Radiator and Fan with Fan Cover and Installation Components: A Radiator and Fan with Fan Cover and Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod.: A Radiator and Fan, Later Prod.: senare utförande Radiator and Fan, Mobile Application Radiator with Installation Components Radiator, Expansion Tank and Fan |
