Sealing strip 8148213

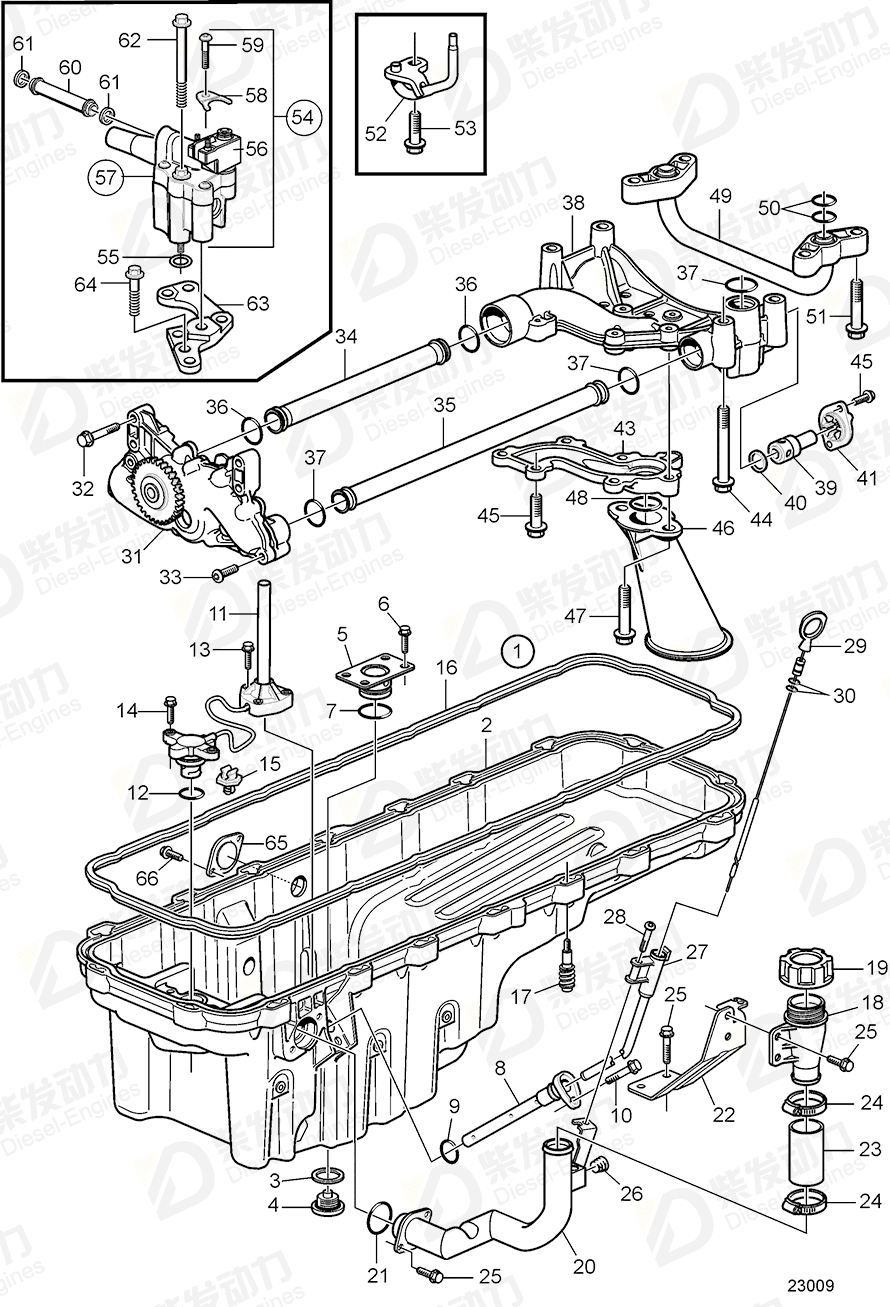

| No. | Part Name | Part Number | Qty | Description |
| 2 | Oil pan | 20801538 | 1 | |
| 3 | Sealing ring | 20579690 | 1 | |
| 4 | Magnetic plug | 20571854 | 1 | |
| 5 | Retainer | 20586869 | 1 | |
| 6 | Flange screw | 966378 | 1 | |
| 7 | O-ring | 20586720 | 1 | |
| 8 | Pipe | 20724256 | 1 | |
| 9 | O-ring | 949656 | 1 | |
| 10 | Flange screw | 984733 | 1 | |
| 11 | Oil level sensor | 21042447 | 1 | |
| 11 | Sensor | 24424110 | 1 | Replaced by sender 21042447. |
| 12 | O-ring | 944126 | 1 | |
| 13 | Flange screw | 984728 | 3 | |
| 14 | Flange screw | 984726 | 2 | |
| 15 | Retainer | 20700754 | 2 | |
| 16 | Sealing strip | 8148213 | 1 | Replaced by 20812484 |
| 16 | Sealing strip | 20812484 | 1 | |
| 17 | Flange screw | 20463185 | 18 | Replaced by 20739547 |
| 18 | Oil filler pipe | 20808091 | 1 | |
| 19 | Oil filler cap | 20807510 | 1 | |
| 20 | Pipe | 3807479 | 1 | |
| 21 | Sealing ring | 20555696 | 1 | (421629) |
| 22 | Bracket | 3586436 | 1 | |
| 23 | Hose | 11162126 | 1 | |
| 24 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 25 | Flange screw | 984733 | 6 | |
| 26 | Plug | 968062 | 1 | |
| 27 | Pipe | 3586522 | 1 | |
| 28 | Six point socket scr | 975371 | 1 | |
| 29 | Dipstick | 21885395 | 1 | L=403mm |
| 30 | O-ring | 949187 | 2 | |
| 31 | Oil pump | 20569856 | 1 | Replaced by 20758237 |
| 31 | Oil pump | 20758237 | 1 | Up to 2007W44 |
| 31 | Oil pump | 20835230 | 1 | From 2007 W45, Replaced by 21736639 |
| 31 | Oil pump | 21736639 | 1 | |
| 32 | Flange screw | 984738 | 4 | |
| 33 | Six point socket scr | 969600 | 3 | |
| 34 | Suction pipe | 20405083 | 1 | |
| 35 | Pressure pipe | 20405081 | 1 | |
| 36 | Sealing ring | 1543225 | 2 | |
| 37 | Sealing ring | 21092243 | 3 | |
| 38 | Valve housing | 20412866 | 1 | |
| 39 | Reduction valve | 3826265 | 1 | Mounted between cylinder 2 and 3. |
| 40 | Sealing ring | 469846 | 1 | |
| 41 | Cover | 471648 | 1 | |
| 42 | Flange screw | 984726 | 2 | |
| 44 | Flange screw | 984759 | 4 | |
| 45 | Flange screw | 984736 | 5 | |
| 46 | Oil strainer | 3161262 | 1 | |
| 47 | Flange screw | 973924 | 2 | |
| 48 | O-ring | 948610 | 1 | |
| 49 | Pipe | 20412574 | 1 | |
| 50 | Gasket | 471956 | 4 | |
| 51 | Flange screw | 984756 | 4 | |
| 52 | Piston cooling jet | 20727702 | 6 | |
| 53 | Flange screw | 966378 | 6 | |
| 54 | Control valve, rocker arm shaft | 20892735 | 1 | |
| 55 | Sealing ring | 20526428 | 1 | |
| 60 | Connection pipe | 20786034 | 1 | |
| 61 | Sealing ring | 1677370 | 2 | |
| 62 | Flange screw | 3165142 | 2 | |
| 63 | Adapter | 20862692 | 1 | |
| 64 | Flange screw | 984734 | 3 |
| Item | Part Name | Part No. |
| 16 | Sealing strip 8148213 | 8148213 |
| Details | |
| Engine model | TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD950VE, TAD951VE, TAD952VE |
| Application | Lubricating System Lubricating System. SN7009159770- Lubricating SystemSN7009167424- |
| Specification | |
| Descriptions | Replaced by 20812484 |
