Sealing washer 477016

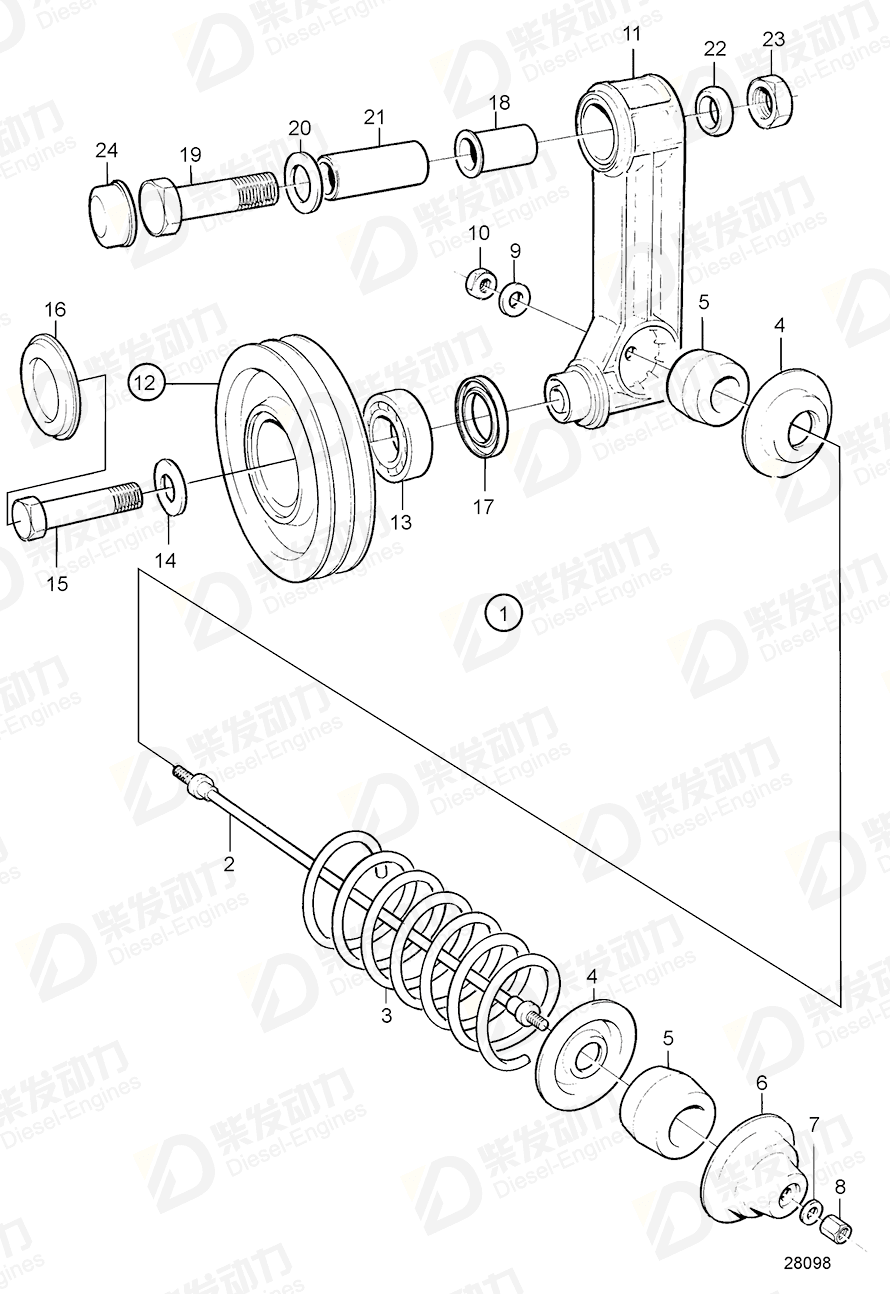

| No. | Part Name | Part Number | Qty | Description |
| 1 | Belt tensioner | 421540 | 1 | |
| 2 | Cable | 477312 | 1 | |
| 3 | Compression spring | 471318 | 1 | |
| 4 | Spring guide | 471323 | 2 | |
| 5 | Ring | 1134962 | 2 | |
| 6 | Spring anchorage | 471325 | 1 | |
| 7 | Washer | 955892 | 1 | |
| 8 | Nut | 421541 | 1 | |
| 9 | Washer | 960140 | 1 | 3-6mm², yellow |
| 10 | Hexagon nut | 955781 | 1 | |
| 12 | Pulley | 1661878 | 1 | |
| 13 | Ball bearing | 1544092 | 1 | (181430) |
| 14 | Washer | 948880 | 1 | |
| 15 | Flange screw | 946671 | 1 | |
| 16 | Body | 471430 | 1 | |
| 17 | Sealing washer | 477016 | 1 | |
| 18 | Slide bearing | 477160 | 1 | |
| 19 | Hexagon screw | 970983 | 1 | |
| 20 | Washer | 960145 | 1 | Classed engine,spec.867117., Replaces earlier production spacer pin FIG.15., D70B spec. 867278 alt. |
| 21 | Shaft | 471317 | 1 | |
| 22 | Sealing ring | 471321 | 1 | |
| 23 | Hexagon nut | 971072 | 1 | Alt |
| 24 | Protecting casing | 471889 | 1 |
| Item | Part Name | Part No. |
| 17 | Sealing washer 477016 | 477016 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TAD740GE TAD741GE TD610G TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD730ME TD730VE TWD610G TWD610P TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P TWD610V TWD630ME TWD630VE TWD710P TWD710V TWD730ME, TWD731ME TWD731VE TWD740GE TWD740VE |
| Application | Automatic Belt Tensioner and Installation Components Belt Tensioner Device Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C |
