Selector shaft 384135

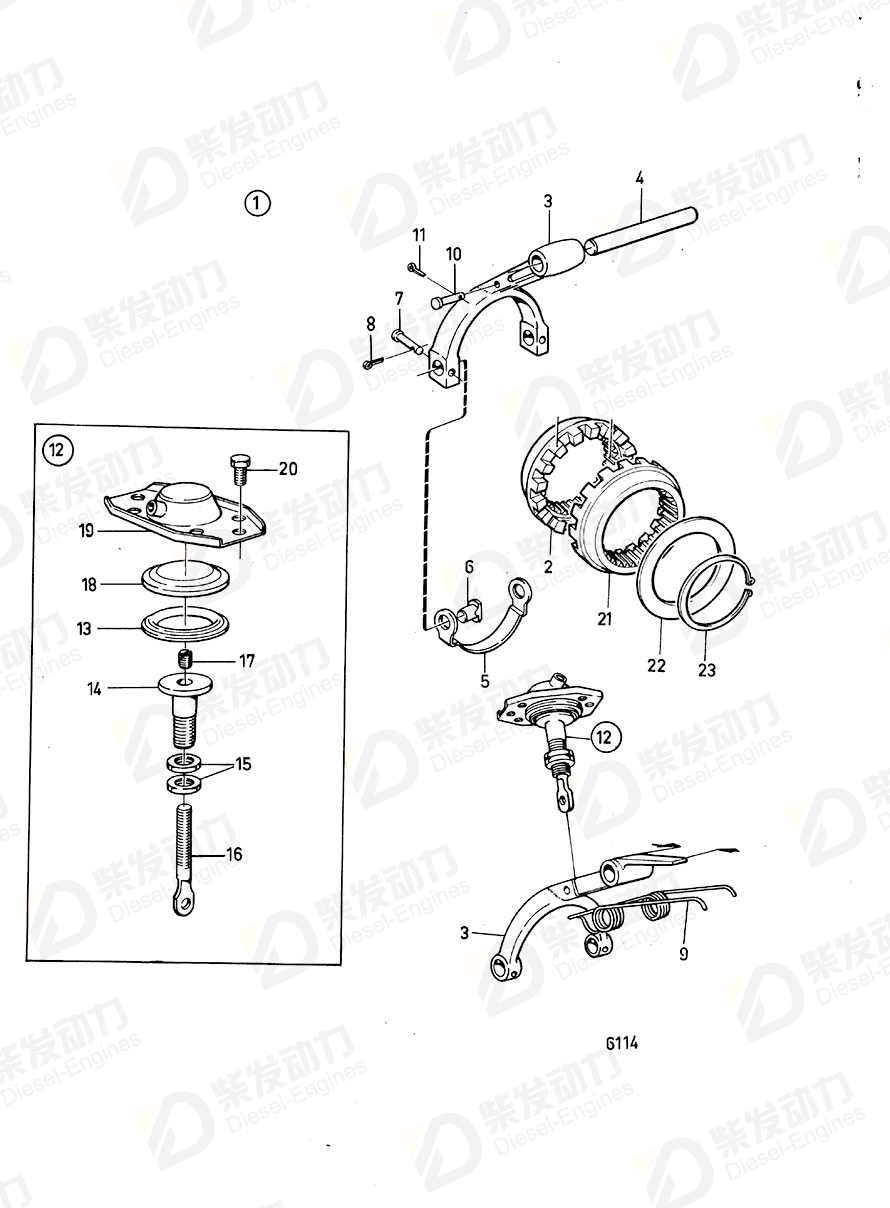

| No. | Part Name | Part Number | Qty | Description |
| 2 | Companion flange | 1522135 | 1 | QTY teeth A.14B.17 |
| 3 | Selector fork | 1523080 | 1 | |
| 4 | Selector shaft | 384135 | 1 | |
| 6 | Slide dog | 1523087 | 2 | (384124) |
| 7 | Clevis pin | 952694 | 2 | |
| 8 | Split pin | 907819 | 2 | |
| 9 | Return spring | 383960 | 1 | |
| 10 | Clevis pin | 964845 | 1 | |
| 11 | Split pin | 907824 | 1 | |
| 13 | Diaphragm seat | 383988 | 1 | |
| 14 | Diaphragm sleeve | 383971 | 1 | |
| 15 | Hexagon nut | 957018 | 2 | |
| 16 | Rail | 1522096 | 1 | L 60 alt |
| 17 | Set screw | 962942 | 1 | |
| 18 | Diaphragm | 383972 | 1 | |
| 19 | Cover | 1523096 | 1 | (383963) |
| 20 | Hexagon screw | 955269 | 6 | For 1570594 |
| 21 | Companion flange | 1522134 | 1 | QTY teeth A.14B.44 |
| 22 | Washer | 1522102 | 1 | |
| 23 | Snap ring | 945506 | 1 |
| Item | Part Name | Part No. |
| 4 | Selector shaft 384135 | 384135 |
| Details | |
| Engine model | RAN181 RAN181, RAN280 |
| Application | Axle Rear Axle Direction Differential Lock Differential Lock RA N1 81 FA N2 80 |
Tags: Selector shaft, Volvo Penta, 384135
