Sensor 881432

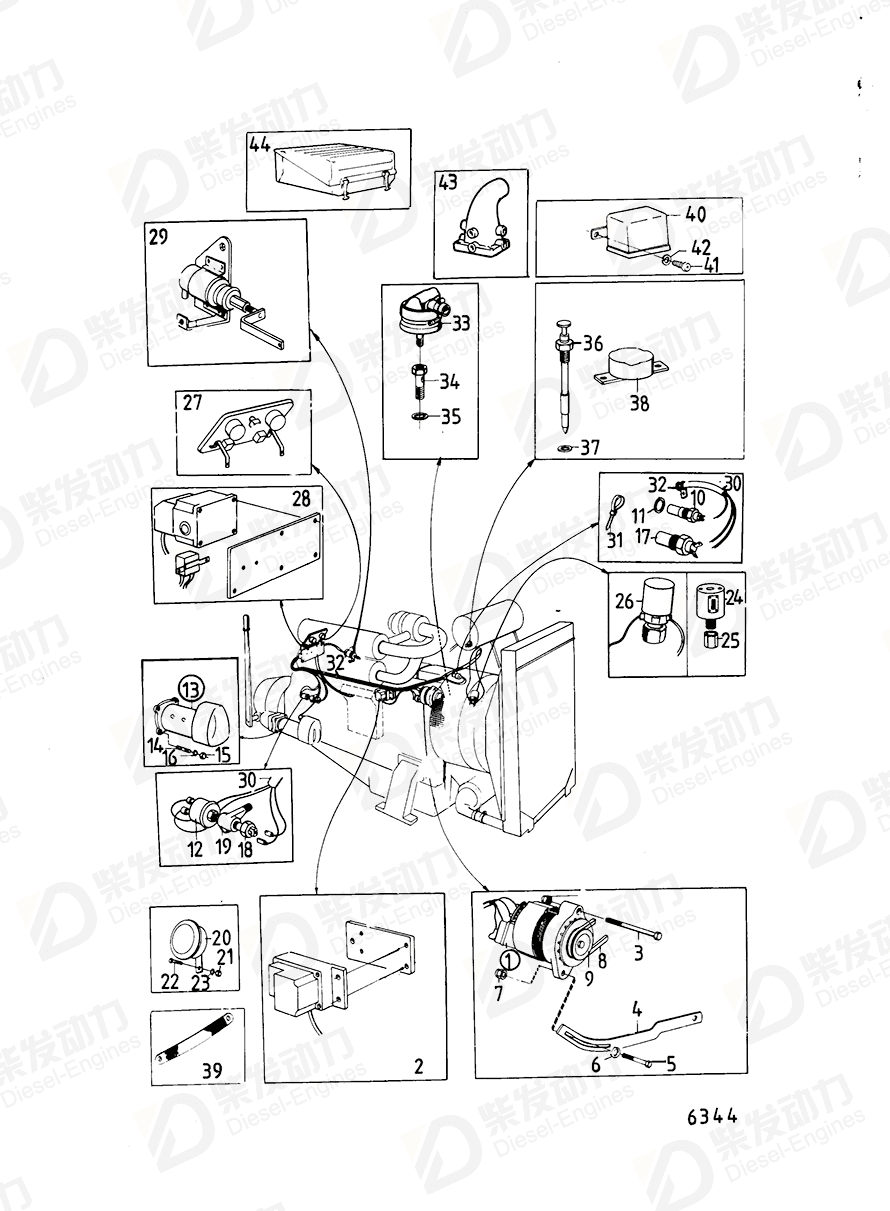

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 827349 | 1 | 28V 25A,later prod |
| 3 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 3 | Hexagon screw | 955699 | 1 | |
| 4 | Tensioner | 823107 | 1 | |
| 5 | Hexagon screw | 940186 | 1 | |
| 6 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 7 | Lock nut | 950353 | 1 | |
| 8 | V-belt | 947951 | 1 | |
| 9 | Pulley | 843248 | 1 | |
| 10 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 11 | Gasket | 11996 | 1 | |
| 12 | Sensor | 881432 | 1 | |
| 13 | Starter motor | 847308 | 1 | 24V |
| 13 | Starter motor | 870998 | 1 | 24V repl by 847308 |
| 14 | Stud | 953486 | 3 | |
| 15 | Hexagon nut | 955827 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 16 | Spring washer | 942336 | 3 | |
| 17 | Thermo monitor | 822858 | 1 | 93°C,later prod |
| 18 | Contact | 843812 | 1 | |
| 19 | T-nipple | 942490 | 1 | |
| 20 | Horn | 850420 | 1 | |
| 21 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 22 | Hexagon screw | 955535 | 1 | |
| 23 | Spring washer | 942336 | 1 | |
| 24 | Hour counter | 820554 | 1 | Mechanical |
| 24 | Hour counter | 820555 | 1 | Mechanical |
| 24 | Hour counter | 820556 | 1 | Mechanical |
| 25 | Hexagon nut | 325842 | 1 | |
| 26 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 30 | Cable block | 836197 | 1 | For MS3B reverse gear |
| 31 | Cable tie | 948210 | 1 | (827353) |
| 32 | Clamp | 942400 | 1 | |
| 33 | Pressure monitor | 823416 | 1 | |
| 34 | Hollow screw | 823417 | 1 | |
| 35 | Gasket | 957178 | 2 | |
| 36 | Level indicator | 352390 | 1 | |
| 37 | Gasket | 11994 | 1 | |
| 38 | Level relay | 1501203 | 1 | |
| 39 | Chassis ground cable | 11411 | 1 | |
| 40 | Relay | 870451 | 1 | |
| 41 | Cross recessed screw | 950019 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 42 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| Item | Part Name | Part No. |
| 12 | Sensor 881432 | 881432 |
| Details | |
| Engine model | D100A D100B D100B, TD100A D100BHC D100BRC D120A D120A, TD120A D42A D70B D70CHC, D70CRC, TD70CHC, TD70CRC TAD120CHC TAD121CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD120A TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120BHC TD120BRC TD120GG TD121CHC TD121CRC TD70B TID70G |
| Application | Conn.box and Installation Comp., Classed Engine, Spec 867108, 86 Connecting Box and Installation Components Connecting Box and Installation Components, Classed Engine ELECTRICAL SYSTEM AND INSTRUMENT Electrical System and Instrument: A Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Electrical System and Instruments Excl Spec 867108, 867153: A Electrical System and Instruments Excl Spec 867108, 867153: B Electrical System and Instruments Excl Spec 867108, 867153: C Electrical System and Instruments: A Electrical System and Instruments: B Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D |
| Specification | |
| Descriptions | D70B spec 867054-867059, 867132, 867259, 867260, 867276- 867279, 867300, 867301. classed spec 867053. TD70B spec 867281. |
