Sensor, charge pressure/tempera ture 3843012

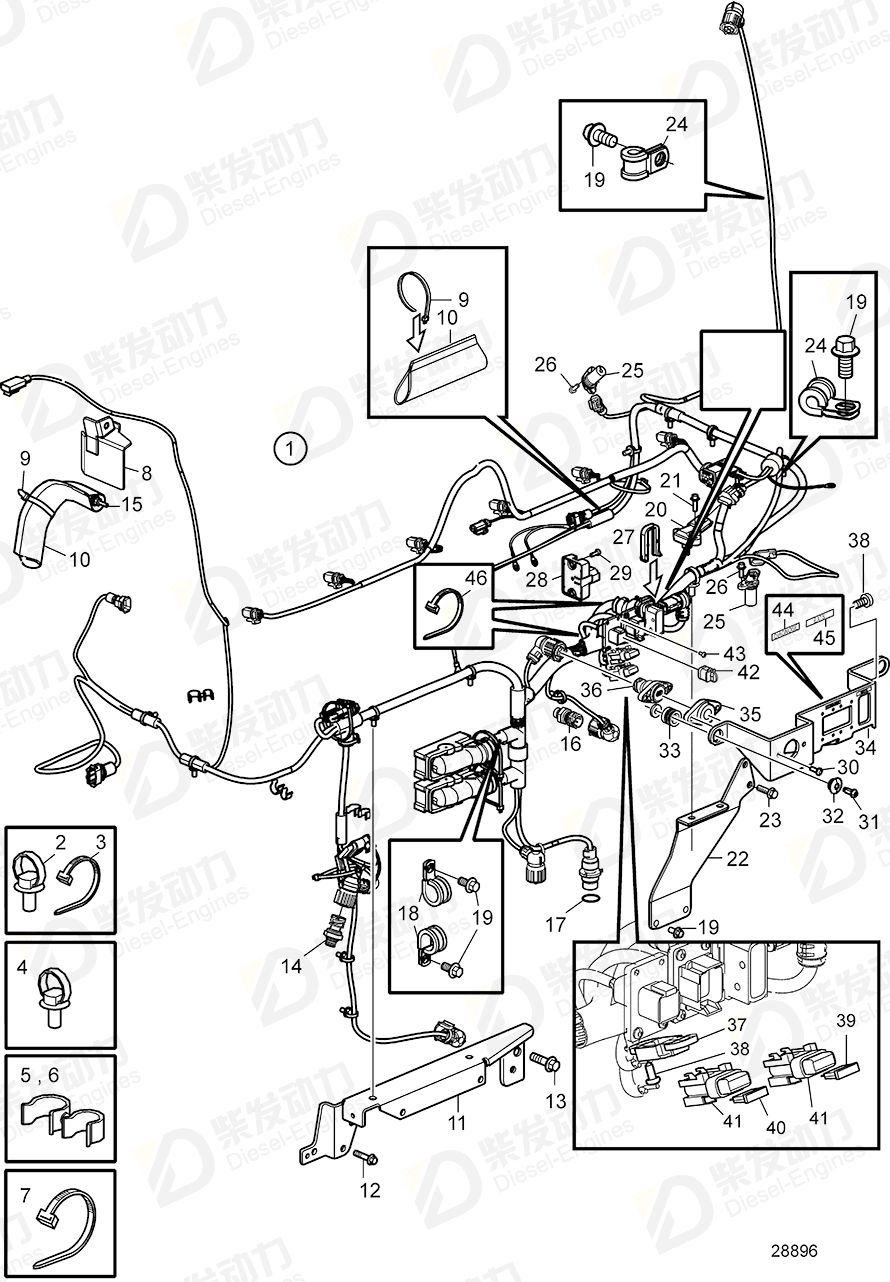

| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness | 22875695 | 1 | |
| 2 | Retainer | 8131393 | 6 | For cable to unit injectors. |
| 3 | Cable tie | 983472 | 8 | For cable to unit injectors. |
| 4 | Cable tie | 980881 | 1 | |
| 5 | Retainer | 3545508 | 1 | |
| 6 | Retainer | 3121512 | 1 | |
| 7 | Cable tie | 948211 | 1 | |
| 8 | Heat shield | 22074217 | 1 | |
| 9 | Cable tie | 22343166 | 2 | |
| 10 | Tube | 20711293 | 2 | |
| 11 | Bracket | 21927928 | 1 | |
| 12 | Flange screw | 984737 | 1 | |
| 13 | Flange screw | 984816 | 2 | |
| 14 | Pressure sensor, crankcase pressure | 21634017 | 1 | |
| 15 | Temperature sensor, temperature | 21531072 | 1 | |
| 16 | Pressure sensor | 22899626 | 1 | SN2013690141- |
| 17 | Ring | 3963413 | 1 | |
| 18 | Attaching clamp | 1545432 | 2 | |
| 19 | Flange screw | 984733 | 7 | |
| 20 | Sensor, charge pressure/tempera ture | 3843012 | 1 | |
| 21 | Flange screw | 984726 | 2 | |
| 22 | Bracket | 22566969 | 1 | |
| 23 | Flange screw | 984734 | 1 | |
| 24 | Clamp | 942400 | 2 | |
| 25 | Speed monitor, flywheel | 21426987 | 2 | |
| 26 | Flange screw | 984725 | 2 | |
| 27 | Adapter | 994291 | 1 | |
| 28 | Control unit | 21918597 | 1 | |
| 29 | Six point socket scr | 972411 | 2 | |
| 30 | Six point socket scr | 986214 | 2 | |
| 31 | Six point socket scr | 969598 | 3 | |
| 32 | Plug | 1079677 | 3 | |
| 33 | Rubber cushion | 1079687 | 3 | |
| 34 | Bracket | 22860712 | 1 | |
| 35 | Cover | 21738845 | 1 | |
| 36 | Button | 21827824 | 1 | |
| 37 | Retainer | 873944 | 1 | |
| 38 | Six point socket scr | 972411 | 2 | |
| 39 | Fuse | 969161 | 1 | 10A |
| 40 | Fuse | 969163 | 1 | 25A |
| 42 | Sealing plug | 3840433 | 1 | |
| 43 | Six point socket scr | 972399 | 8 | |
| 44 | Decal | 21243308 | 1 | |
| 46 | Cable tie | 993183 | 2 |
| Item | Part Name | Part No. |
| 20 | Sensor, charge pressure/tempera ture 3843012 | 3843012 |
| Details | |
| Engine model | TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE |
| Application | Contacts and Sensors Contacts and Sensors. SN -2016080035 Contacts and Sensors. SN2016080036- Electrical System |
| Specification | |
| Descriptions | Temperature and pressure |
Tags: Sensor, charge pressure/tempera ture, Volvo Penta, 3843012
