Shaft 468249

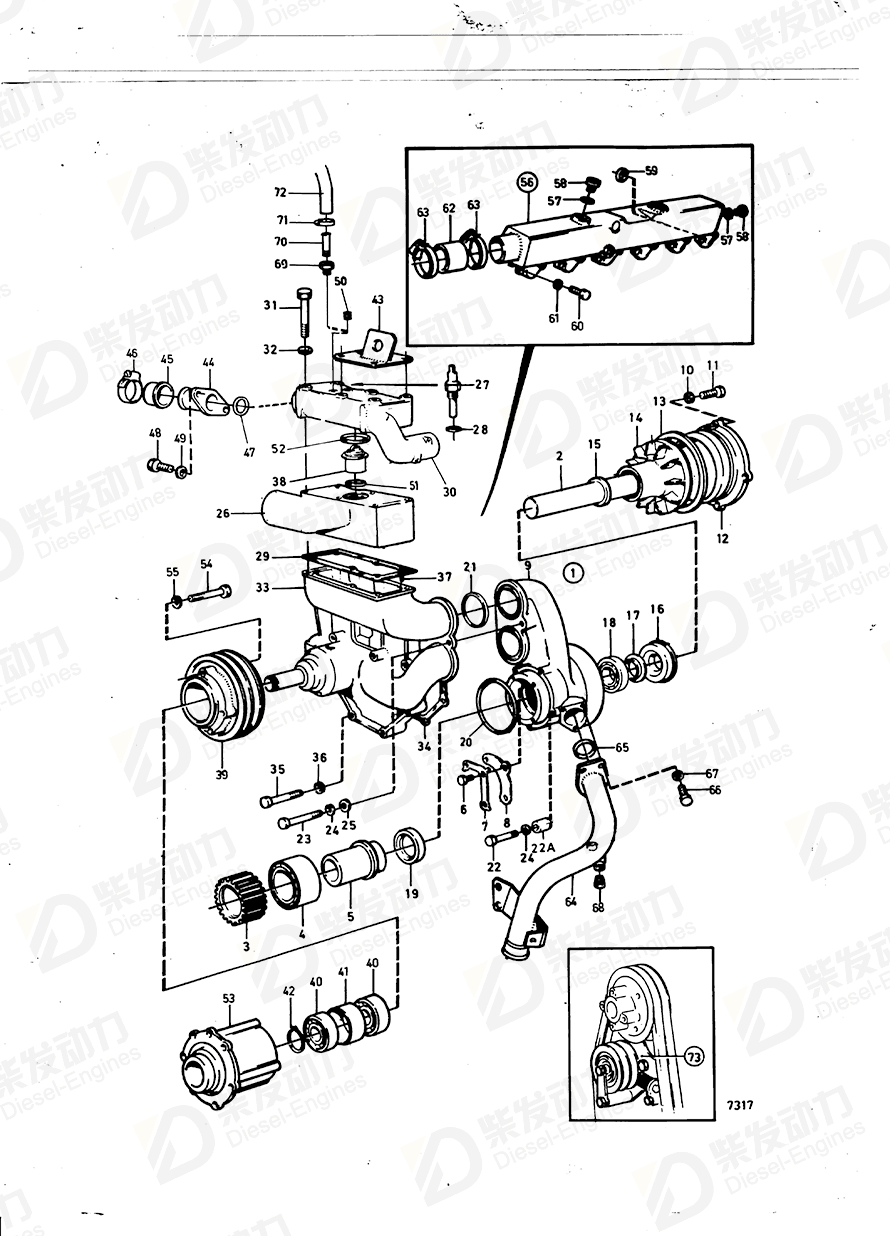

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 1545261 | 1 | SN-2120214925 |
| 2 | Shaft | 468249 | 1 | |
| 3 | Gear | 470265 | 1 | |
| 4 | Ball bearing | 181286 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 5 | Spindle | 468247 | 1 | |
| 6 | Hexagon screw | 940100 | 3 | |
| 7 | Lock washer | 1545359 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 8 | Lock washer | 1545358 | 2 | Included in repair kit 276936 for water pump 20431484. |
| 10 | Spring washer | 941906 | 4 | |
| 11 | Hexagon screw | 955513 | 4 | |
| 12 | Cover | 469418 | 1 | |
| 13 | O-ring | 925262 | 1 | Included in repair kit 276936 for water pump 20431484. |
| 14 | Impeller | 468244 | 1 | Replaced by impeller 8121826 and sealing ring 1676432., Repl by 8121826+1676432 |
| 15 | Wear ring | 421306 | 1 | |
| 16 | Sealing ring | 1545283 | 1 | (1542833) |
| 17 | Deflector | 70913 | 1 | |
| 18 | Ball bearing | 1660609 | 1 | (181670) |
| 19 | Sealing ring | 958811 | 1 | Included in repair kit 3830711. |
| 20 | O-ring | 925257 | 1 | |
| 21 | Sealing ring | 1660713 | 2 | |
| 22 | Hexagon screw | 942338 | 3 | |
| 22 | Hexagon screw | 955542 | 1 | |
| 23 | Hexagon screw | 955535 | 1 | |
| 24 | Spring washer | 942336 | 5 | |
| 25 | Washer | 940097 | 1 | |
| 26 | Thermostat housing | 470396 | 1 | |
| 27 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 28 | Gasket | 11996 | 1 | |
| 29 | Gasket | 423352 | 1 | |
| 30 | Thermostat housing | 470395 | 1 | |
| 31 | Hexagon screw | 959798 | 4 | |
| 31 | Hexagon screw | 959799 | 2 | L=165mm |
| 32 | Washer | 940097 | 2 | |
| 33 | Lower section | 468635 | 1 | |
| 34 | Gasket | 423351 | 1 | |
| 35 | Hexagon screw | 955535 | 5 | |
| 35 | Hexagon screw | 955541 | 2 | |
| 36 | Spring washer | 942336 | 7 | |
| 37 | Spring pin | 951973 | 2 | |
| 38 | Thermostat | 1544683 | 1 | 82° |
| 39 | V-belt pulley | 468445 | 1 | |
| 40 | Ball bearing | 181538 | 2 | |
| 41 | Spacer sleeve | 417638 | 1 | |
| 42 | Retaining ring | 914462 | 1 | |
| 43 | Anchorage | 475888 | 1 | |
| 44 | Connecting pipe | 845435 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 45 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 46 | Hose clamp | 943475 | 1 | |
| 47 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 48 | Hexagon screw | 940135 | 2 | |
| 49 | Spring washer | 941907 | 2 | |
| 50 | Plug | 952077 | 2 | |
| 51 | Sealing ring | 1544710 | 1 | |
| 52 | Sealing ring | 1544410 | 1 | |
| 53 | Hub | 476976 | 1 | |
| 54 | Hexagon screw | 955536 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 55 | Spring washer | 942336 | 4 | |
| 56 | Tube | 468858 | 1 | |
| 57 | Gasket | 468463 | 3 | |
| 58 | Plug | 467366 | 3 | |
| 59 | O-ring | 423281 | 6 | |
| 60 | Hexagon screw | 955525 | 12 | |
| 61 | Spring washer | 941907 | 12 | |
| 62 | Radiator hose | 470464 | 1 | (468216) |
| 63 | Hose clamp | 943479 | 2 | |
| 64 | Connecting pipe | 847449 | 1 | |
| 65 | O-ring | 925092 | 1 | |
| 66 | Hexagon screw | 940135 | 3 | |
| 67 | Spring washer | 941907 | 3 | |
| 68 | Plug | 952077 | 2 | |
| 69 | Reduction nipple | 190130 | 1 | |
| 70 | Nipple | 192555 | 1 | SN-XXXXXXXXXX/262417 |
| 22A | Spacer sleeve | 1542934 | 3 |
| Item | Part Name | Part No. |
| 2 | Shaft 468249 | 468249 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TAD740GE TD120C TD120G TD120HP-86 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD610G TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M TD610V TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD630ME TD630VE TD640VE TD710G TD71A TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD730ME TD730VE TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87 TID121KG-87 TID121KGP TID121KP-87, TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87, TID121LPB-87 TWD1210G TWD1211G TWD610G TWD610P TWD610V TWD630ME TWD630VE TWD710G TWD710P TWD710V TWD730ME, TWD731ME TWD740GE |
| Application | Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Thermostat and Water Pump with Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Thermostat and Water Pump with Installation Components: C Thermostat and Water Pump with Installation Components: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP Water Pump and Thermostat Housing, Earlier Prod. Water Pump and Thermostat SN-XXXXXXXXXX/21158 Water Pump, Components Water Pump, Components: 1675750 Water Pump, Components: 3183908 Water Pump, Components: 3183909 Water Pump, Components: 420759 Water Pump, Components: 477397 Water Pump, Components: 477770 Water Pump, Components: 8192050 Water Pump: 420759 Water Pump: 465884 Water Pump: 471500 Water Pump: 477397 Water Pump: C |
| Specification | |
| Descriptions | Included in repair kit 3830711. |
