Shaft 4776841

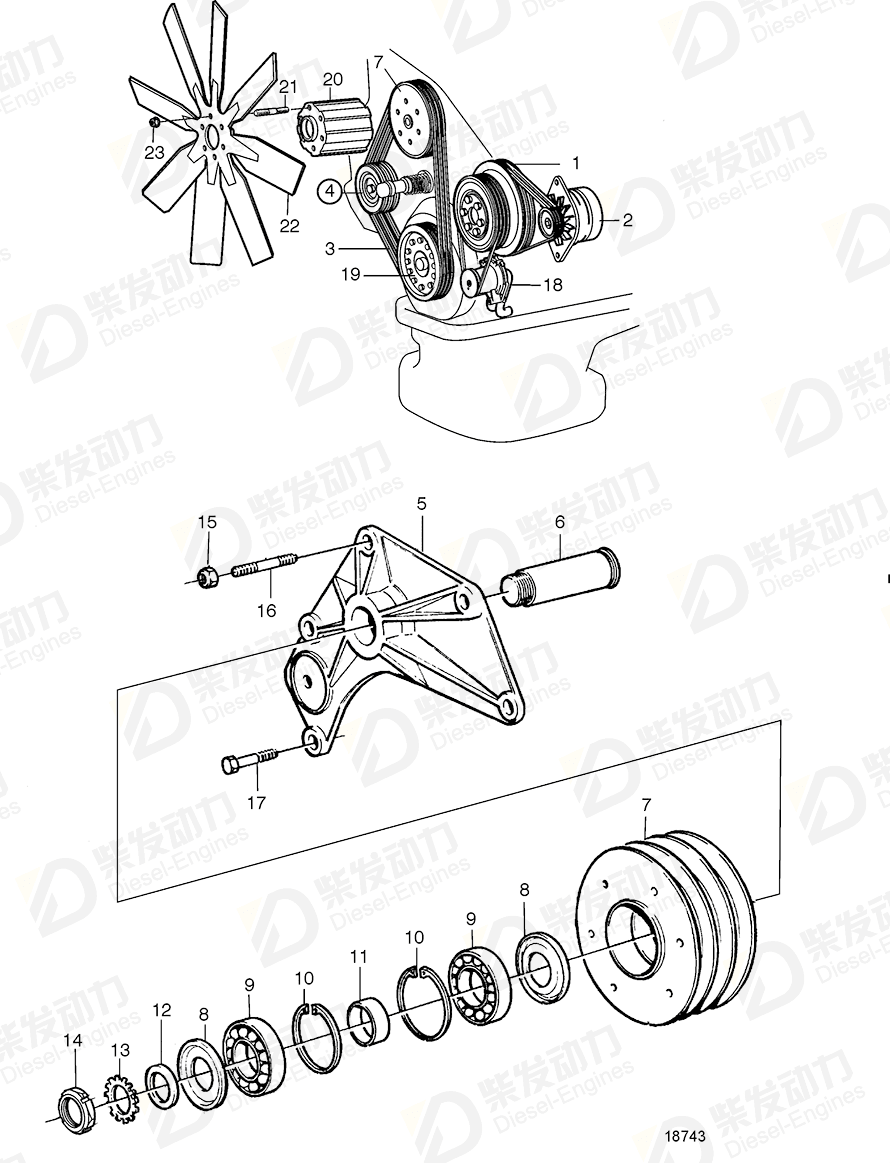

| No. | Part Name | Part Number | Qty | Description |
| 3 | V-belt | 967269 | 1 | |
| 6 | Shaft | 4776841 | 1 | |
| 7 | Pulley | 3826749 | 1 | |
| 8 | Sealing ring | 4785314 | 2 | |
| 9 | Ball bearing | 184822 | 2 | For 3826749 |
| 10 | Retaining ring | 914540 | 2 | |
| 11 | Spacer sleeve | 4776141 | 1 | |
| 12 | Spacer ring | 4776843 | 1 | |
| 13 | Lock washer | 907024 | 1 | |
| 14 | Castle nut | 478955 | 1 | (906634) |
| 15 | Flange nut | 971095 | 2 | Alt |
| 16 | Stud | 953000 | 2 | L=115mm |
| 17 | Flange screw | 946173 | 1 | |
| 20 | Fan hub | 3828711 | 1 | For plastic fan |
| 21 | Stud | 981590 | 6 | |
| 22 | Fan, suction type | 848925 | 1 | For external produced radiator., D=890mm, alt |
| 23 | Flange nut | 971095 | 6 | Alt |
| Item | Part Name | Part No. |
| 6 | Shaft 4776841 | 4776841 |
| Details | |
| Engine model | TAD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G, TAD1630G, TAD1630GE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630V |
| Application | Belt Transmission and Belt Tensioner Device Belt Transmission and Belt Tensioner Device: A Belt Transmission and Belt Tensioner Device: B Belt Transmission and Belt Tensioner Device: TAD1630 Belt Transmission and Belt Tensioner Device: TWD1630 Fan and Belt Transmission for Radiator Cooled Engine |
