Shaft 6631728

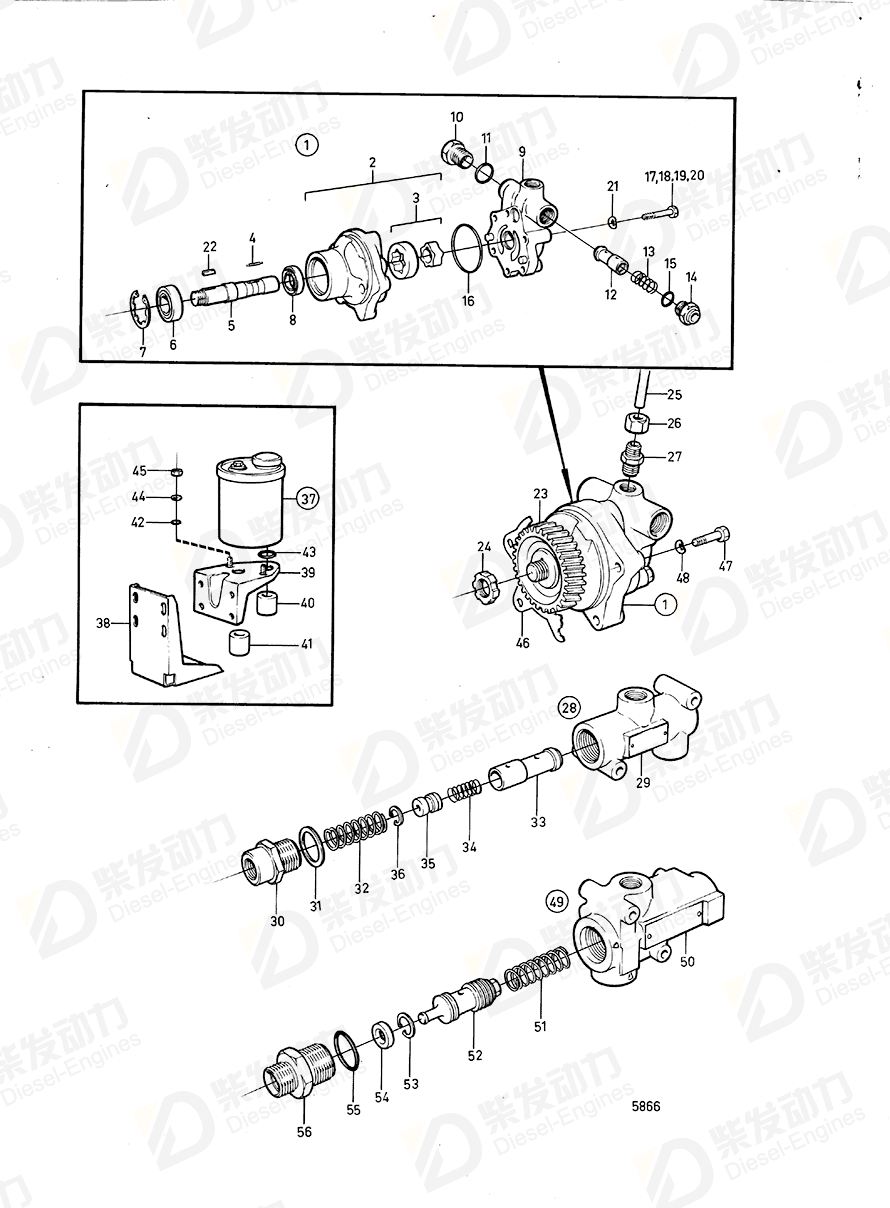

| No. | Part Name | Part Number | Qty | Description |
| 1 | Hydraulic pump | 823797 | 1 | |
| 2 | Oil pump housing | 6631726 | 1 | |
| 4 | Lock pin | 338433 | 1 | |
| 5 | Shaft | 6631728 | 1 | |
| 6 | Ball bearing | 181786 | 1 | |
| 7 | Lock ring | 323472 | 1 | |
| 8 | Sealing ring | 6631727 | 1 | |
| 9 | Cover | 6631702 | 1 | |
| 10 | Plug | 6631703 | 1 | |
| 11 | O-ring | 958229 | 1 | |
| 12 | Sleeve | 6631679 | 1 | |
| 13 | Spring | 6631676 | 1 | |
| 14 | Nipple | 6631678 | 1 | |
| 15 | O-ring | 958229 | 1 | |
| 17 | Hexagon screw | 955318 | 1 | |
| 18 | Hexagon screw | 955324 | 2 | L=60mm |
| 19 | Hexagon screw | 955320 | 2 | |
| 20 | Hexagon screw | 955326 | 1 | L=70mm |
| 21 | Spring washer | 941908 | 6 | |
| 22 | Key | 6631944 | 1 | |
| 23 | Gear | 422087 | 1 | |
| 24 | Nut | 346918 | 1 | |
| 25 | Inlet pipe | 4910655 | 1 | |
| 26 | Nut | 4910594 | 1 | |
| 27 | Nipple | 4910656 | 1 | |
| 28 | Control valve | 823798 | 1 | Repl by 844276 |
| 30 | Nipple | 6631678 | 1 | |
| 31 | O-ring | 958229 | 1 | |
| 32 | Spring | 6631676 | 1 | |
| 33 | Sleeve | 6631704 | 1 | |
| 34 | Spring | 6631674 | 1 | |
| 35 | Piston | 6631675 | 1 | |
| 36 | Lock ring | 836410 | 1 | |
| 37 | Oil cooler | 323138 | 1 | Repl by 1585613 |
| 37 | Reservoir | 327194 | 1 | |
| 38 | Bracket | 327077 | 1 | |
| 39 | Bracket | 328378 | 1 | |
| 40 | Connecting sleeve | 328379 | 1 | |
| 41 | Connecting sleeve | 328380 | 1 | |
| 42 | O-ring | 328381 | 2 | |
| 43 | O-ring | 328382 | 2 | |
| 44 | Spring washer | 941907 | 2 | |
| 45 | Hexagon nut | 955782 | 2 | |
| 46 | Gasket | 421187 | 1 | |
| 47 | Hexagon screw | 940115 | 2 | |
| 48 | Spring washer | 942336 | 2 | |
| 49 | Control valve | 844276 | 1 |
| Item | Part Name | Part No. |
| 5 | Shaft 6631728 | 6631728 |
| Details | |
| Engine model | D120A, TD120A D70B, TD70B TD100G, TD100G-85, TID100K TD100G-87, TID100K-87 TD120GG |
| Application | Hydraulic Pump and Control Valve with Installation Components Hydraulic Pump and Installation Components Hydraulic Pump: 349221 Hydraulic Pump: 356506 |
