Shaft 787605

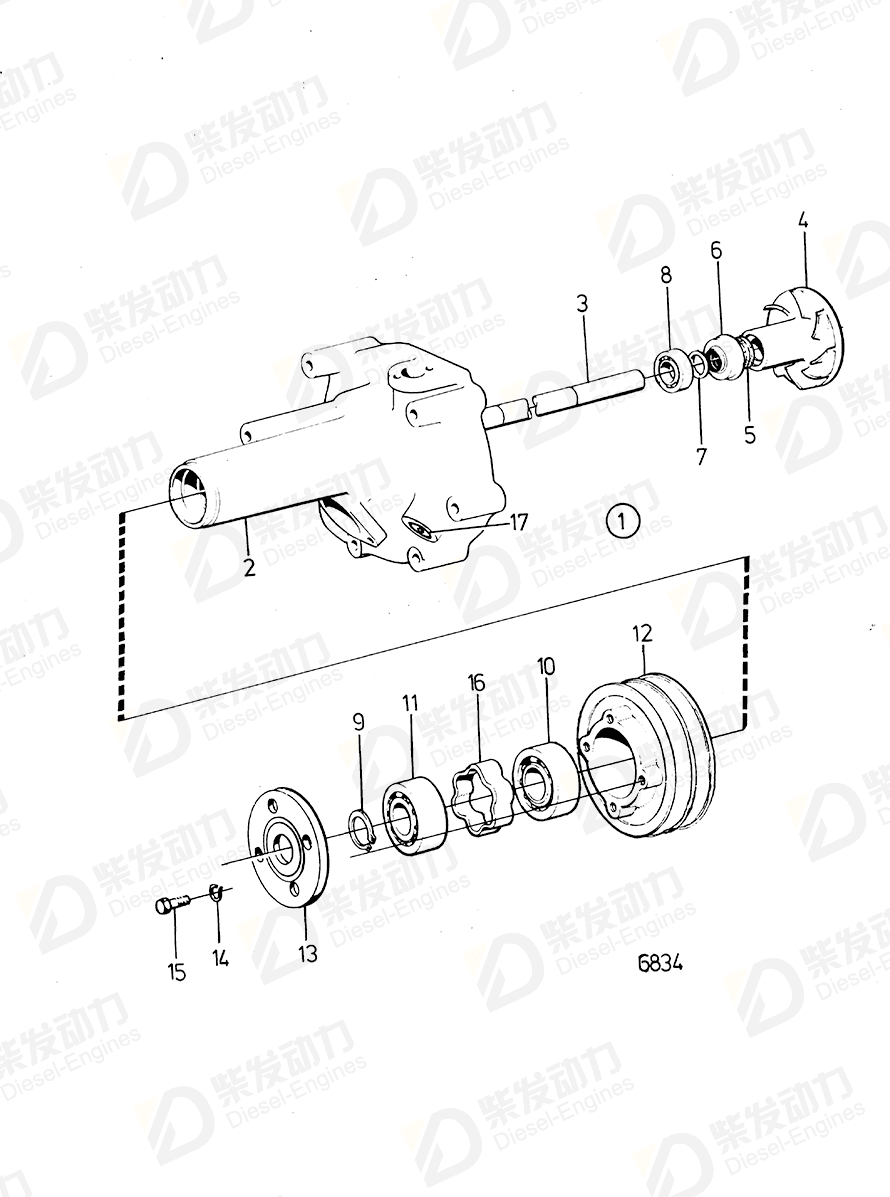

| No. | Part Name | Part Number | Qty | Description |
| 1 | Circulation pump | 4804424 | 1 | |
| 3 | Shaft | 787605 | 1 | |
| 4 | Impeller | 785505 | 1 | |
| 5 | Wear ring | 421306 | 1 | |
| 6 | Sealing ring | 1545283 | 1 | (1542833) |
| 7 | Deflector | 70913 | 1 | |
| 8 | Ball bearing | 1660609 | 1 | (181670) |
| 9 | Retaining ring | 914462 | 1 | |
| 10 | Ball bearing | 181538 | 1 | |
| 11 | Ball bearing | 11013 | 1 | |
| 12 | Pulley | 787606 | 1 | |
| 13 | Hub | 466286 | 1 | MOXXXXX/98708-. |
| 14 | Spring washer | 941907 | 2 | |
| 15 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 16 | Spacer sleeve | 417638 | 1 | |
| 17 | Plug | 968145 | 1 | (952357) |
| 17 | Overhaul kit | 6630337 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 3 | Shaft 787605 | 787605 |
| Details | |
| Engine model | TD45B |
| Application | Cooling Water Pump Repair Kit: B |
