Shim 20463855

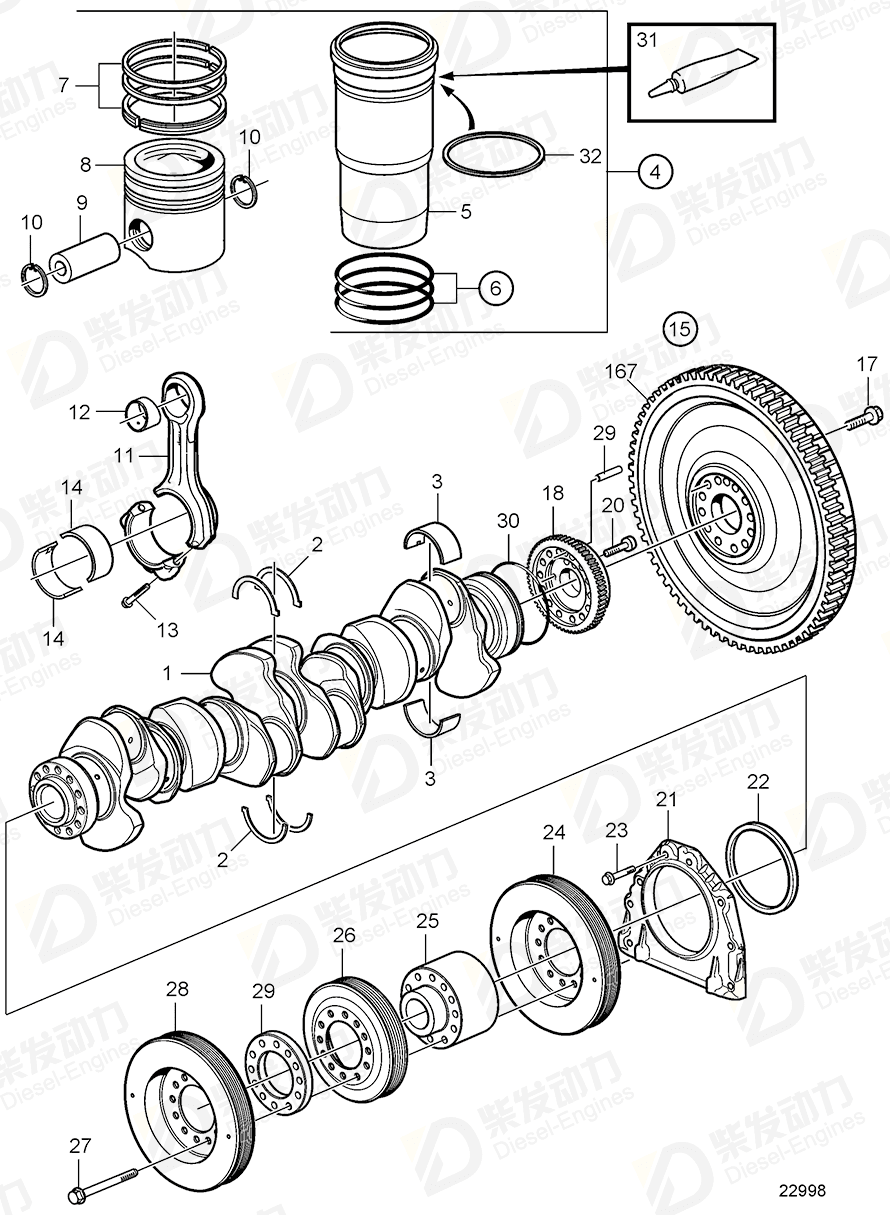

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 8148110 | 1 | |
| 2 | Thrust washer kit | 3093651 | 1 | |
| 3 | Main bearing kit | 85103707 | 7 | Std |
| 4 | Cylinder liner kit | 20508852 | 6 | |
| 7 | Piston ring kit | 85103700 | 1 | |
| 9 | Gudgeon pin | 3161285 | 1 | |
| 10 | Lock ring | 3161087 | 2 | |
| 11 | Connecting rod | 8148030 | 6 | |
| 13 | Flange screw, camshaft | 8192804 | 4 | |
| 14 | Big-end bearing kit | 85103713 | 6 | Std |
| 15 | Flywheel | 3589430 | 1 | |
| 16 | Ring gear | 20711957 | 1 | |
| 17 | Flange screw | 21340868 | 12 | |
| 18 | Gear, crankshaft | 8148111 | 1 | |
| 19 | Pin | 950658 | 1 | |
| 20 | Hex. socket screw | 941761 | 2 | |
| 21 | Crankshaft seal | 20513482 | 1 | |
| 21 | Cover | 20777236 | 1 | |
| 22 | Crankshaft seal | 21779548 | 1 | SN7011385241- |
| 22 | Crankshaft seal | 85108423 | 1 | |
| 23 | Flange screw | 984736 | 8 | |
| 24 | Vibration damper | 3586367 | 1 | |
| 25 | Spacer | 888657 | 1 | |
| 26 | Pulley | 888704 | 1 | |
| 27 | Flange screw | 984824 | 12 | M8x140mm |
| 28 | Vibration damper | 3586367 | 1 | |
| 29 | Spacer | 3837447 | 1 | |
| 30 | O-ring | 949736 | 1 | |
| 31 | Sealant | 1161231 | 1 | 304ml |
| 31 | Sealant | 1161277 | 1 | 20g |
| 32 | Shim | 20463853 | 1 | TH=0,2mm |
| 32 | Shim | 20463854 | 1 | TH=0,3mm |
| 32 | Shim | 20463855 | 1 | TH=0,5mm |
| Item | Part Name | Part No. |
| 32 | Shim 20463855 | 20463855 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD940VE, TAD941VE, TAD942VE TAD943VE TAD950VE, TAD951VE, TAD952VE |
| Application | Crank Mechanism Repair Kits |
| Specification | |
| Descriptions | 0,50mm TH=0,5mm TJ=0,5mm (3807678) |
