Shim 3978761

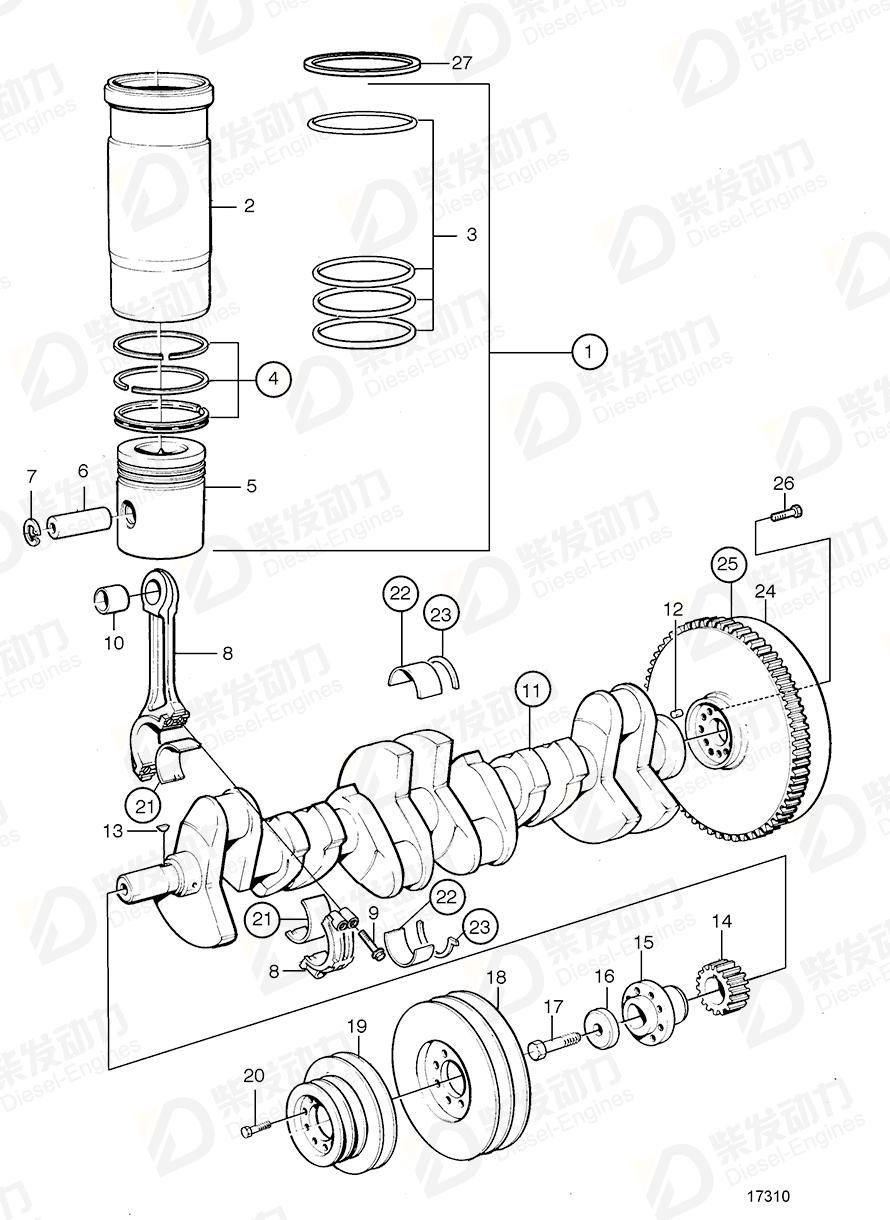

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 3839263 | 6 | (877081) |
| 3 | Sealing ring kit | 271159 | 6 | |
| 4 | Piston ring | 276905 | 6 | |
| 6 | Gudgeon pin | 8192764 | 6 | |
| 7 | Retaining ring | 914526 | 12 | |
| 8 | Connecting rod | 8192800 | 6 | |
| 9 | Flange screw, camshaft | 8192804 | 24 | |
| 10 | Bushing | 8192803 | 6 | |
| 11 | Crankshaft | 3807224 | 1 | (3137903) |
| 12 | Pin | 950681 | 1 | |
| 13 | Woodruff key | 422253 | 1 | |
| 14 | Gear, crankshaft | 471528 | 1 | |
| 15 | Hub | 465779 | 1 | |
| 16 | Washer | 420124 | 1 | |
| 17 | Flange screw | 470366 | 1 | |
| 18 | Vibration damper | 3826416 | 1 | |
| 19 | Pulley | 4772117 | 1 | 3-groove |
| 20 | Flange screw | 471529 | 8 | |
| 21 | Big-end bearing kit | 276909 | 6 | Std |
| 21 | Big end bearing kit | 276910 | 6 | 0,25mm u.s |
| 21 | Big end bearing kit | 276911 | 6 | 0,50mm u.s |
| 21 | Big end bearing kit | 276912 | 6 | 0,76mm u.s |
| 22 | Main bearing kit | 276894 | 7 | SN2071097293-, Std |
| 22 | Main bearing kit | 276895 | 7 | SN2071097293-, U.S=0,25mm |
| 22 | Main bearing kit | 276896 | 7 | SN2071097293-, U.S=0,50mm |
| 22 | Main bearing kit | 276897 | 7 | SN2071097293-, U.S=0,76mm |
| 22 | Main bearing kit | 276898 | 7 | SN2071097293-, U.S=1,01mm |
| 22 | Main bearing kit | 276899 | 7 | SN2071097293-, U.S=1,27mm |
| 23 | Thrust washer kit | 276890 | 1 | SN2071097293-, Std |
| 23 | Thrust washer kit | 276891 | 1 | SN2071097293-, O.S=0,10mm |
| 23 | Thrust washer kit | 276892 | 1 | SN2071097293-, O.S=0,20mm |
| 23 | Thrust washer kit | 276893 | 1 | SN2071097293-, O.S=0,30mm |
| 24 | Flywheel | 3825732 | 1 | |
| 24 | Flywheel | 3841132 | 1 | SAE 1, 14'' DISC |
| 25 | Ring gear | 420314 | 1 | |
| 25 | Ring gear | 20711957 | 1 | |
| 26 | Flange screw | 465815 | 9 | |
| 26 | Flange screw | 465825 | 9 | |
| 27 | Shim | 3978758 | 1 | TH=0.12mm |
| 27 | Shim | 3978759 | 1 | TH=0.20mm |
| 27 | Shim | 3978760 | 1 | TH=0.30mm |
| 27 | Shim | 3978761 | 1 | TH=0.50mm |
| Item | Part Name | Part No. |
| 27 | Shim 3978761 | 3978761 |
| Details | |
| Engine model | TAD730V TAD741GE TD71A, TID71A, TWD710V TD730VE, TWD731VE TWD740GE, TAD740GE TWD740VE |
| Application | Crank Mechanism Crank Mechanism SN2071097293-: A Crank Mechanism SN2071097293-: B Crank Mechanism SN2071097293-: C Crank Mechanism: A Crank Mechanism: B |
| Specification | |
| Descriptions | TH=0.50mm Use only when repairing., TH=0,50mm |
