Shim 6876112

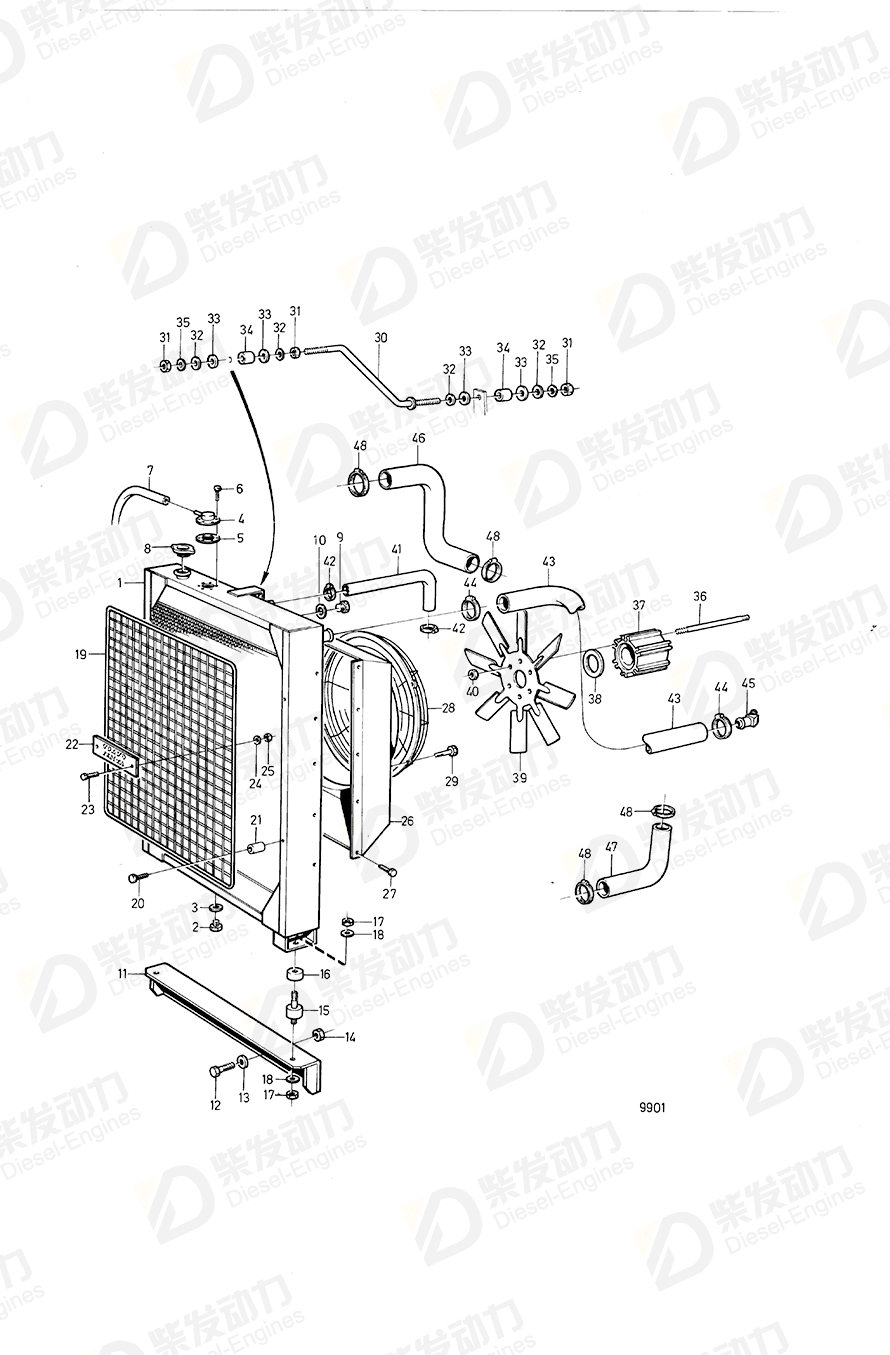

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 863063 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Delivery valve | 848723 | 1 | |
| 5 | Rubber gasket | 848715 | 1 | |
| 7 | Hose | 192618 | 1 | L=1400mm |
| 8 | Pressure cap | 350578 | 1 | (321973) |
| 9 | Plug | 947660 | 1 | (836268) |
| 10 | Gasket | 11994 | 1 | |
| 11 | Radiator anchorage | 863290 | 1 | |
| 12 | Flange screw | 946817 | 4 | |
| 13 | Washer | 192404 | 2 | |
| 14 | Flange nut | 971096 | 4 | |
| 15 | Rubber cushion | 849170 | 2 | |
| 16 | Sleeve | 807228 | 2 | |
| 17 | Hexagon nut | 955850 | 4 | |
| 18 | Spring washer | 940280 | 4 | |
| 19 | Radiator protector | 862959 | 1 | |
| 20 | Flange screw | 947760 | 6 | M8x40mm |
| 21 | Spacer sleeve | 833243 | 6 | |
| 22 | Emblem | 846118 | 1 | |
| 23 | Screw | 941651 | 2 | |
| 24 | Washer | 192404 | 2 | |
| 25 | Lock nut | 963103 | 2 | |
| 26 | Fan shroud | 848887 | 1 | D=770mm |
| 27 | Flange screw | 946025 | 12 | |
| 28 | Fan protector | 862966 | 2 | Repl by 865884 |
| 29 | Flange screw | 947107 | 4 | |
| 30 | Radiator stay | 848830 | 1 | |
| 31 | Hexagon nut | 955793 | 3 | |
| 32 | Washer | 191940 | 4 | |
| 33 | Rubber washer | 252203 | 4 | |
| 34 | Spacer sleeve | 252202 | 2 | |
| 35 | Spring washer | 941912 | 2 | |
| 36 | Stud | 948932 | 6 | |
| 37 | Fan hub | 863027 | 1 | |
| 38 | Shim | 6876112 | 1 | |
| 39 | Fan, suction type | 843868 | 1 | D=750mm |
| 39 | Fan, pusher type | 843869 | 1 | D=750mm |
| 40 | Flange nut | 971095 | 6 | Alt |
| 41 | Hose | 13776 | 1 | L=450mm early type |
| 42 | Hose clamp | 994556 | 2 | |
| 43 | Rubber hose | 944386 | 1 | |
| 44 | Hose clamp | 994560 | 2 | |
| 45 | Elbow nipple | 942649 | 1 | |
| 46 | Hose | 848826 | 1 | Radiator-thermostat housing. |
| 47 | Radiator hose | 848827 | 1 | Radiator-water pump. |
| 48 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| Item | Part Name | Part No. |
| 38 | Shim 6876112 | 6876112 |
| Details | |
| Engine model | TD1210G, TWD1210G TD121GGP-87 TID121KGP TID121LGP TWD1211G |
| Application | Radiator and Fan with Installation Components, Gen Pac, Alt Radiator and Fan with Installation Components, Gen Pac, Alt: A Radiator and Fan with Installation Components, Gen Pac, Alt: B Radiator and Fan, SN-2120211549: A Radiator and Fan, SN-2120211549: B |
