Shut-off cock 82744

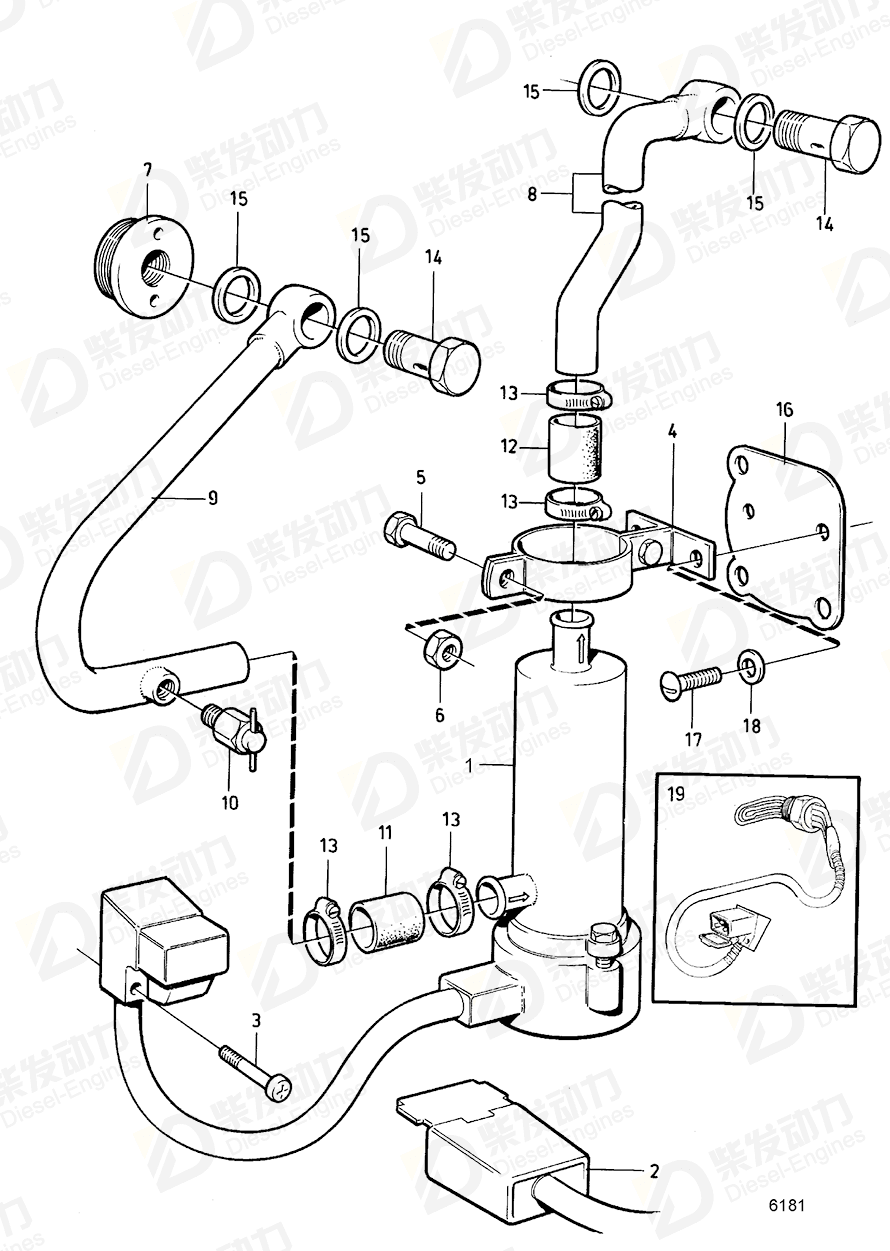

| No. | Part Name | Part Number | Qty | Description |
| 1 | Engine heater | 822349 | 1 | Early type |
| 7 | Plug | 821335 | 1 | |
| 8 | Tube | 822479 | 1 | |
| 9 | Tube | 822477 | 1 | |
| 10 | Shut-off cock | 82744 | 1 | |
| 11 | Hose | 952970 | 1 | L=50mm |
| 12 | Hose | 952970 | 1 | L=50mm |
| 13 | Hose clamp | 943474 | 4 | |
| 14 | Hollow screw | 804478 | 2 | |
| 15 | Gasket | 957185 | 4 | |
| 16 | Seal flange | 822503 | 1 | |
| 17 | Screw | 950032 | 2 | |
| 18 | Spring washer | 941906 | 2 | |
| 19 | Engine heater | 1129309 | 1 | Not included in set of tools 821127. |
| Item | Part Name | Part No. |
| 10 | Shut-off cock 82744 | 82744 |
| Details | |
| Engine model | D100BHC, TD100AHC D100BRC, TD100ARC D120A, TD120A D42A D70B D70B, TD70B D70CHC D70CHC, TD70CHC D70CRC, TD70CRC TAD1631G, TAD1631GE TD100CRC TD120AHC TD120ARC TD120BRC TD120C TD120G, TD120GG TD121CRC TD70B TD70CHC TD70G TID120FG TID162AG, TID162AGP, TID162AP, TID162APB TWD1010G TWD1030ME TWD1031VE TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V, TWD1230VE TWD1230ME TWD1230VE TWD1231VE TWD1620G TWD1630G TWD1630P TWD1630V |
| Application | Circulation Pump and Thermostat with Installation Components Engine Heater and Installation Components Engine Heather and Installation Components External Cooling System, Induction Manifold and Intercooler HEAT EXCHANGER AND THERMOSTAT WITH INSTALLATION COMPONENTS Induction Manifold and Installation Components Induction Manifold and Intercooler Inlet Manifold and Aftercooler Inlet Manifold and Installation Components Inlet Manifold with Intercooler, High Mounted Turbo Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, low mounted Turbo Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B Oil Cooler and Installation Components Oil Cooler Front End Mounted and Installation Components OIL COOLER FRONT END MOUNTED AND RELATED PARTS OIL COOLER WITH INSTALLATION COMPONENTS Oil Cooler, Front End Mounted and Related Parts Oil Cooler, Front End Mounted with Installation Components Oil Cooler, Twin: 823811 Oil Cooler, Twin: 823812 Oil Cooler-fitted on Front: 823811 Oil Cooler-fitted on Front: 823812 RADIATOR AND FAN WITH INST.COMPS SPEC.867113, 867131, 16053, 867638 Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B |
| Specification | |
| Descriptions | Classified engine, Alt MO-XXXXX/41529 |
