Six point screw 993922

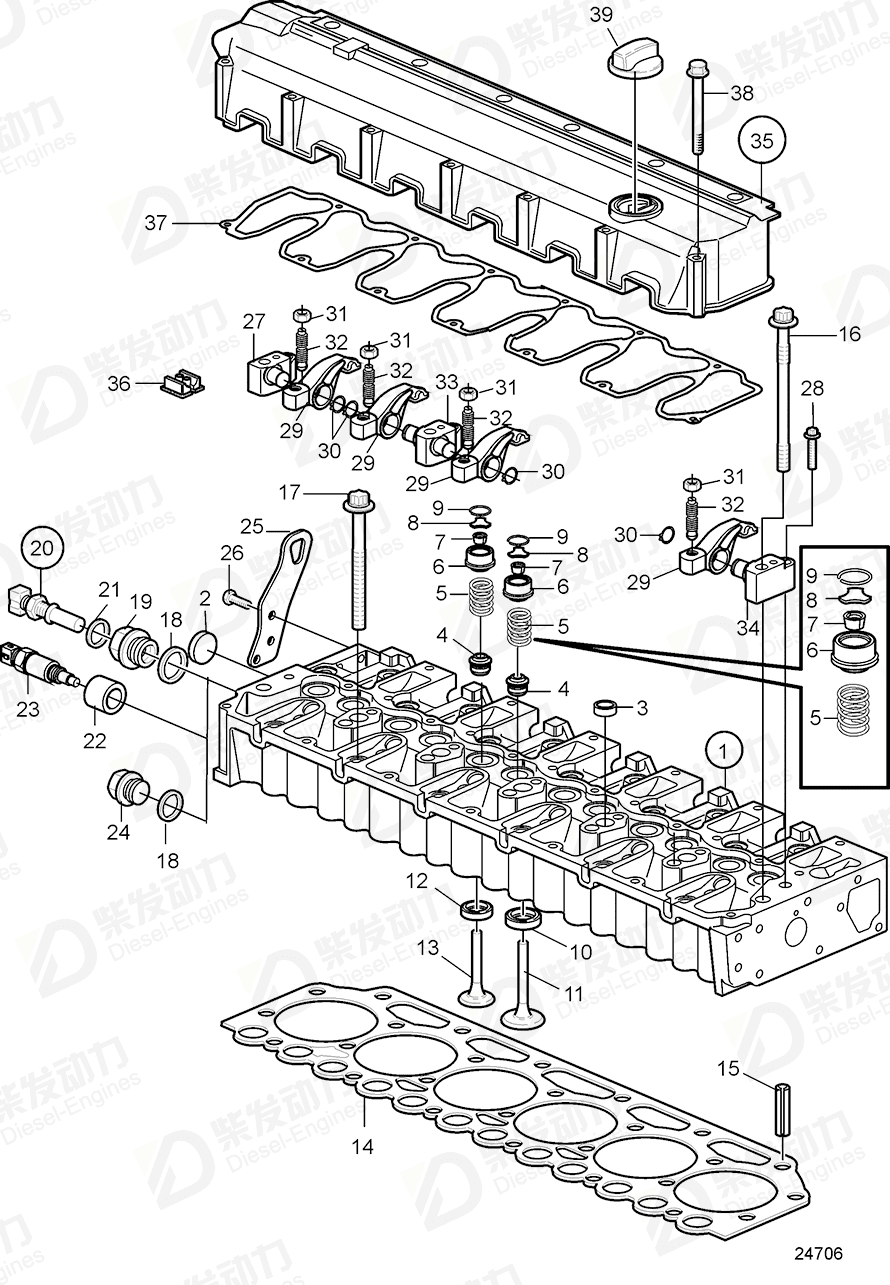

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3801233 | 1 | SN10128118- |
| 2 | Cap plug | 20412745 | 5 | |
| 3 | Cap plug | 20412733 | 5 | |
| 4 | Valve stem seal | 20459855 | 12 | |
| 5 | Valve spring | 20459851 | 12 | |
| 6 | Spring disc | 20840747 | 12 | |
| 7 | Valve cotter | 20459857 | 24 | |
| 8 | Lock ring | 20840772 | 12 | |
| 9 | Thrust washer | 20840807 | 12 | |
| 10 | Valve seat | 20459852 | 6 | |
| 11 | Inlet valve | 21026535 | 6 | SN10155364- |
| 12 | Valve seat | 20459854 | 6 | |
| 13 | Exhaust valve | 21026536 | 6 | SN10155364- |
| 14 | Cylinder head gasket | 20795944 | 1 | TH=1,41mm, Two dots |
| 14 | Cylinder head gasket, cylinder head | 20798183 | 1 | TH=1,26mm, One dot |
| 14 | Cylinder head gasket, cylinder head | 20798191 | 1 | TH=1,46mm, Three dots |
| 15 | Spring pin | 20459839 | 2 | |
| 16 | Flange screw | 20459837 | 7 | |
| 17 | Flange screw | 20459838 | 19 | |
| 18 | Gasket | 947628 | 1 | |
| 19 | Adapter | 20450683 | 1 | EDC IV |
| 20 | Sensor, coolant temperature | 20513340 | 1 | |
| 21 | Gasket | 969011 | 1 | |
| 24 | Plug | 20464451 | 1 | |
| 27 | Bracket | 20459849 | 1 | |
| 28 | Six point screw | 993922 | 7 | |
| 29 | Rocker arm | 21448926 | 12 | |
| 30 | Lock ring | 20840772 | 12 | |
| 31 | Hexagon nut | 11700373 | 12 | |
| 32 | Adjusting screw | 20405524 | 12 | |
| 33 | Bracket | 20459847 | 5 | |
| 34 | Bracket | 20459848 | 1 | |
| 35 | Valve cover | 20558810 | 1 | |
| 35 | Valve cover | 20558880 | 1 | SN00702242-, Replaced by 20558810 |
| 36 | Cap | 20412590 | 1 | |
| 37 | Gasket | 20558929 | 1 | |
| 38 | Flange screw | 20459830 | 13 | |
| 39 | Filler cap | 20412589 | 1 |
| Item | Part Name | Part No. |
| 28 | Six point screw 993922 | 993922 |
| Details | |
| Engine model | TAD620VE TD420VE, TAD420VE |
| Application | Cylinder Head SN-10128117 Cylinder Head SN-10155363 Cylinder Head SN10128118- Cylinder Head SN10155364- |
| Specification | |
| Descriptions | L=45mm |
