Six point socket scr 972408

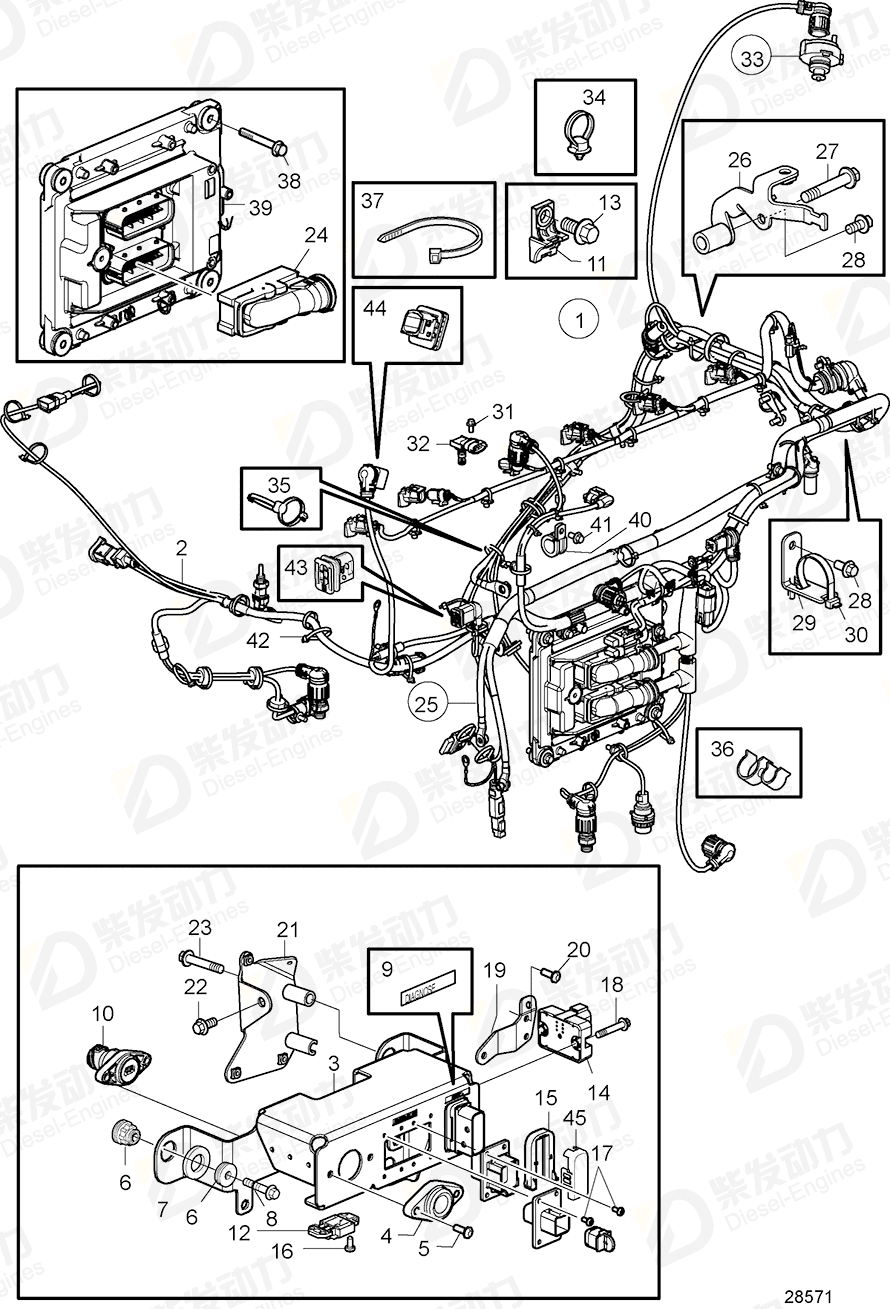

| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness | 22611427 | 1 | |
| 3 | Bracket | 21902197 | 1 | |
| 4 | Cover | 21738845 | 1 | |
| 5 | Six point socket scr | 986214 | 2 | |
| 6 | Damping element | 22008175 | 1 | Contains 4 X 22360238 and 4 X 22360634 |
| 7 | Washer | 120224 | 3 | |
| 8 | Flange screw | 984738 | 3 | |
| 10 | Button | 21827824 | 1 | |
| 11 | Cable tie | 993183 | 3 | |
| 12 | Retainer | 873944 | 1 | |
| 13 | Flange screw | 984733 | 3 | |
| 14 | Control unit | 21918597 | 1 | |
| 15 | Adapter | 994291 | 1 | |
| 16 | Six point socket scr | 972408 | 2 | |
| 17 | Six point socket scr | 972399 | 8 | |
| 18 | Six point socket scr | 972410 | 2 | |
| 19 | Bracket | 21920976 | 1 | |
| 20 | Flange screw | 984735 | 2 | |
| 21 | Bracket | 22285250 | 1 | |
| 22 | Flange screw | 984814 | 1 | |
| 23 | Flange screw | 990813 | 2 | |
| 26 | Bracket | 22131797 | 1 | |
| 27 | Flange screw | 984756 | 1 | |
| 28 | Flange screw | 984733 | 2 | |
| 29 | Bracket | 22174654 | 1 | |
| 30 | Cable tie | 980464 | 1 | |
| 31 | Flange screw | 984724 | 1 | |
| 32 | Sensor | 22422785 | 1 | |
| 34 | Cable tie | 990073 | 1 | For cable to unit injectors. |
| 35 | Retainer | 20885496 | 1 | |
| 36 | Retainer | 3545508 | 1 | |
| 37 | Cable tie | 948211 | 1 | |
| 38 | Flange screw | 984738 | 4 | |
| 40 | Clamp | 952630 | 1 | D = 17.5 MM LATE TYPE |
| 41 | Flange screw | 984724 | 1 | |
| 42 | Cable tie | 980881 | 1 | |
| 43 | Cover | 995107 | 1 | |
| 44 | Cover | 995108 | 1 | |
| 45 | Cover | 995116 | 1 |
| Item | Part Name | Part No. |
| 16 | Six point socket scr 972408 | 972408 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE |
| Application | Electric system, engine wiring harness Electrical System |
