Sleeve 1542266

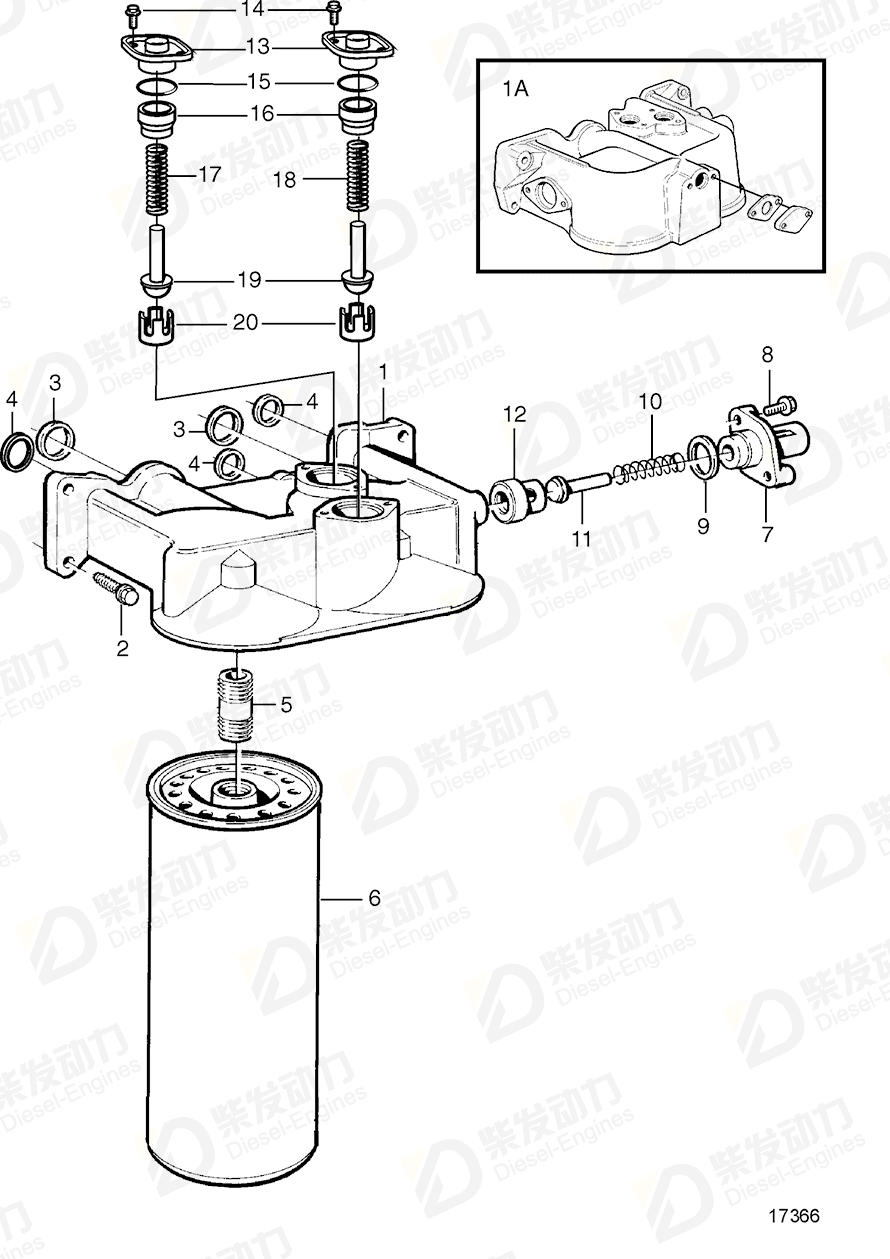

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 1543466 | 1 | |
| 2 | Flange screw | 946470 | 1 | |
| 2 | Flange screw | 946671 | 3 | |
| 3 | Sealing ring | 8192187 | 2 | |
| 4 | Sealing ring | 8192189 | 3 | |
| 5 | Nipple | 1543276 | 2 | |
| 6 | Oil filter | 478736 | 2 | |
| 7 | Housing | 1543608 | 1 | |
| 8 | Flange screw | 946671 | 2 | |
| 9 | Sealing ring | 1543577 | 1 | |
| 10 | Compression spring | 1543611 | 1 | |
| 11 | Peg | 1543610 | 1 | |
| 12 | Seat | 1543964 | 1 | |
| 13 | Cover | 1542267 | 2 | |
| 14 | Flange screw | 945414 | 4 | |
| 15 | Sealing ring | 1543577 | 2 | |
| 16 | Sleeve | 1542266 | 2 | |
| 17 | Compression spring | 466653 | 1 | |
| 18 | Compression spring | 466653 | 1 | |
| 19 | Valve cone | 471085 | 2 | |
| 1A | Oil filter housing | 3826150 | 1 | |
| 20 | Valve seat | 1542265 | 2 |
| Item | Part Name | Part No. |
| 16 | Sleeve 1542266 | 1542266 |
| Details | |
| Engine model | TAD1630P, TWD1630P TD30A TD31ACE TD40A TID162AG, TID162AGP, TID162AP, TID162APB |
| Application | Oil Filter Oil Filter and Installation Components Oil Filter and Installation Components: A Oil Filter and Installation Components: B Oil Filter and Installation Components: C Oil Filter Housing Oil Filter Housing and Oil Filter |
