Spacer 1676648

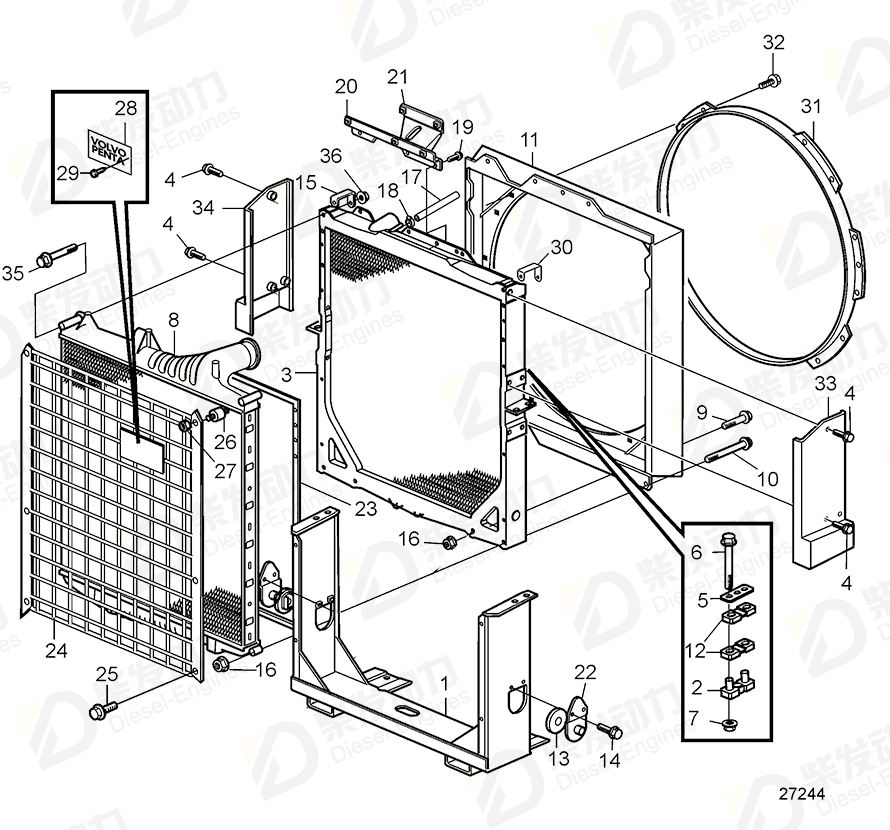

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator bracket | 3588452 | 1 | |
| 2 | Spacer | 1676648 | 2 | |
| 3 | Radiator | 20722448 | 1 | |
| 4 | Flange screw | 984737 | 6 | |
| 5 | Plate | 1665309 | 2 | |
| 6 | Flange screw | 984758 | 4 | |
| 7 | Flange nut | 990941 | 4 | |
| 8 | Charge air cooler | 3183748 | 1 | |
| 9 | Flange screw | 984744 | 2 | |
| 10 | Flange screw | 984749 | 2 | |
| 11 | Fan shroud | 3837478 | 1 | |
| 12 | Rubber cushion | 1665312 | 4 | |
| 13 | Rubber cushion | 1665322 | 2 | |
| 14 | Flange screw | 984733 | 6 | |
| 15 | Bracket | 3835324 | 2 | |
| 16 | Flange lock nut | 990950 | 4 | |
| 17 | Rubber hose | 990536 | 1 | L=400mm |
| 18 | Hose clamp | 994556 | 1 | |
| 19 | Flange screw | 984734 | 4 | |
| 20 | Bracket | 3835505 | 1 | |
| 21 | Bracket | 3819733 | 1 | |
| 22 | Bracket | 1676328 | 2 | |
| 23 | Sealing strip | 3827817 | 4 | L=900mm |
| 24 | Radiator protector | 3828184 | 1 | |
| 25 | Flange screw | 984734 | 4 | |
| 26 | Vibration damper | 866461 | 2 | |
| 27 | Flange lock nut | 990949 | 6 | |
| 28 | Emblem | 846118 | 1 | |
| 29 | Six point socket scr | 969514 | 2 | |
| 30 | Bracket | 3835324 | 1 | |
| 31 | Fan ring | 3827612 | 1 | |
| 32 | Flange screw | 994386 | 12 | |
| 33 | Radiator casing | 3837474 | 1 | Right |
| 34 | Radiator casing | 3837475 | 1 | Left |
| 35 | Flange screw | 994390 | 2 | |
| 36 | Flange lock nut | 990950 | 2 |
| Item | Part Name | Part No. |
| 2 | Spacer 1676648 | 1676648 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TWD1240VE |
| Application | Radiator and Fan Radiator and Fan Cover. Mobile Application Radiator and Fan D=750mm Radiator and fan D=890mm Radiator and Fan D=890mm. Suction Radiator and Fan. Suction Radiator, Suction Visco Fan Radiator. D=890mm |
