Spacer 848534

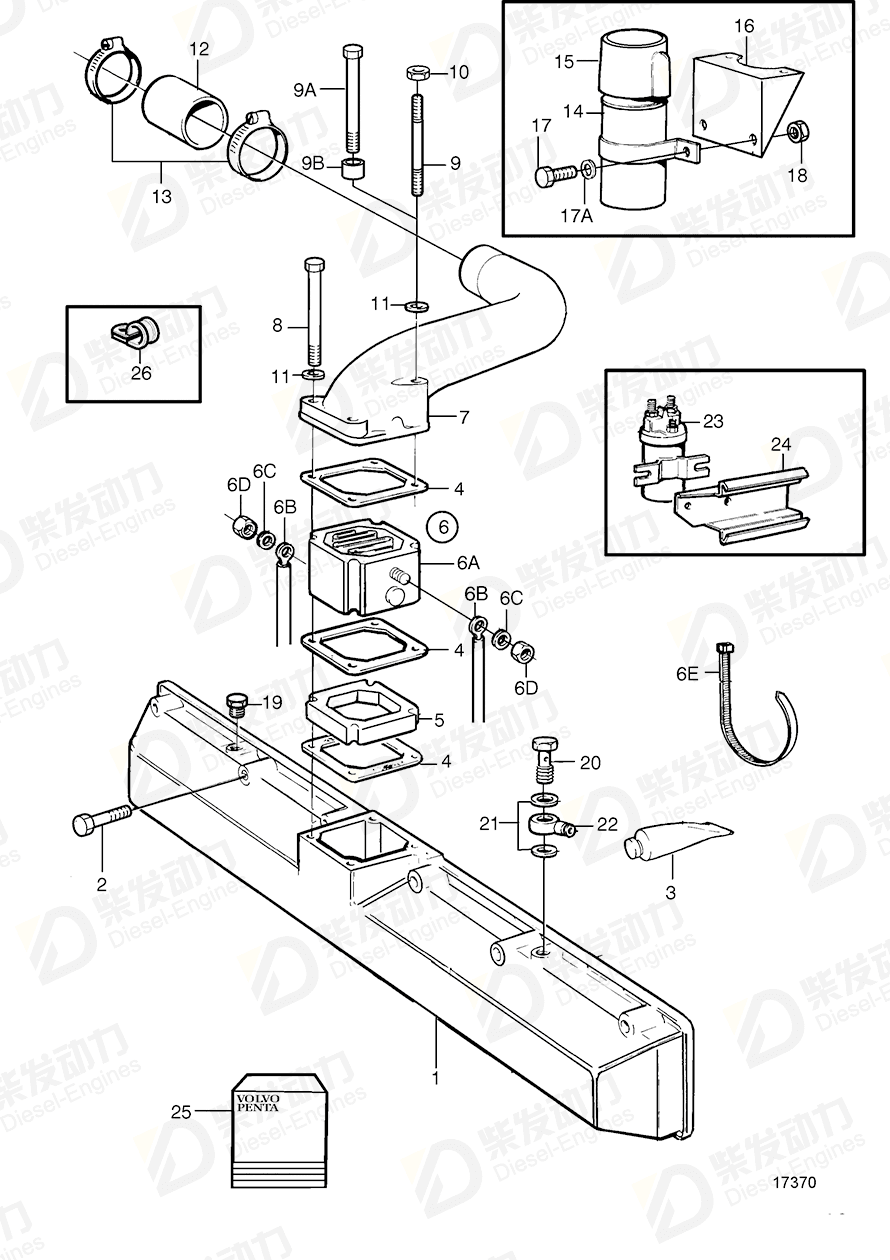

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 420509 | 1 | |
| 2 | Flange screw | 965180 | 12 | |
| 3 | Sealant | 1161231 | 1 | 304ml |
| 4 | Gasket | 471682 | 3 | Included in gasket kit. |
| 5 | Spacer | 848534 | 1 | |
| 6 | Starter element | 848959 | 1 | 24V |
| 7 | Tube | 465251 | 1 | SEE GROUP 3 |
| 8 | Hexagon screw | 955311 | 2 | |
| 9 | Spacer sleeve | 847150 | 2 | |
| 9 | Hexagon screw | 968303 | 2 | |
| 12 | Hose | 847385 | 1 | |
| 13 | Hose clamp | 943479 | 2 | |
| 14 | Relay | 873962 | 1 | |
| 15 | Casing | 1581123 | 1 | |
| 16 | Attaching plate | 843400 | 1 | |
| 17 | Six point socket scr | 969405 | 2 | (955244) |
| 18 | Flange lock nut | 949874 | 2 | |
| 19 | Plug | 479979 | 1 | |
| 25 | Intake gasket kit | 876336 | 1 | See group 99 |
| 26 | Clamp | 949746 | 1 | |
| 6C | Washer | 955894 | 2 | |
| 6D | Hexagon nut | 17624 | 2 | |
| 6E | Cable tie | 948211 | 3 | |
| 17A | Washer | 940090 | 2 |
| Item | Part Name | Part No. |
| 5 | Spacer 848534 | 848534 |
| Details | |
| Engine model | TD610G TD610M TD610V TD61A TD61ACE TD61AG TD61AP TD630ME TD630VE TD640VE |
| Application | Induction Manifold with Installation Components Induction Manifold with Installation Components: A Induction Manifold with Installation Components: B Induction Manifold with Installation Components: TD61AGP Inlet Manifold Inlet Manifold: A Inlet Manifold: B Inlet Manifold: C |
