Spacer 863412

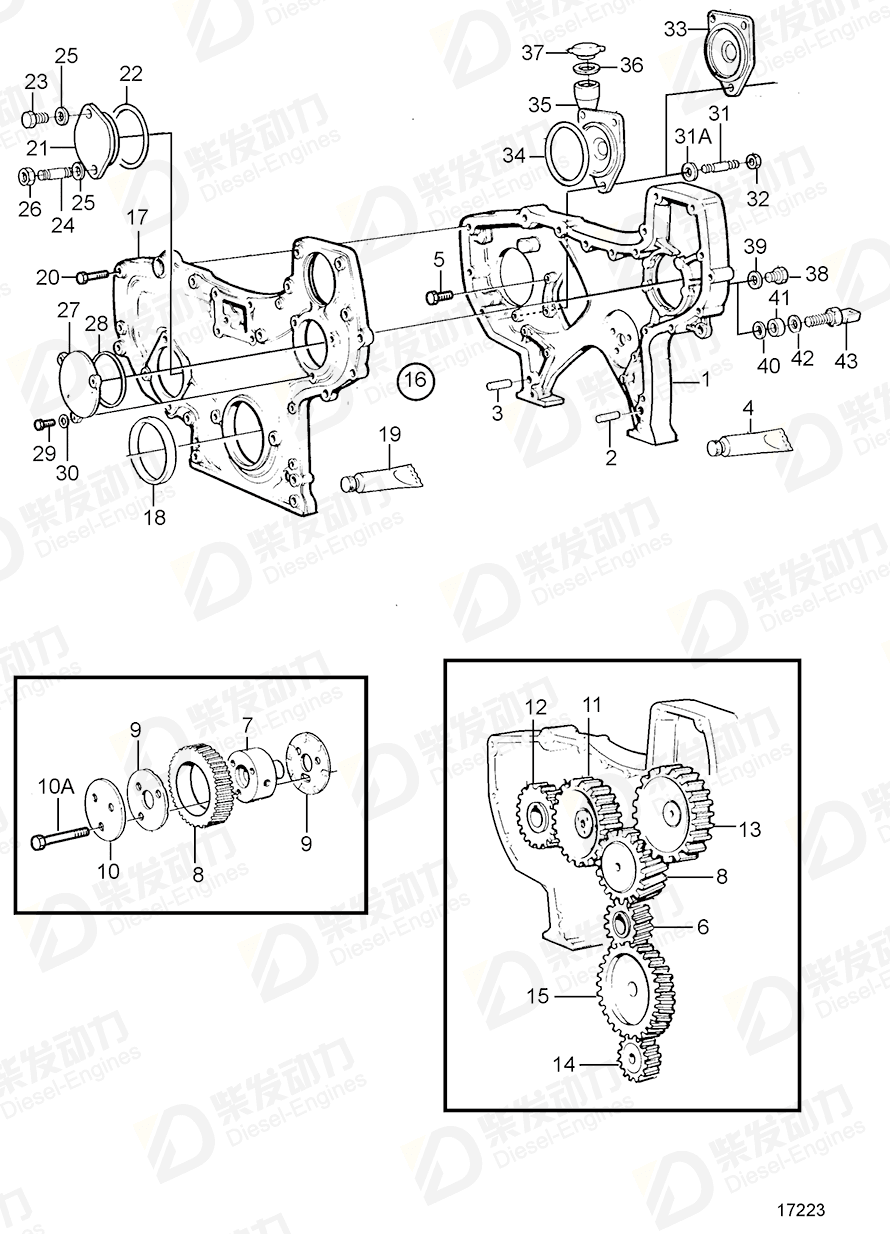

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 471505 | 1 | |
| 2 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Sealant | 1161231 | 1 | 304ml |
| 4 | Sealant | 1161277 | 1 | 20g |
| 5 | Flange screw | 471534 | 2 | |
| 7 | Bearing spindle | 479779 | 1 | |
| 8 | Idler gear | 8192578 | 1 | |
| 9 | Thrust washer | 478951 | 2 | |
| 10 | Bearing shield | 478954 | 1 | |
| 16 | Cover | 8192590 | 1 | (8192052) (471562) |
| 18 | Sealing ring | 477118 | 1 | (471055) |
| 19 | Sealant | 1161231 | 1 | 304ml |
| 19 | Sealant | 1161277 | 1 | 20g |
| 20 | Flange screw | 947760 | 6 | M8x40mm |
| 20 | Flange screw | 948217 | 2 | |
| 20 | Flange screw | 965182 | 6 | |
| 20 | Flange screw | 965183 | 1 | |
| 20 | Flange screw | 965216 | 2 | |
| 20 | Flange screw | 965225 | 1 | |
| 21 | Cover | 465735 | 1 | (465057) |
| 22 | O-ring | 925094 | 1 | Included in gasket kit 876025 for induction manifold+intercooler. |
| 23 | Flange screw | 965222 | 1 | L=65mm |
| 24 | Stud | 479973 | 1 | |
| 25 | Washer | 955895 | 2 | |
| 26 | Flange nut | 971095 | 1 | Alt |
| 27 | Cover | 471559 | 1 | |
| 28 | O-ring | 925257 | 1 | |
| 29 | Flange screw | 945444 | 3 | |
| 30 | Spring washer | 941907 | 3 | |
| 31 | Stud | 967951 | 3 | |
| 32 | Flange nut | 971097 | 3 | |
| 33 | Cover | 420178 | 1 | |
| 34 | O-ring | 975610 | 1 | For engines without air compressor. |
| 35 | Oil filler pipe | 849197 | 1 | |
| 36 | Gasket | 1275379 | 1 | |
| 37 | Oil filler cap | 421753 | 1 | |
| 38 | Plug | 960632 | 1 | |
| 39 | Gasket | 947624 | 1 | |
| 40 | O-ring | 949656 | 1 | |
| 41 | Spacer | 863412 | 1 | |
| 42 | Gasket | 947624 | 1 | |
| 10A | Flange screw | 8192579 | 3 | |
| 31A | Spring washer | 941911 | 3 |
| Item | Part Name | Part No. |
| 41 | Spacer 863412 | 863412 |
| Details | |
| Engine model | TD610G, TWD610G TD610M, TD630ME TD610V, TWD610V, TD630VE TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A TD61AG TD61AP TD61AW, TD61ACE TD640VE TD71A, TID71A, TWD710V TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE TID61AG TWD610P TWD630ME TWD630VE TWD710P, TAD730P TWD730ME |
| Application | Contacts and Sensors Contacts and Sensors: A Contacts and Sensors: B Electrical Materials: A Electrical System and Instruments Electrical System and Instruments: 868125 Electrical System and Instruments: 868126 Electrical System and Instruments: 868127 Electrical System and Instruments: 868128 Electrical System and Instruments: 868129 Electrical System and Instruments: 868145 Electrical System and Instruments: 868450 Electrical System and Instruments: 868452 Timing Gear Casing and Gears Timing Gear Casing and Gears, SN-2071082971 Timing Gear Casing and Gears, SN2071082972- Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B |
| Specification | |
| Descriptions | L=10,9mm |
