Spacer plate 844505

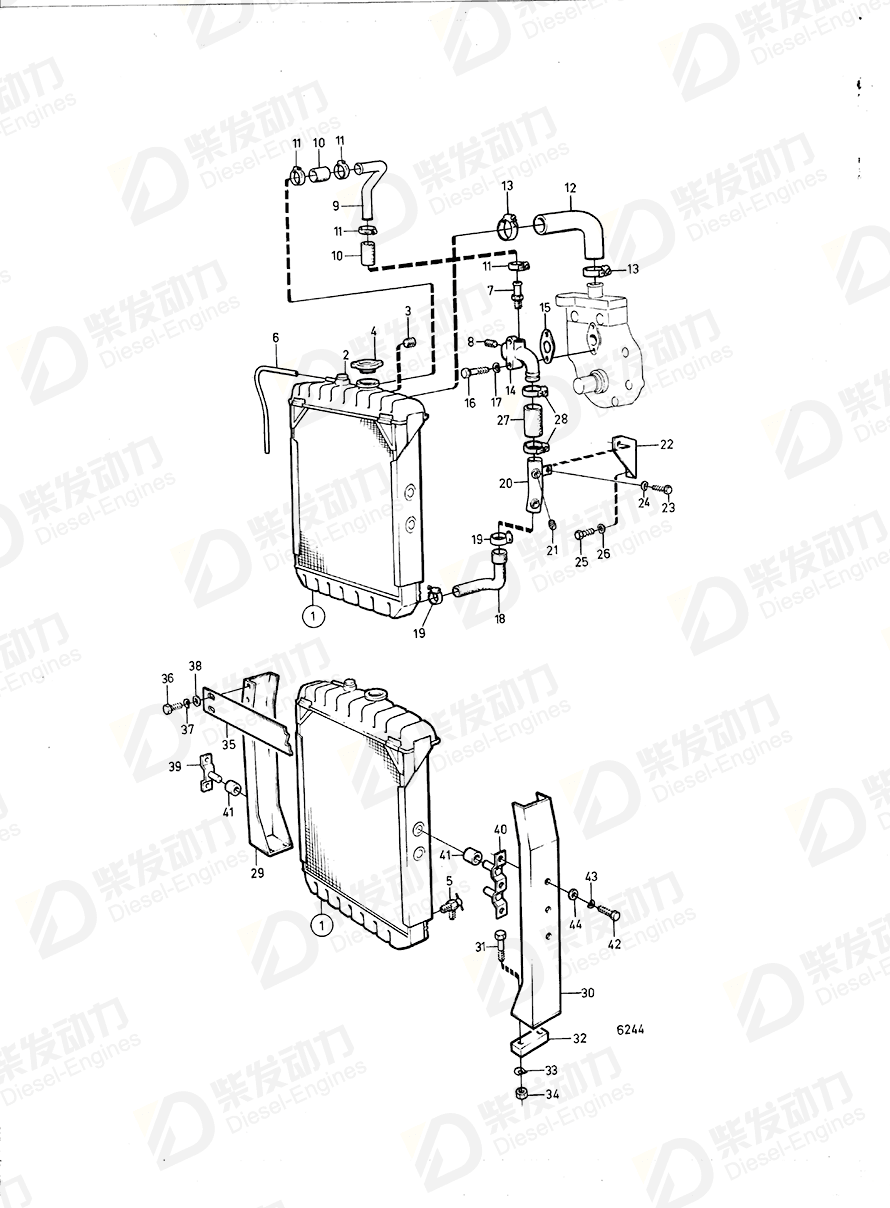

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 822721 | 1 | MOXXXXX/98708-. |
| 2 | Safety valve | 342099 | 1 | |
| 3 | Plug | 952075 | 1 | |
| 4 | Radiator cap | 344753 | 1 | |
| 5 | Drain cock | 820436 | 1 | |
| 6 | Hose | 192618 | 1 | L=1400mm |
| 7 | Nipple | 941845 | 1 | |
| 8 | Plug | 952077 | 2 | |
| 9 | Coolant pipe | 845874 | 1 | Moxxxxx |
| 10 | Rubber hose | 944386 | 2 | |
| 11 | Hose clamp | 943475 | 4 | |
| 12 | Radiator hose | 845872 | 1 | Moxxxxx (821069) |
| 13 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 14 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 15 | Gasket | 423138 | 1 | |
| 16 | Hexagon screw | 955537 | 1 | |
| 16 | Hexagon screw | 955540 | 1 | MOXXXXX/105195- |
| 17 | Spring washer | 942336 | 2 | |
| 18 | Radiator hose | 821070 | 1 | |
| 19 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 20 | Coolant pipe | 846832 | 1 | |
| 21 | Plug | 952077 | 2 | |
| 22 | Bracket | 846834 | 1 | |
| 23 | Cross recessed screw | 956092 | 1 | (241793) |
| 24 | Spring washer | 941906 | 1 | |
| 25 | Hexagon screw | 955541 | 2 | |
| 26 | Spring washer | 942336 | 2 | |
| 27 | Hose | 952980 | 1 | L=60mm |
| 28 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 29 | Pillar | 820778 | 1 | Right |
| 30 | Pillar | 820780 | 1 | Left |
| 31 | Hexagon screw | 940115 | 8 | |
| 31 | Hexagon screw | 955537 | 8 | |
| 32 | Spacer plate | 844505 | 4 | Alt MOXXXXX/33095- |
| 33 | Spring washer | 942336 | 8 | |
| 34 | Hexagon nut | 955827 | 8 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 35 | Cross stay | 821052 | 1 | |
| 36 | Hexagon screw | 955523 | 4 | |
| 37 | Spring washer | 941907 | 4 | |
| 38 | Washer | 955894 | 4 | |
| 39 | Attaching plate | 341907 | 2 | Right |
| 40 | Attaching plate | 341909 | 1 | Left |
| 41 | Rubber cushion | 823381 | 4 | |
| 42 | Hexagon screw | 940135 | 7 | |
| 43 | Spring washer | 941907 | 7 | |
| 44 | Washer | 899990 | 7 |
| Item | Part Name | Part No. |
| 32 | Spacer plate 844505 | 844505 |
| Details | |
| Engine model | D100B D100BRC, TD100ARC D70B D70CRC, TD70CRC TD100A TD100CRC TD100G TD100GG TD100GP TD70B |
| Application | Radiator and Installation Components, Standard 35CG: A Radiator and Installation Components, Standard 35CG: B Radiator and Installation Components, Standard 35CG: C RADIATOR AND INSTALLATION COMPONENTS, STD 35 CG Radiator and Installation Components, Std: B Radiator and Installation Components, Std: C Radiator and Installation Components: A Radiator and Installation Components: B Radiator with Installation Components |
| Specification | |
| Descriptions | Alt Alt MOXXXXX/33095- MOXXXXX/33095- |
