Spacer ring 821766

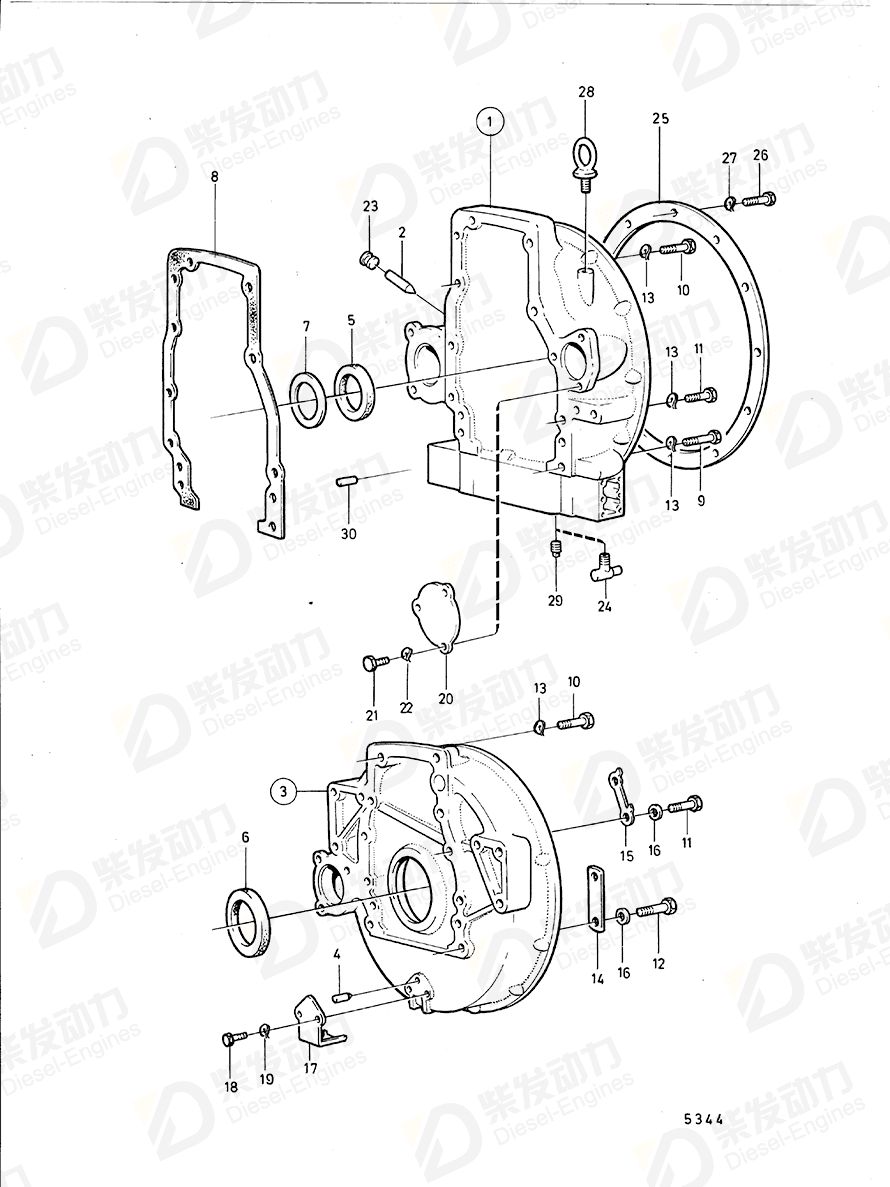

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 821790 | 1 | Std |
| 2 | Pin | 404069 | 1 | |
| 3 | Flywheel housing | 466185 | 1 | Engine with gear box type R51 |
| 4 | Setting indicator | 190222 | 1 | |
| 5 | Sealing ring | 821755 | 1 | D42A PP SPEC. 16053, 867638. |
| 6 | Felt ring | 421147 | 1 | |
| 7 | Spacer ring | 821766 | 1 | Std |
| 8 | Gasket | 420167 | 1 | |
| 9 | Hexagon screw | 955581 | 2 | Casted pistons, MO 75015200-, MO 75035926-. |
| 11 | Hexagon screw | 955583 | 2 | |
| 12 | Hexagon screw | 192107 | 2 | Engine with gear box type R51 |
| 13 | Spring washer | 941911 | 10 | |
| 15 | Tab washer | 941466 | 2 | Engine with gear box type R51 |
| 16 | Washer | 120196 | 10 | Repl early production marked: 5-4-3-2-1-A-B.If other marking is stamped 4PCS 829308 have to be used. |
| 17 | Breather cap | 417429 | 1 | |
| 18 | Hexagon screw | 940100 | 2 | |
| 19 | Spring washer | 941906 | 2 | |
| 20 | Cover | 423081 | 1 | |
| 21 | Hexagon screw | 940098 | 3 | |
| 22 | Spring washer | 942336 | 3 | |
| 23 | Rubber plug | 61822 | 1 | |
| 24 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 25 | Spacer ring | 846574 | 1 | D70B spec. 867057, 867058, 867059, 867079, TD70G with Allison converter, (731459) |
| 29 | Plug | 952357 | 1 | |
| 30 | Pin | 191171 | 2 |
| Item | Part Name | Part No. |
| 7 | Spacer ring 821766 | 821766 |
| Details | |
| Engine model | D70B D70CHC, D70CRC, TD70CHC, TD70CRC TD60A, TD60B TD60D TD70B TD70G |
| Application | Engine and Installation Components Flywheel Housing Flywheel Housing: A Flywheel Housing: B |
| Specification | |
| Descriptions | Std |
