Spacer ring 837389

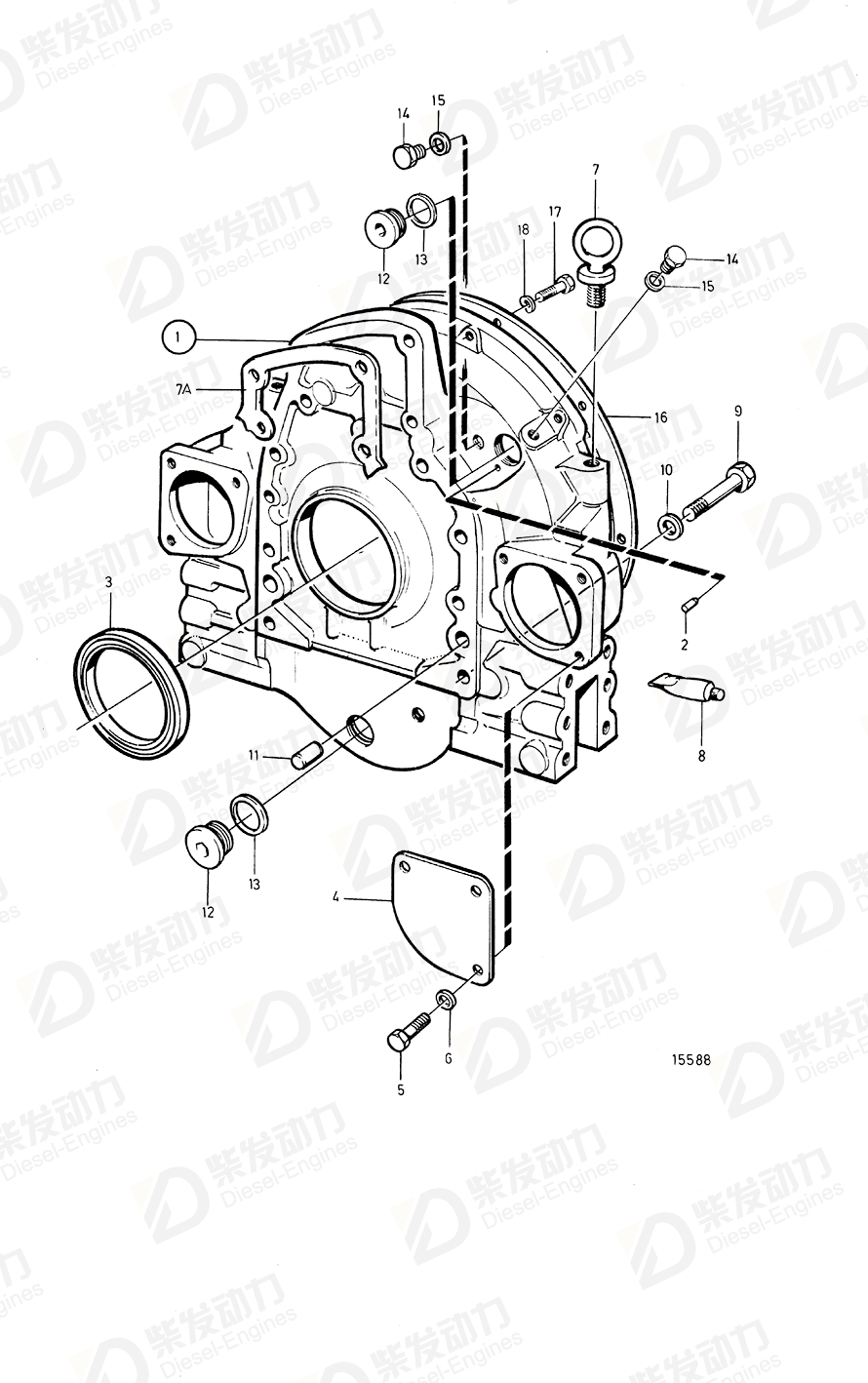

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 848961 | 1 | SAE 1 |
| 4 | Cover | 423081 | 1 | |
| 5 | Hexagon screw | 940114 | 3 | |
| 6 | Spring washer | 942336 | 7 | |
| 7 | Lifting eye | 942345 | 2 | |
| 8 | Sealant | 1161231 | 1 | 304ml |
| 8 | Sealant | 1161277 | 1 | 20g |
| 9 | Hexagon screw | 955582 | 2 | Repl early production marked: 5-4-3-2-1-A-B.If other marking is stamped 4PCS 829308 have to be used. |
| 10 | Spring washer | 941911 | 12 | |
| 11 | Pin | 191171 | 2 | |
| 12 | Plug | 467365 | 1 | |
| 13 | Gasket | 469327 | 1 | |
| 14 | Plug | 180761 | 1 | |
| 15 | Gasket | 11996 | 1 | |
| 16 | Spacer ring | 803172 | 1 | TD CO gear |
| 16 | Intermediate ring | 815964 | 1 | AQ170B MOXXXX/87713-. |
| 16 | Spacer ring | 837389 | 1 | SAE1-2 |
| 17 | Hexagon screw | 940116 | 1 | AQ170B MOXXXX/87713-., L=25mm |
| 17 | Hexagon screw | 940160 | 12 | SAE1-2 |
| 17 | Hexagon screw | 955549 | 2 | AQ170B MOXXXX/87713-., L=45mm |
| 17 | Hexagon screw | 955550 | 2 | BB170B MOXXXX/89353-., L=51mm |
| 18 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| Item | Part Name | Part No. |
| 16 | Spacer ring 837389 | 837389 |
| Details | |
| Engine model | D100B TD100A TD100G-87 TD1030ME TWD1030ME |
| Application | Flywheel Housing Flywheel Housing: A Flywheel Housing: B Flywheel Housing: C |
| Specification | |
| Descriptions | SAE 1-2 SAE1-2 |
