Spacer ring 843839

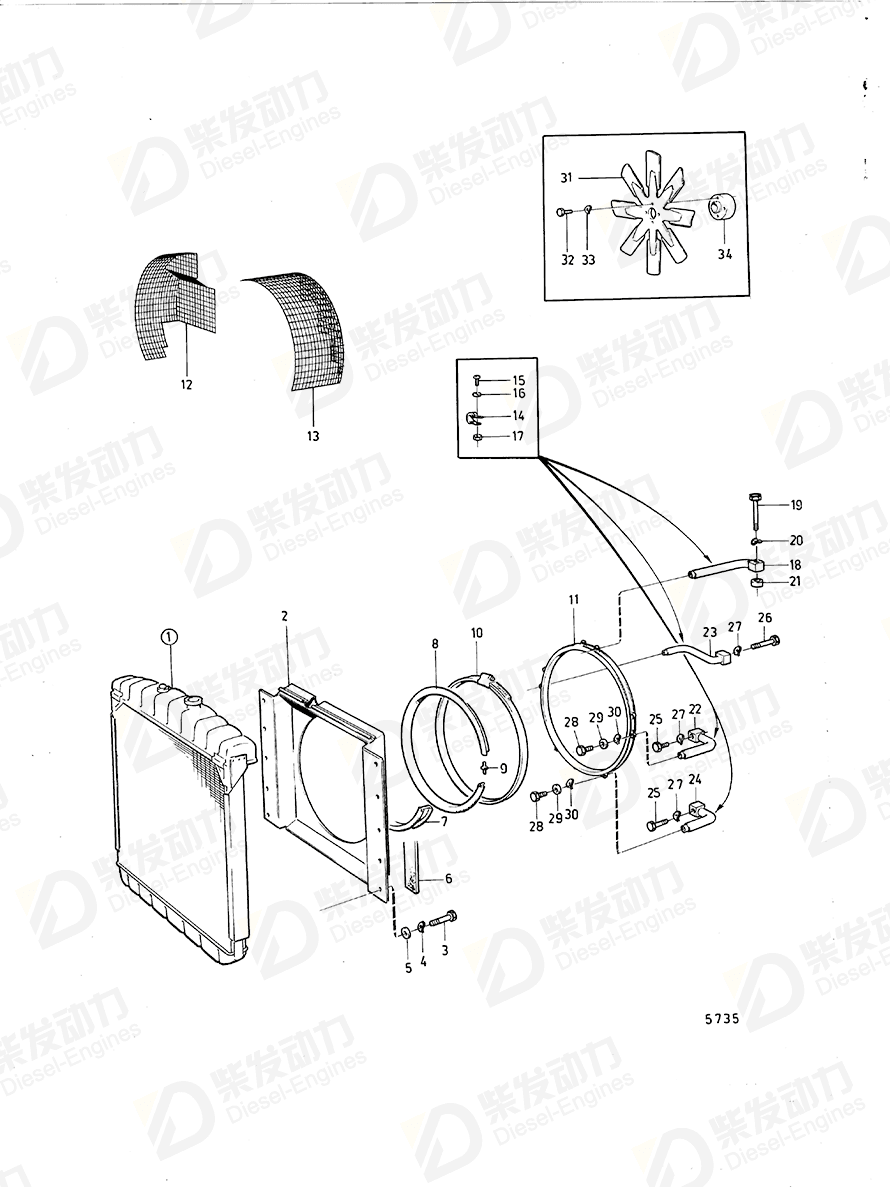

| No. | Part Name | Part Number | Qty | Description |
| 2 | Fan shroud | 843641 | 1 | (837284) |
| 2 | Fan shroud | 844696 | 1 | MOXXXXX/30308- |
| 3 | Hexagon screw | 955270 | 10 | |
| 3 | Hexagon screw | 955524 | 10 | Used on crankshaft 829999. |
| 4 | Spring washer | 941906 | 10 | |
| 4 | Spring washer | 941907 | 10 | |
| 5 | Washer | 899990 | 10 | |
| 5 | Washer | 955893 | 10 | |
| 6 | Sealing strip | 821707 | 2 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 6 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 7 | Sealing cloth | 836055 | 1 | FOR SPEC VERSION 45CG |
| 8 | Sealing strip | 837300 | 1 | |
| 9 | Connector | 475450 | 1 | |
| 10 | Hose clamp | 947467 | 1 | |
| 11 | Fan ring | 843694 | 1 | |
| 14 | Clamp | 945081 | 12 | |
| 15 | Cross recessed screw | 956095 | 12 | |
| 16 | Washer | 192404 | 12 | |
| 17 | Hexagon nut | 955781 | 12 | |
| 18 | Anchorage | 843642 | 1 | Left |
| 18 | Anchorage | 843643 | 1 | Right |
| 19 | Hexagon screw | 941252 | 2 | (959800) |
| 20 | Spring washer | 942336 | 2 | |
| 21 | Spacer sleeve | 843028 | 2 | |
| 22 | Anchorage | 843013 | 1 | Left |
| 23 | Anchorage | 845003 | 1 | Right |
| 24 | Anchorage | 843014 | 2 | |
| 25 | Hexagon screw | 955539 | 3 | |
| 26 | Hexagon screw | 955320 | 1 | |
| 27 | Spring washer | 942336 | 4 | |
| 28 | Hexagon screw | 955523 | 6 | |
| 29 | Washer | 960141 | 6 | |
| 30 | Spring washer | 941907 | 6 | |
| 31 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 31 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 32 | Hexagon screw | 940186 | 4 | |
| 33 | Spring washer | 941907 | 4 | |
| 34 | Spacer ring | 843839 | 1 |
| Item | Part Name | Part No. |
| 34 | Spacer ring 843839 | 843839 |
| Details | |
| Engine model | D100BRC, TD100ARC D70CRC, TD70CRC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD1010G, TWD1010G TD60A TD60B TD60D TD60D-83 TD70G TID100K TID100K-87 TID100KG TID100KG-87 TID60D TID60DG |
| Application | Fan, Fan- and Belt Protection with Installation Comp., Early Pr Fan, Fan- and Belt Protection with Installation Comp., Late Pro FAN, FAN- AND BELT PROTECTION WITH INSTALLATION COMPONENTS Fan, Fan-and Belt Guard with Installation Components Fan, Fan-and Belt Guard with Installation Components: A Fan, Fan-and Belt Guard with Installation Components: B Fan, Fan-and Belt Protection with Installation Components Fan, Fan-and Belt Protection with Installation Components: A Fan, Fan-and Belt Protection with Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS RADIATOR AND FAN WITH INSTALLATION COMPONENTS: A RADIATOR AND FAN WITH INSTALLATION COMPONENTS: B Radiator and Fan, 35°C Radiator and Fan, SN2100256097- Radiator and Fan, Tropic 45°C Radiator and Installation Components 35CG: A Radiator and Installation Components 35CG: B Radiator and Installation Components 35CG: C |
| Specification | |
| Descriptions | L = 13 MM TH=13mm |
