Spacer ring 848176

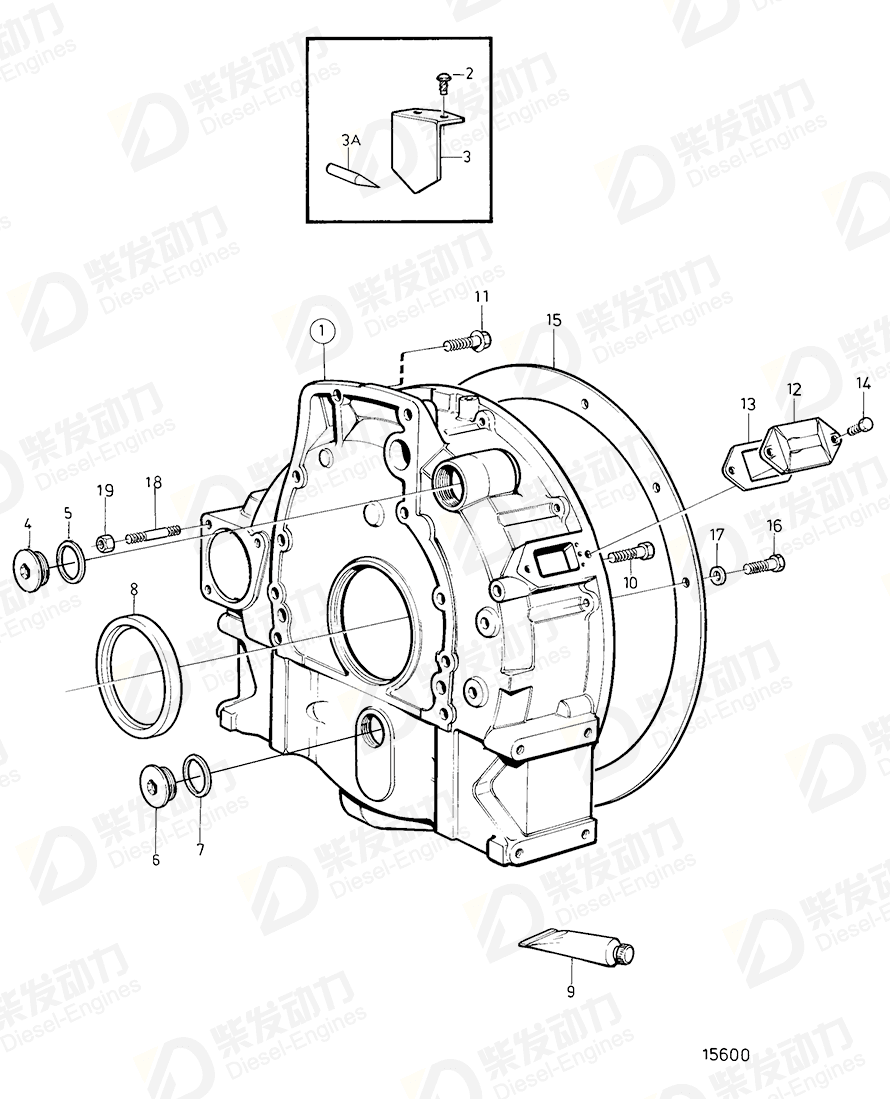

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 848464 | 1 | For Allison MT643 with Volvo Penta flywheel housing |
| 1 | Flywheel housing | 848465 | 1 | For Allison 2000 and 3000., For Clark 24000 |
| 1 | Flywheel housing | 4772237 | 1 | |
| 2 | Drive screw | 905654 | 2 | |
| 3 | Setting indicator | 849405 | 1 | |
| 3 | Setting indicator | 865522 | 1 | For Allison MT643 with Volvo Penta flywheel housing |
| 3 | Setting indicator | 866778 | 1 | For ZF WG with flywheel housing of vehicle type., Alt |
| 4 | Plug | 467367 | 1 | |
| 5 | Gasket | 469328 | 1 | |
| 6 | Plug | 467367 | 1 | |
| 7 | Gasket | 469328 | 1 | |
| 8 | Crankshaft seal | 477119 | 1 | (3825165) |
| 9 | Sealant | 1161231 | 1 | 304ml |
| 10 | Flange screw | 966361 | 6 | L=55mm |
| 10 | Flange screw | 968753 | 2 | L=75mm |
| 11 | Flange screw | 966363 | 2 | L=65mm |
| 12 | Cover | 4772168 | 1 | |
| 13 | Gasket | 4804167 | 1 | |
| 14 | Flange screw | 946934 | 2 | |
| 15 | Spacer ring | 848176 | 1 | For Clark 24000., For Clark 28000 and C270., For Allison 2000 and 3000., SAE 2-3 |
| 16 | Hexagon screw | 955535 | 12 | |
| 17 | Spring washer | 942336 | 12 | |
| 18 | Stud | 953067 | 3 | |
| 19 | Flange nut | 971095 | 3 | Alt |
| 3A | Setting indicator | 864494 | 1 |
| Item | Part Name | Part No. |
| 15 | Spacer ring 848176 | 848176 |
| Details | |
| Engine model | TD610M, TD630ME, TWD630ME TD610V, TWD610V, TD630VE, TWD630VE TD61A, TD71A, TID71A TD61AW, TD71AW TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD730ME, TWD730ME, TWD731ME TWD610P, TWD710P, TAD730P TWD740VE |
| Application | Flywheel and Flywheel Housing for Clark 28000/32000 Flywheel and Flywheel Housing for Clark 32000, C320 Flywheel and Flywheel Housing for Clark 34000/36000 with C5000 Converter Flywheel and Flywheel Housing for ZF WG180/190/200/201/210 with Converter 300 Flywheel Housing Flywheel Housing,Vehicle Type |
| Specification | |
| Descriptions | Alt. SAE 2-3 For Clark 24000., For Clark 28000 and C270., For Allison 2000 and 3000., SAE 2-3 For Clark 24000., For Clark 28000., For Allison 2000 and 3000., SAE 2-3 For Clark 28000., For Allison 2000 and 3000., SAE2-3 SAE 2-3 |
