Spacer ring 848379

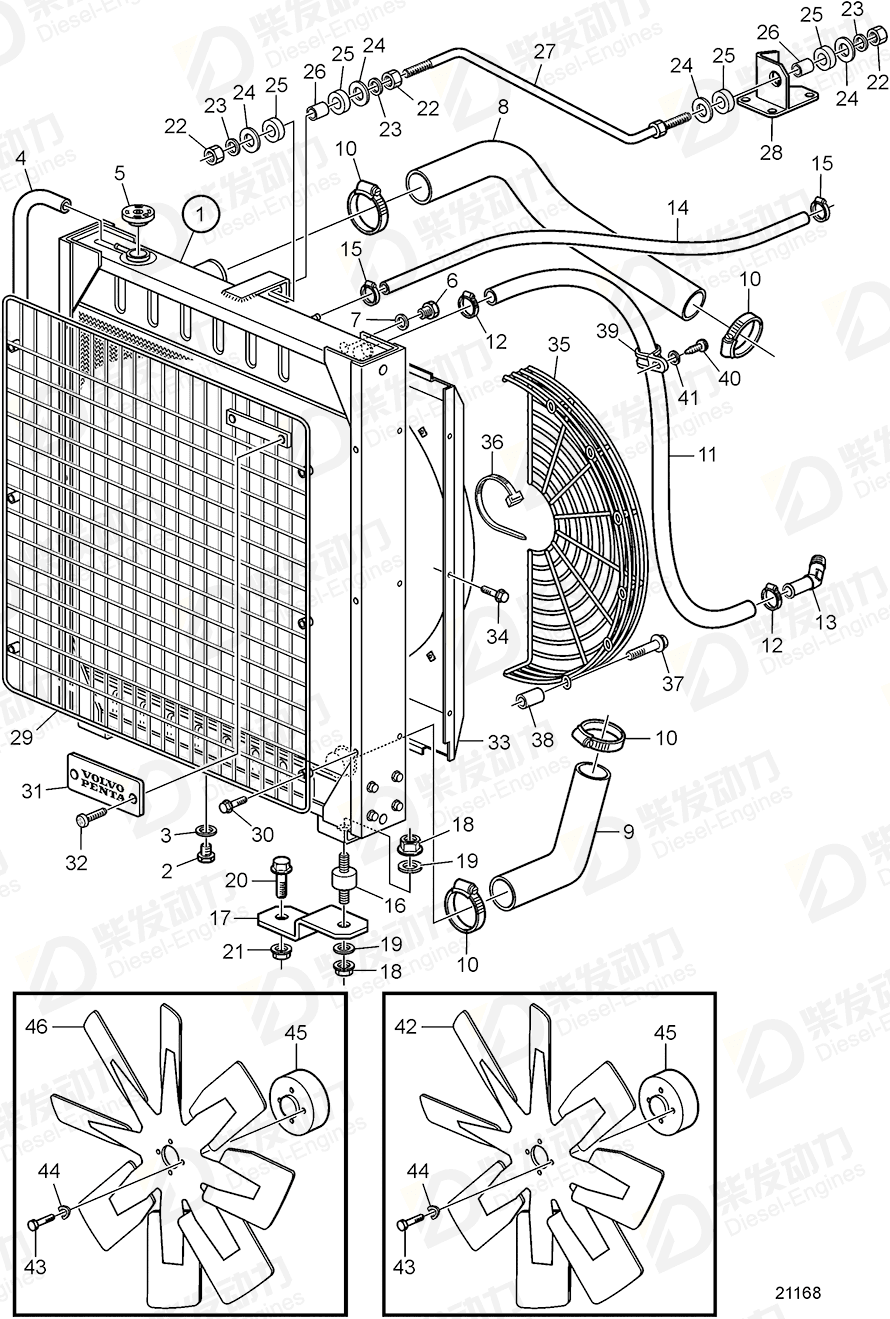

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 864891 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Hose | 192618 | 1 | L=1400mm |
| 5 | Pressure cap | 866095 | 1 | (350578) |
| 6 | Plug | 947660 | 1 | (836268) |
| 7 | Gasket | 11994 | 1 | |
| 8 | Radiator hose | 3826456 | 1 | |
| 9 | Radiator hose | 863158 | 1 | |
| 10 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 11 | Rubber hose | 944386 | 1 | |
| 12 | Hose clamp | 994560 | 2 | |
| 13 | Elbow nipple | 942649 | 1 | |
| 15 | Hose clamp | 994556 | 2 | |
| 16 | Rubber cushion | 849170 | 2 | |
| 17 | Bracket | 865787 | 2 | |
| 18 | Hexagon nut | 955850 | 4 | |
| 19 | Spring washer | 940280 | 4 | |
| 20 | Flange screw | 946173 | 4 | |
| 21 | Flange lock nut | 948645 | 4 | |
| 22 | Hexagon nut | 955793 | 3 | |
| 23 | Spring washer | 941912 | 3 | |
| 24 | Washer | 191940 | 4 | |
| 25 | Rubber bushing | 866857 | 4 | |
| 26 | Spacer sleeve | 252202 | 2 | |
| 27 | Radiator stay | 3826468 | 1 | |
| 28 | Anchorage | 863214 | 1 | |
| 29 | Radiator protector | 862956 | 1 | |
| 30 | Flange screw | 947760 | 6 | M8x40mm |
| 31 | Emblem | 846118 | 1 | |
| 32 | Screw | 941651 | 2 | |
| 33 | Fan shroud | 3829665 | 1 | |
| 34 | Flange screw | 966807 | 8 | |
| 35 | Fan guard | 3825685 | 2 | SNXXXXXXXXXX/277520- |
| 36 | Cable tie | 948211 | 8 | |
| 37 | Flange screw | 946173 | 12 | |
| 38 | Spacer sleeve | 807183 | 12 | Used on crankshaft 829999. |
| 39 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 40 | Six point socket scr | 972603 | 1 | |
| 41 | Washer | 960138 | 1 | |
| 42 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 43 | Flange screw | 965182 | 8 | |
| 44 | Spring washer | 941907 | 8 | |
| 45 | Spacer ring | 848379 | 2 | |
| 46 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| Item | Part Name | Part No. |
| 45 | Spacer ring 848379 | 848379 |
| Details | |
| Engine model | TD100G-87 TD610G, TWD610G TD610V, TWD610V, TD630VE, TWD630VE TD61AG, TID61AG TD710G, TWD710G TD71A, TWD710V, TD730VE TD71AG TWD610P, TWD710P |
| Application | Fan Fan and Installation Components Fan and Installation Components: A Fan SN-2071145377 Fan: A Radiator 0,65sqm |
| Specification | |
| Descriptions | Alt For 843563, 843517 |
