Spacer ring 912130

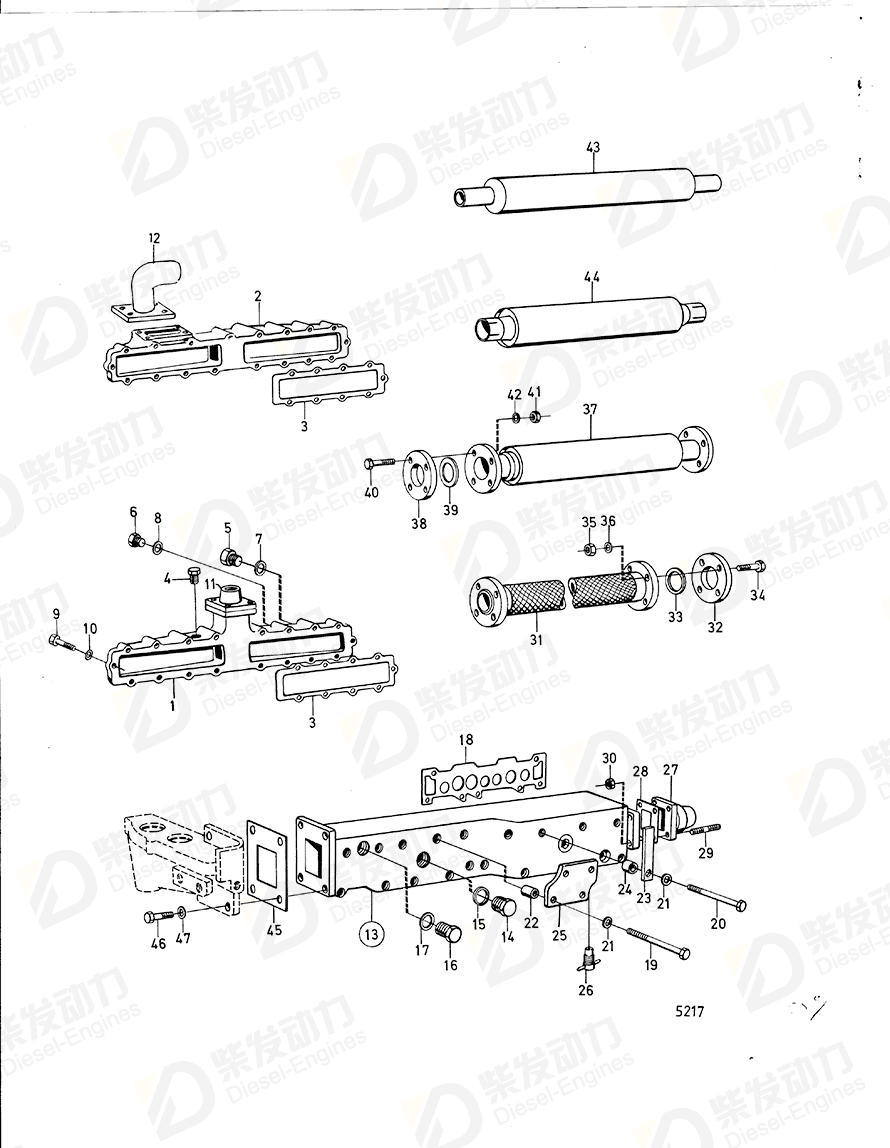

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 466274 | 1 | MO-43033/XXXXX |
| 2 | Inlet manifold | 836204 | 1 | MO43034/XXXXX- |
| 3 | Gasket | 421071 | 2 | |
| 4 | Plug | 191026 | 1 | |
| 5 | Hexagon screw | 940113 | 1 | |
| 6 | Plug | 192261 | 1 | |
| 7 | Gasket | 957171 | 1 | |
| 8 | Gasket | 11992 | 1 | |
| 9 | Hexagon screw | 940159 | 2 | |
| 9 | Hexagon screw | 940161 | 6 | For engine with 40° angle of inclination, L=45mm |
| 9 | Hexagon screw | 955527 | 4 | |
| 9 | Hexagon screw | 955528 | 4 | |
| 9 | Hexagon screw | 955530 | 4 | |
| 9 | Hexagon screw | 955531 | 2 | Late type |
| 10 | Washer | 955894 | 18 | |
| 13 | Exhaust pipe | 837496 | 1 | |
| 13 | Exhaust pipe | 896740 | 1 | Repl by 837496 |
| 14 | Plug | 467367 | 6 | |
| 15 | Gasket | 469328 | 6 | |
| 16 | Plug | 301185 | 2 | |
| 17 | Gasket | 957185 | 2 | |
| 18 | Gasket | 842531 | 2 | |
| 19 | Hexagon screw | 942338 | 2 | |
| 19 | Hexagon screw | 955544 | 10 | |
| 20 | Hexagon screw | 941251 | 1 | L=159mm |
| 20 | Hexagon screw | 959797 | 7 | |
| 21 | Washer | 940097 | 20 | |
| 22 | Spacer sleeve | 912127 | 2 | |
| 23 | Bracket | 820688 | 1 | See group 2B |
| 24 | Spacer ring | 912130 | 1 | |
| 25 | Attaching plate | 820755 | 1 | |
| 26 | Shut-off cock | 82745 | 1 | |
| 27 | Exhaust pipe flange | 820787 | 1 | |
| 28 | Gasket | 820783 | 1 | |
| 29 | Stud | 953259 | 4 | |
| 30 | Nut | 943152 | 4 | |
| 31 | Exhaust hose | 820900 | 3 | |
| 32 | Flange | 820905 | 2 | |
| 33 | Gasket | 807578 | 2 | |
| 34 | Hexagon screw | 955593 | 8 | |
| 35 | Hexagon nut | 955829 | 8 | Pusher type, For tropic radiator |
| 36 | Spring washer | 941912 | 8 | |
| 37 | Silencer | 820978 | 1 | |
| 38 | Flange | 820905 | 2 | |
| 39 | Gasket | 807578 | 2 | |
| 40 | Hexagon screw | 955367 | 8 | |
| 41 | Hexagon nut | 955785 | 8 | |
| 42 | Spring washer | 941912 | 8 | |
| 43 | Silencer | 899792 | 1 | Spec.867054, 867221., Alt |
| 44 | Silencer | 340565 | 1 | Spec.867054, 867221 |
| 45 | Gasket | 820604 | 1 | MO-XXXXX/98707. |
| 46 | Hexagon screw | 940134 | 4 | |
| 47 | Spring washer | 941909 | 4 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| Item | Part Name | Part No. |
| 24 | Spacer ring 912130 | 912130 |
| Details | |
| Engine model | D100A D100B D70B TAD120BHC TAD120CHC TAD121CHC TD100A TD100ARC TD100CHC TD100CRC TD120BHC TD120BRC TD121CHC TD121CRC |
| Application | INDUCTION AND EXHAUST MANIFOLD WITH INSTALLATION COMPONENTS Induction and Exhaust Manifold with Installation Components: D Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B Induction and Exhaust Pipe: A Induction and Exhaust Pipe: B Induction- and Exhaust Manifold, Classed Engine: A Induction- and Exhaust Manifold, Classed Engine: B Induction- and Exhaust Manifold, Classed Engine: C Induction-and Exhaust Manifold, Classed Engine |
