Spacer sleeve 60112735

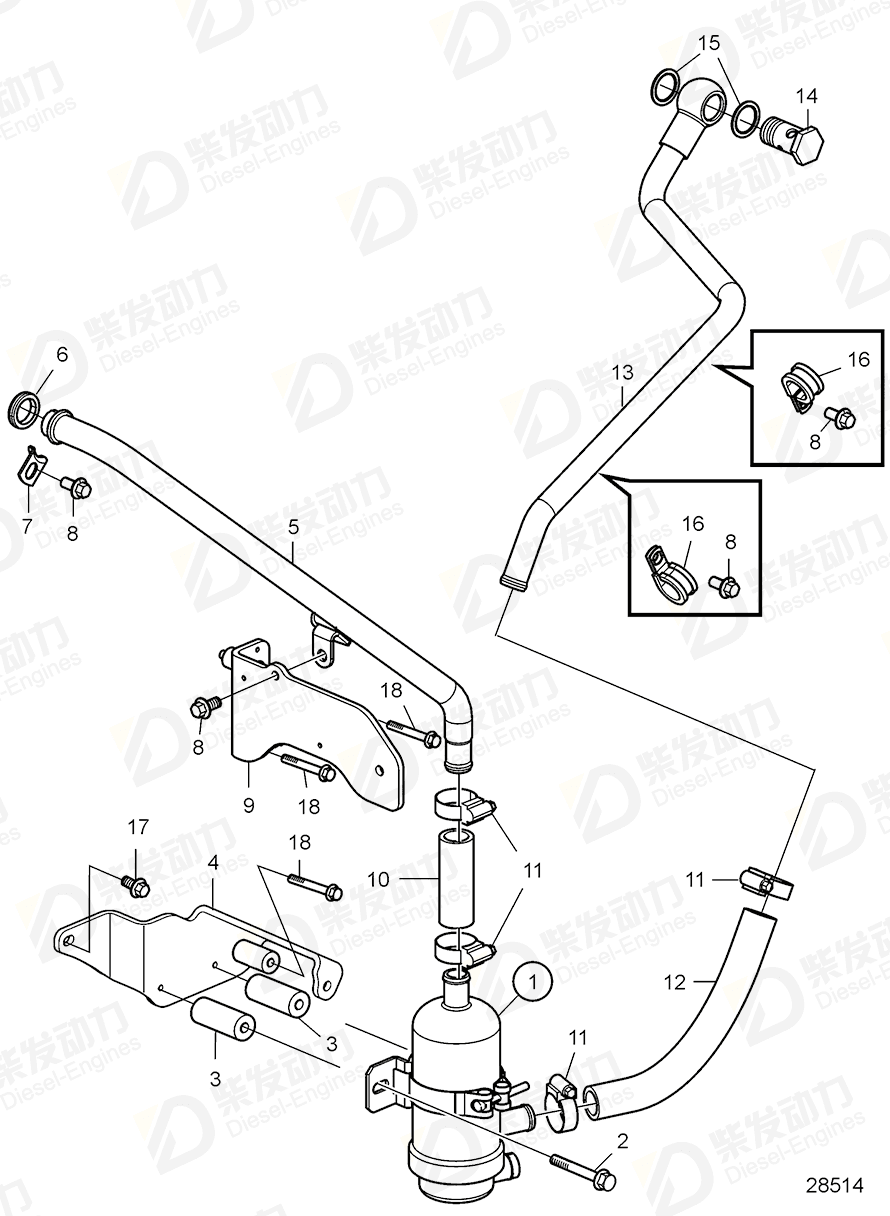

| No. | Part Name | Part Number | Qty | Description |
| 1 | Engine heater | 22310451 | 1 | 220-240V, 2000W |
| 2 | Flange screw | 984741 | 2 | L=70mm |
| 3 | Spacer sleeve | 60112735 | 2 | |
| 4 | Bracket | 22608053 | 1 | |
| 5 | Pipe | 22187974 | 1 | |
| 6 | Sealing ring | 1547252 | 1 | |
| 7 | Lock brace | 1546531 | 1 | |
| 8 | Flange screw | 984733 | 4 | |
| 9 | Bracket | 22588011 | 1 | |
| 10 | Rubber hose | 943369 | 1 | L=165 mm |
| 11 | Hose clamp | 994559 | 4 | |
| 12 | Rubber hose | 943369 | 1 | L=165 mm |
| 13 | Pipe | 22187971 | 1 | |
| 14 | Hollow screw | 191157 | 1 | |
| 15 | Sealing ring | 20899253 | 2 | |
| 16 | Clamp | 949786 | 2 | Late type |
| 17 | Flange screw | 984752 | 1 | |
| 18 | Flange screw | 984757 | 3 | |
| 19 | Cable | 22919851 | 1 | L=1500mm |
| 20 | Cable | 3986351 | 1 | L=5000mm |
| 21 | Retainer | 1079218 | 1 | |
| 22 | Locking clamp | 20587131 | 2 | |
| 23 | Locking device | 22988650 | 1 |
| Item | Part Name | Part No. |
| 3 | Spacer sleeve 60112735 | 60112735 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Engine Heater, Separately Mounted Engine Heater, Separately Mounted SN2016098147- |
