Spacer sleeve 807182

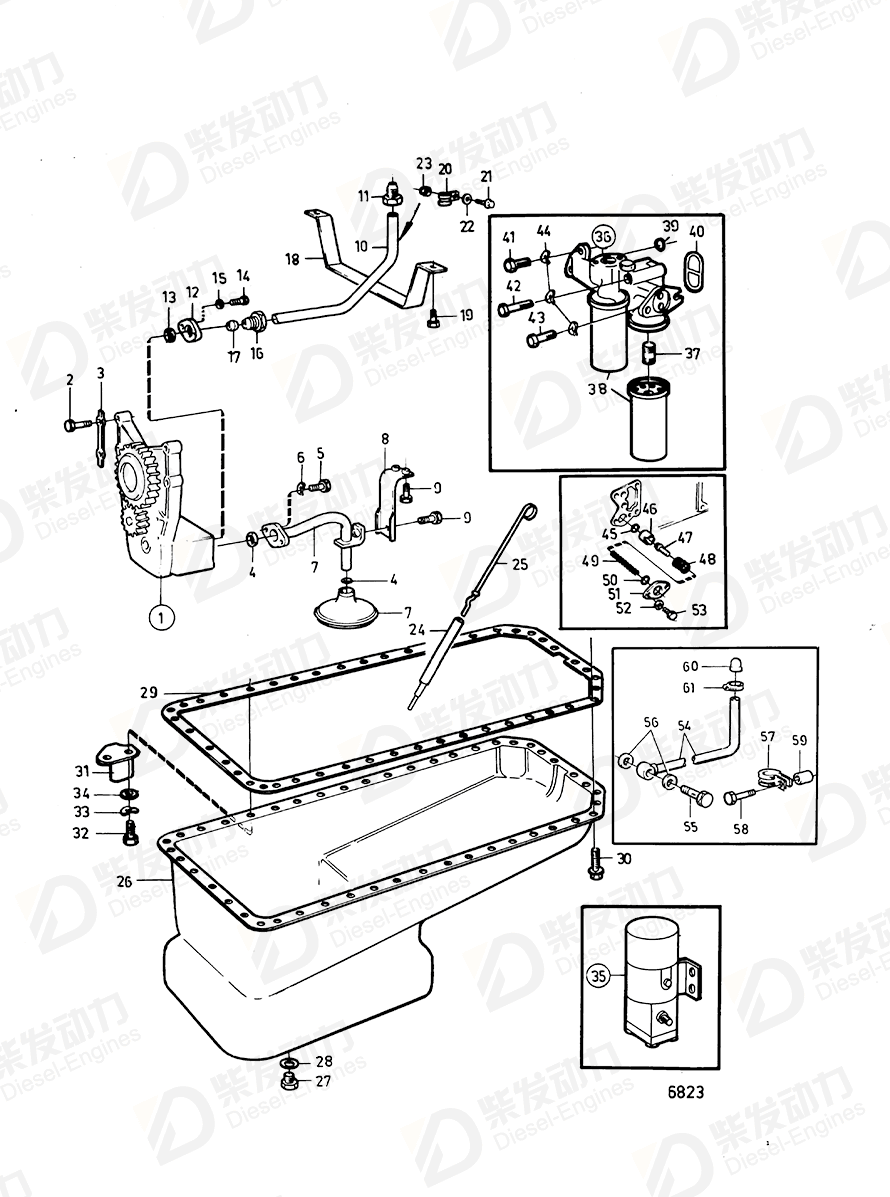

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 470343 | 1 | Repl by 478285 |
| 2 | Tab washer | 190529 | 2 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Sealing ring | 470383 | 2 | SN-2120226439 |
| 5 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 6 | Spring washer | 941907 | 2 | |
| 7 | Strainer | 470379 | 1 | SN-2120226439 |
| 8 | Bracket | 470385 | 1 | SN-2120226439 |
| 9 | Flange screw | 942402 | 2 | |
| 10 | Oil pressure pipe | 470375 | 1 | |
| 11 | Fitting | 466908 | 1 | |
| 12 | Spacer | 470376 | 1 | SN-2120226439 |
| 13 | Sealing ring | 470263 | 1 | Late type |
| 14 | Hexagon screw | 959794 | 2 | |
| 15 | Spring washer | 941907 | 2 | |
| 16 | Fitting | 470377 | 1 | SN-2120226439 |
| 17 | Ferrule | 956973 | 1 | |
| 18 | Bracket | 470378 | 1 | |
| 19 | Flange screw | 942402 | 2 | |
| 20 | Clamp | 949786 | 1 | Late type |
| 21 | Flange screw | 942402 | 1 | |
| 22 | Washer | 955894 | 1 | |
| 23 | Lock nut | 945467 | 1 | Late type |
| 24 | Extension pipe | 412845 | 1 | |
| 25 | Oil dipstick | 944663 | 1 | |
| 26 | Oil sump | 470160 | 1 | |
| 27 | Magnetic plug | 192538 | 1 | |
| 28 | Gasket, plug | 18677 | 1 | |
| 29 | Gasket | 470133 | 1 | (423365) |
| 30 | Flange screw | 942402 | 41 | |
| 31 | Bracket | 468653 | 1 | |
| 32 | Hexagon screw | 955525 | 2 | |
| 33 | Spring washer | 941907 | 2 | |
| 34 | Washer | 960141 | 2 | |
| 36 | Housing | 468649 | 1 | |
| 37 | Nipple | 466623 | 2 | |
| 38 | Oil filter | 466634 | 2 | |
| 39 | O-ring | 949659 | 1 | |
| 40 | Gasket | 469486 | 1 | |
| 41 | Hexagon screw | 955525 | 2 | |
| 42 | Hexagon screw | 942529 | 2 | |
| 44 | Spring washer | 942336 | 4 | |
| 45 | Sealing ring | 424342 | 1 | |
| 46 | Valve seat | 469468 | 1 | |
| 47 | Valve cone | 471085 | 1 | |
| 48 | Compression spring | 470291 | 1 | |
| 49 | Spring | 468727 | 1 | For 424920 |
| 50 | O-ring | 949658 | 1 | (925061) early type |
| 51 | Cover | 469465 | 1 | |
| 52 | Washer | 192287 | 2 | Spec. 867055., Replaced by later production., Early type |
| 53 | Hexagon screw | 955512 | 2 | |
| 54 | Oil bilge pipe | 844870 | 1 | |
| 55 | Hollow screw | 26013 | 1 | AQ115A MOXXXX/86909-. |
| 56 | Gasket | 957181 | 2 | |
| 57 | Clamp | 941950 | 1 | |
| 58 | Hexagon screw | 940161 | 1 | For engine with 40° angle of inclination, L=45mm |
| 59 | Spacer sleeve | 807182 | 1 | |
| 60 | Cap | 842235 | 1 | |
| 61 | Hose clamp | 943471 | 1 | (951787) |
| Item | Part Name | Part No. |
| 59 | Spacer sleeve 807182 | 807182 |
| Details | |
| Engine model | TAD121CHC TID120HPP TID121FG |
| Application | Lubricating System LUBRICATING SYSTEM: B LUBRICATING SYSTEM: TID121FP |
