Spacer sleeve 8194514

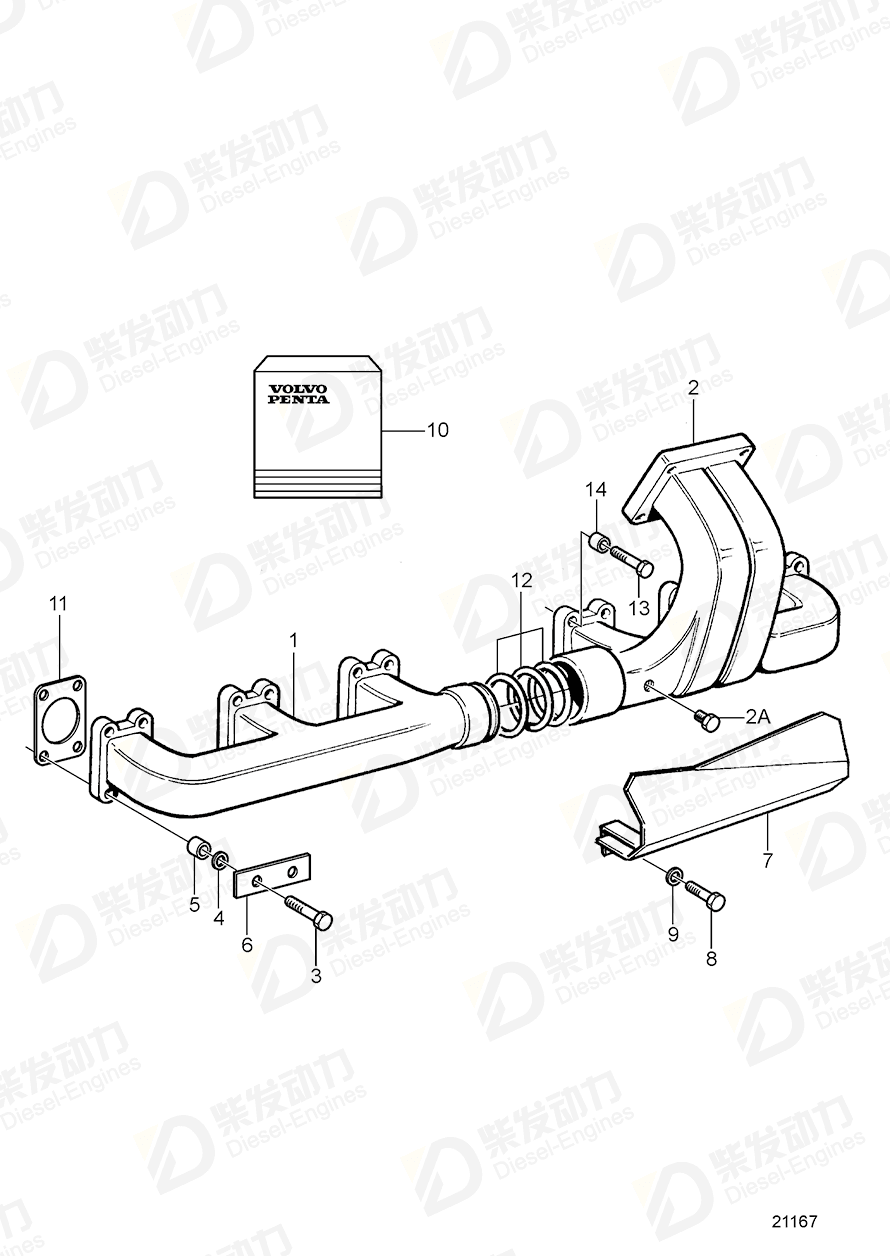

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Exhaust manifold |
8194525 |
1 |
(8194048) |
| 2 |
Exhaust manifold |
8194521 |
1 |
|
| 2 |
Exhaust manifold |
8194524 |
1 |
|
| 3 |
Hexagon screw |
945698 |
12 |
|
| 4 |
Washer |
941744 |
12 |
|
| 5 |
Spacer sleeve |
422217 |
12 |
|
| 6 |
Tab washer |
966717 |
12 |
|
| 7 |
Heat shield |
846817 |
1 |
Alt |
| 8 |
Cross recessed screw |
950046 |
2 |
|
| 9 |
Spring washer |
941906 |
2 |
|
| 10 |
Gasket kit |
876722 |
1 |
See group 99 |
| 11 |
Gasket |
479107 |
6 |
|
| 12 |
Sealing ring |
471219 |
1 |
|
| 12 |
Sealing ring |
1545109 |
2 |
|
| 13 |
Flange screw |
8194513 |
12 |
For 8194521 |
| 14 |
Spacer sleeve |
8194514 |
12 |
For 8194521 |
| 2A |
Plug |
952075 |
1 |
|
| Item |
Part Name |
Part No. |
| 14 |
Spacer sleeve 8194514 |
8194514 |
| Details |
| Engine model |
TD100G-87, TD1030VE |
| Application |
Exhaust Pipe |
| Specification |
| Descriptions |
For 8194521 |
