Spacer sleeve 820507

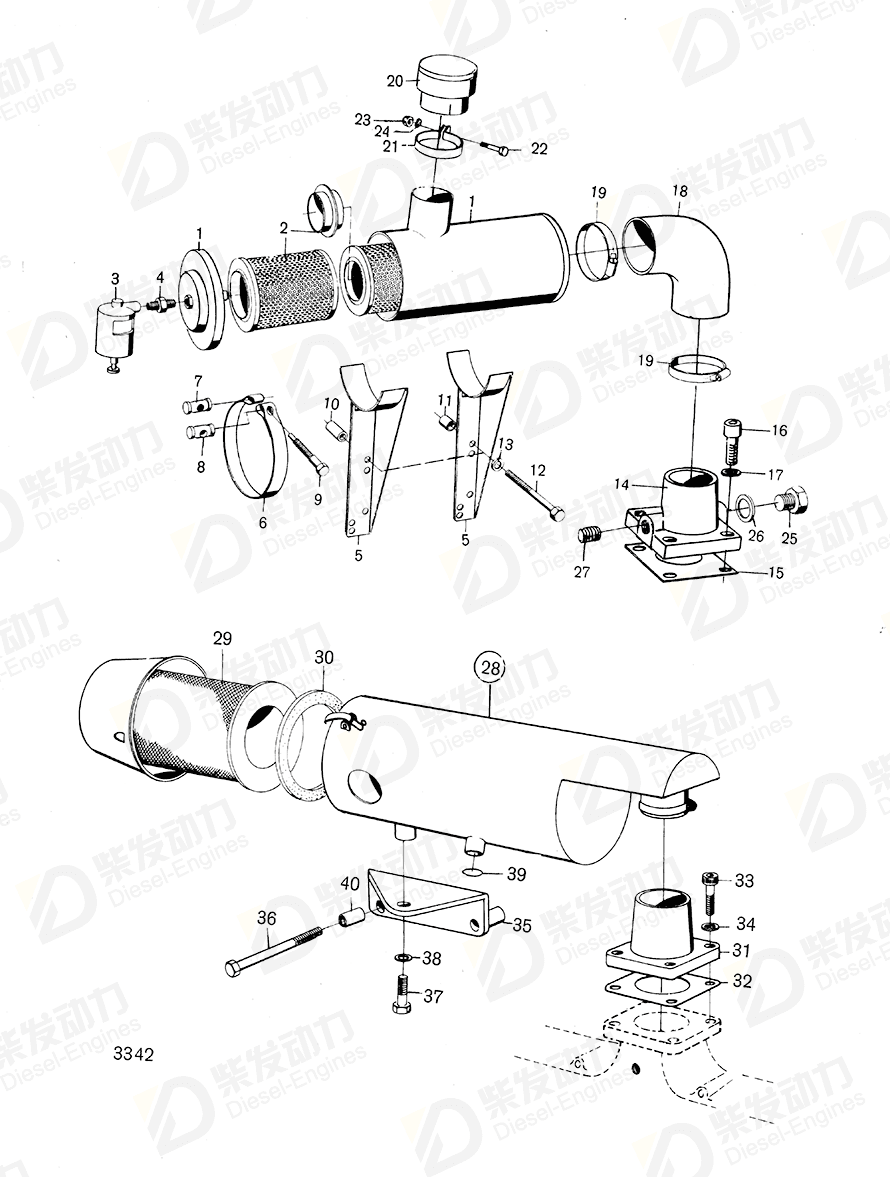

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 820571 | 1 | D70B early production.D70B classed engine,spec.867053 |
| 2 | Filter cartridge | 822137 | 2 | Early type |
| 3 | Pressure drop indica | 842037 | 1 | |
| 4 | Nipple | 191095 | 1 | |
| 5 | Bracket | 822131 | 2 | Spec. 867061, 867062 |
| 5 | Bracket | 822279 | 2 | D70B early production.D70B classed engine,spec.867053 |
| 6 | Tensioning band | 821028 | 2 | |
| 7 | Clevis pin, threaded | 31404 | 2 | |
| 8 | Pin | 31405 | 2 | |
| 9 | Hexagon screw | 31406 | 2 | |
| 10 | Spacer sleeve | 820507 | 1 | L=40mm |
| 10 | Spacer sleeve | 820916 | 2 | MO 21083/XXXXX- |
| 10 | Spacer sleeve | 821541 | 1 | L=37mm, spec 9757 |
| 11 | Spacer sleeve | 821539 | 2 | L=14mm, spec 9762 |
| 11 | Spacer sleeve | 821540 | 1 | Replaced by 1pc 1578938., L=22mm |
| 11 | Spacer sleeve | 827861 | 1 | MO-201373/XXXXX |
| 12 | Hexagon screw | 940159 | 2 | |
| 12 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 12 | Hexagon screw | 955530 | 4 | |
| 12 | Hexagon screw | 955531 | 2 | Late type |
| 13 | Spring washer | 941907 | 6 | |
| 14 | Flange | 820963 | 1 | D70B MO-43033/XXXXX.D70B classed engine,spec.867053 MO- XXXXX/5845 |
| 15 | Gasket | 466271 | 1 | |
| 16 | Hex. socket screw | 956570 | 4 | |
| 17 | Washer | 955894 | 4 | |
| 18 | Bend | 322965 | 1 | D70B early production.D70B classed engine,spec.867053 |
| 19 | Hose clamp | 943483 | 2 | (951800) |
| 20 | Cover | 820760 | 1 | |
| 22 | Hexagon screw | 955535 | 1 | |
| 23 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 24 | Spring washer | 942336 | 1 | |
| 25 | Plug | 192114 | 1 | |
| 26 | Gasket | 957185 | 1 | |
| 27 | Plug | 16325 | 1 | |
| 28 | Air filter | 807866 | 1 | D70B classed engine spec.867053 MOXXXXX/5846- |
| 29 | Insert | 808512 | 1 | D70B classed engine spec.867053 MOXXXXX/5846- |
| 30 | Sealing ring | 808513 | 1 | D70B classed engine spec.867053 MOXXXXX/5846- |
| 31 | Connecting kit | 74302 | 1 | D70B classed engine spec.867053 MOXXXXX/5846- |
| 32 | Gasket | 466271 | 1 | |
| 33 | Hex. socket screw | 956571 | 4 | SEE GROUP 2B |
| 34 | Spring washer | 941907 | 4 | |
| 35 | Bracket | 820925 | 1 | D70B classed engine spec.867053 MOXXXXX/5846- |
| 36 | Hexagon screw | 955532 | 2 | Only for thermoswitch control 837500,837501., L=95mm |
| 37 | Hexagon screw | 955294 | 1 | |
| 38 | Spring washer | 941907 | 1 | |
| 39 | Expansion plug | 955096 | 1 | |
| 40 | Spacer sleeve | 821540 | 2 | Replaced by 1pc 1578938., L=22mm |
| Item | Part Name | Part No. |
| 10 | Spacer sleeve 820507 | 820507 |
| Details | |
| Engine model | D100A D100B D70B TD100A |
| Application | Air Filter and Installation Components, Earlier Prod Air Filter and Installation Components: A Air Filter and Installation Components: B Turbo and Installation Components, Classed Engine |
| Specification | |
| Descriptions | L=40mm Spec. 867061, 867062 |
Related Products
Tags: Spacer sleeve, Volvo Penta, 820507
