Spacer sleeve 820508

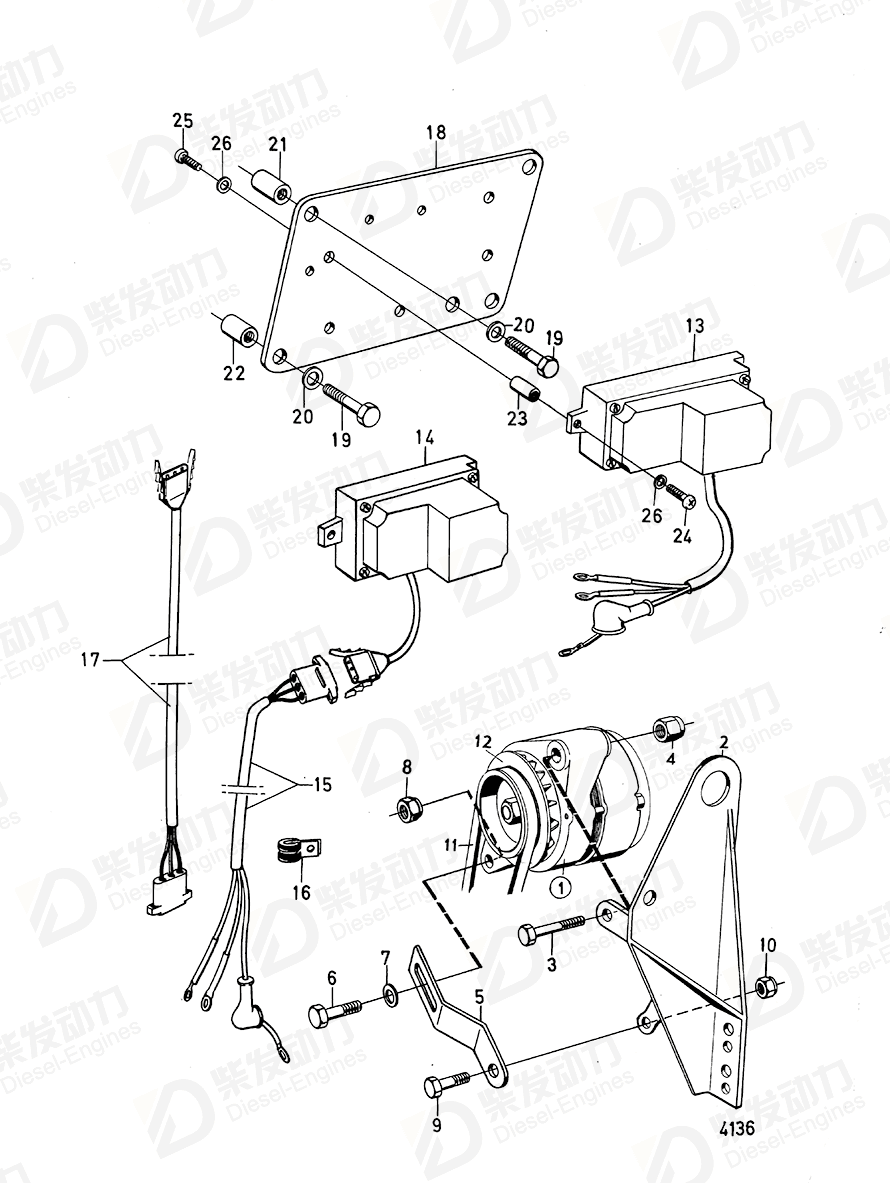

| No. | Part Name | Part Number | Qty | Description |
| 1 | Pulley | 820652 | 1 | MO 12770/XXXXX-., 28V 25A, early type |
| 1 | Alternator | 827349 | 1 | 28V 25A,later prod |
| 2 | Bracket | 820895 | 1 | |
| 3 | Hexagon screw | 955555 | 1 | L=83mm |
| 4 | Lock nut | 950355 | 1 | |
| 5 | Tensioner | 825626 | 1 | |
| 6 | Hexagon screw | 940186 | 1 | |
| 7 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 8 | Lock nut | 950353 | 1 | |
| 9 | Hexagon screw | 955525 | 1 | |
| 10 | Lock nut | 950353 | 1 | |
| 11 | V-belt | 947950 | 1 | Replaced by 1pc 842029 and 1pc 842028., L=825mm |
| 12 | Pulley | 820459 | 1 | Replaced by 1pc 841768. |
| 12 | Pulley | 843248 | 1 | |
| 13 | Stop dog | 845972 | 1 | (823480) |
| 14 | Charge regulator | 845973 | 1 | 24V later prod (640581) |
| 15 | Cable block | 842146 | 1 | |
| 16 | Clamp | 952625 | 1 | |
| 17 | Extension cable | 842209 | 1 | Alt |
| 18 | Bracket | 821795 | 1 | Spec 9762 |
| 18 | Bracket | 822298 | 1 | Fenwal,circuit closes again at 96°C.spec.9969 alt. |
| 18 | Bracket | 823979 | 1 | Spec. 867131. |
| 19 | Hexagon screw | 955533 | 4 | For engine with 40° angle of inclination, L=102mm |
| 19 | Hexagon screw | 955535 | 2 | |
| 19 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 19 | Hexagon screw | 959793 | 4 | |
| 20 | Spring washer | 941907 | 4 | |
| 20 | Spring washer | 942336 | 4 | |
| 21 | Spacer sleeve | 820506 | 2 | L=9mm |
| 22 | Spacer sleeve | 820508 | 2 | L=28mm |
| 22 | Spacer sleeve | 821539 | 2 | L=14mm, spec 9762 |
| 22 | Spacer sleeve | 821540 | 2 | Replaced by 1pc 1578938., L=22mm |
| 22 | Spacer sleeve | 821541 | 2 | L=37mm, spec 9757 |
| 23 | Vibration damper | 899709 | 3 | |
| 24 | Cross recessed screw | 956091 | 3 | |
| 25 | Cross recessed screw | 956092 | 3 | (241793) |
| 26 | Spring washer | 941906 | 6 |
| Item | Part Name | Part No. |
| 22 | Spacer sleeve 820508 | 820508 |
| Details | |
| Engine model | D100A D100B D42A D70B TD120A |
| Application | Air Filter and Installation Components: A Air Filter and Installation Components: B Alternator and Installation Components, MO-XXXXX/30307: A Connecting Box and Installation Components Connecting Box and Interm.relay with Installation Components: A STOP SOLENOID AND INSTALLATION COMPONENTS. Turbo and Installation Components, Classed Engine |
| Specification | |
| Descriptions | L = 28 MM L=28mm Spec. 867057, 867058, 867059, 867279., For klassed engine, Early type L=28 m Spec. 9969, 867113., L=28mm |
