Spacer sleeve 823741

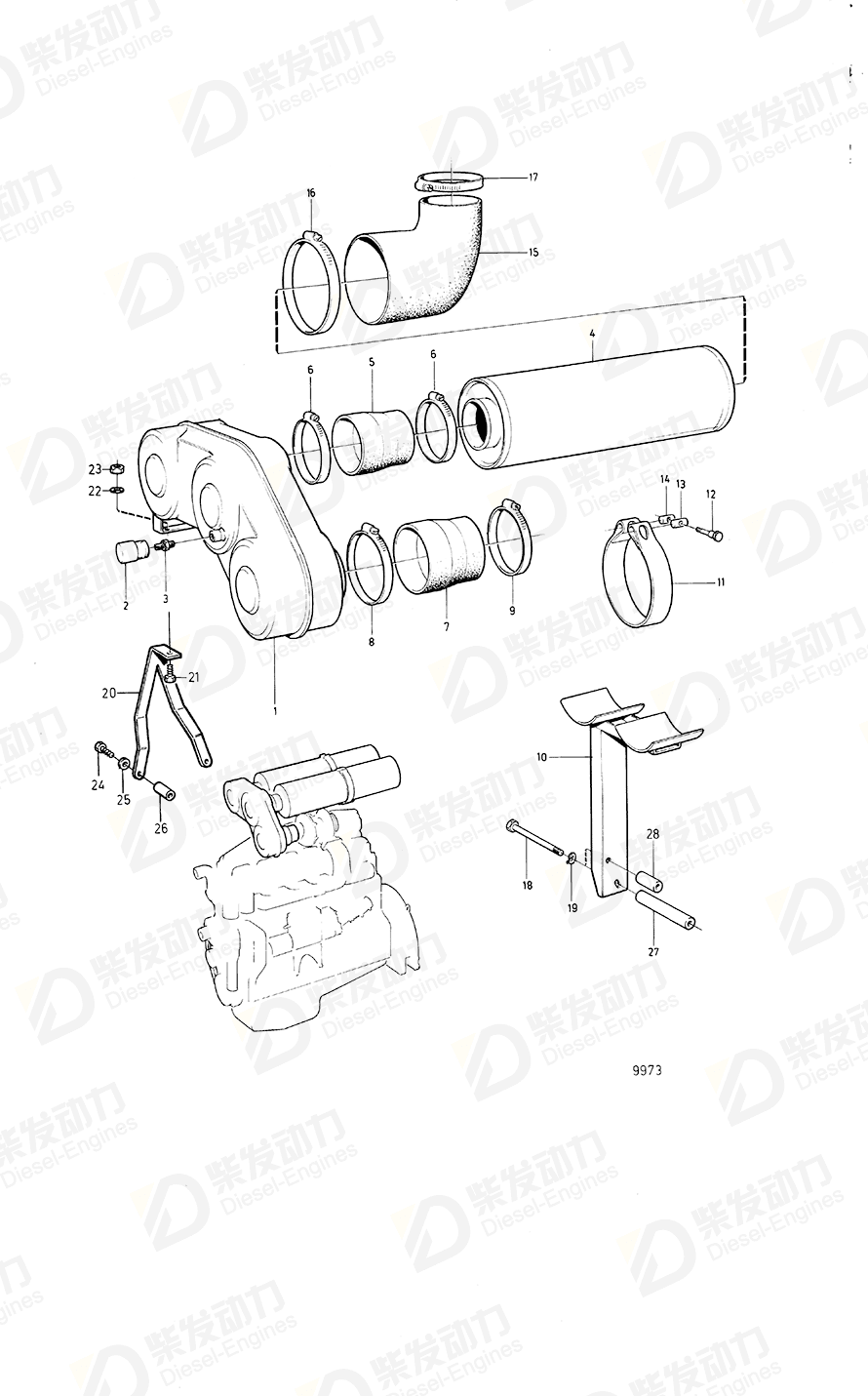

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 845218 | 1 | |
| 2 | Pressure drop indica | 842037 | 1 | |
| 3 | Nipple | 191095 | 1 | |
| 4 | Air filter | 823701 | 2 | Late type |
| 5 | Rubber fitting | 836334 | 2 | For 804961., D=105mm-113mm |
| 6 | Hose clamp | 943484 | 4 | (951801) |
| 7 | Rubber fitting | 847685 | 1 | |
| 8 | Hose clamp | 943484 | 1 | (951801) |
| 9 | Hose clamp | 853012 | 1 | When emergency stop is mounted. |
| 10 | Bracket | 849274 | 1 | |
| 11 | Tensioning band | 821028 | 2 | |
| 12 | Hexagon screw | 31406 | 2 | |
| 13 | Pin | 31405 | 2 | |
| 14 | Clevis pin, threaded | 31404 | 2 | |
| 15 | Manifold | 864291 | 2 | For air intake from outside the engine room. |
| 16 | Hose clamp | 944307 | 2 | D70B spec. 867221., Alt |
| 17 | Hose clamp | 961678 | 2 | D70B spec. 867221., Alt |
| 18 | Hexagon screw | 959795 | 2 | SN2120226440- |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Bracket | 863755 | 1 | |
| 21 | Flange screw | 946173 | 1 | |
| 22 | Washer | 955894 | 1 | |
| 23 | Hexagon nut | 955782 | 1 | |
| 24 | Hexagon screw | 955527 | 2 | |
| 25 | Spring washer | 941907 | 2 | |
| 26 | Spacer sleeve | 863784 | 2 | |
| 27 | Spacer sleeve | 823741 | 1 | L=91mm |
| 28 | Spacer sleeve | 847240 | 1 | L=23mm |
| Item | Part Name | Part No. |
| 27 | Spacer sleeve 823741 | 823741 |
| Details | |
| Engine model | TD120HP-86, TD121GG-86 |
| Application | Air Filter and Installation Components Starting Relay and Installation Components |
| Specification | |
| Descriptions | L=91mm L=92mm, early type |
