Spacer sleeve 829601

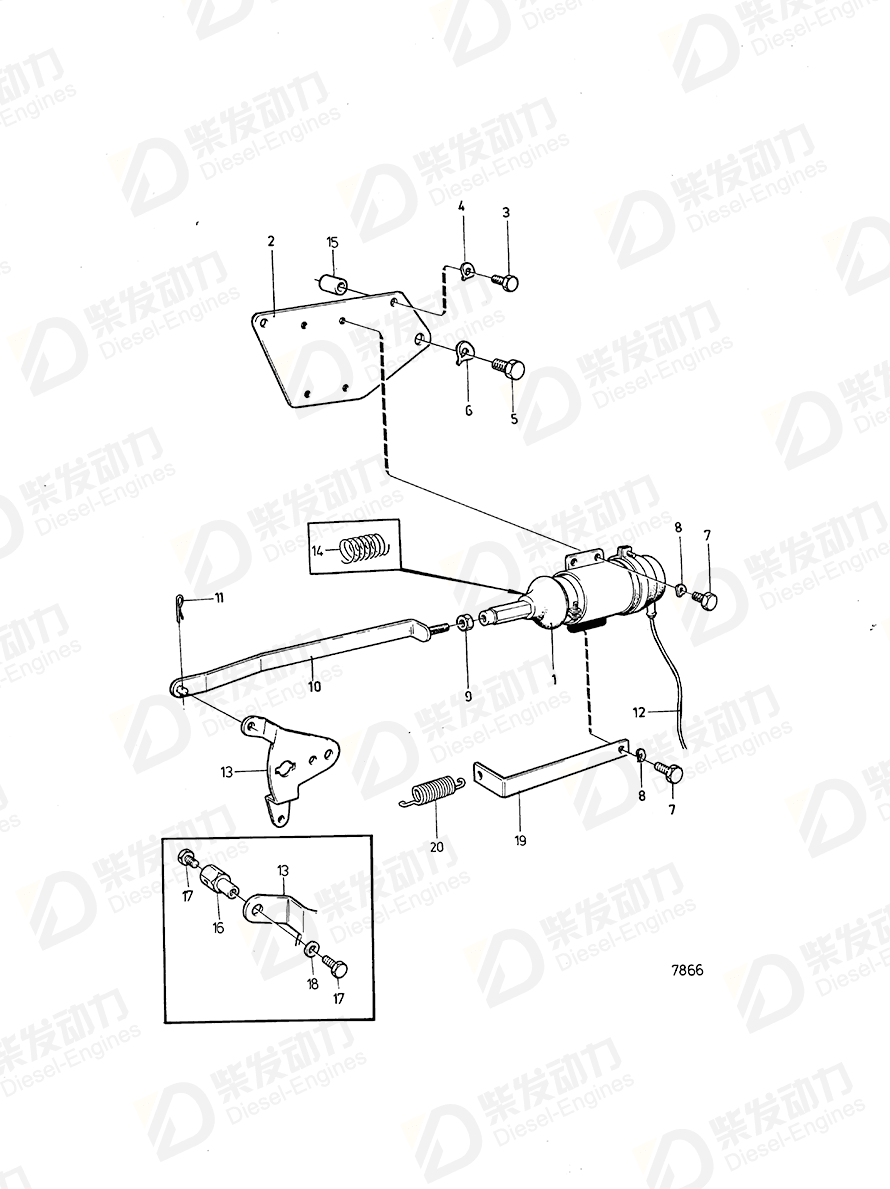

| No. | Part Name | Part Number | Qty | Description |
| 1 | Magnet | 881532 | 1 | 24V later prod |
| 2 | Bracket | 842341 | 1 | |
| 3 | Hexagon screw | 940117 | 2 | Late type |
| 4 | Spring washer | 941906 | 2 | |
| 5 | Hexagon screw | 955535 | 1 | |
| 6 | Spring washer | 942336 | 1 | |
| 7 | Cross recessed screw | 950045 | 4 | |
| 8 | Spring washer | 941906 | 4 | |
| 9 | Hexagon nut | 955857 | 1 | |
| 10 | Pull rod | 845911 | 1 | (844969) |
| 10 | Pull rod | 847245 | 1 | For stop solenoid conduktive when engine is running |
| 11 | Split pin | 907824 | 1 | |
| 14 | Return spring | 843401 | 1 | Late type |
| 15 | Spacer sleeve | 821539 | 1 | L=14mm, spec 9762 |
| 15 | Spacer sleeve | 829601 | 1 | |
| 19 | Spring anchorage | 836417 | 1 |
| Item | Part Name | Part No. |
| 15 | Spacer sleeve 829601 | 829601 |
| Details | |
| Engine model | TD60B TD60D TD60D-83 TD710G, TWD710G TD71AG, TID71AG TID60D TID60DG |
| Application | Control Motor Control Motor for Speed Control Stop Solenoid and Installation Components STOP SOLENOID AND INSTALLATION COMPONENTS: A STOP SOLENOID AND INSTALLATION COMPONENTS: B STOP SOLENOID AND INSTALLATION COMPONENTS: C STOP SOLENOID AND INSTALLATION COMPONENTS: D |
| Specification | |
| Descriptions | H=7mm later prod H=7mm, sen utf L = 7 MM |
Related Products
Tags: Spacer sleeve, Volvo Penta, 829601
