Spacer sleeve 830674

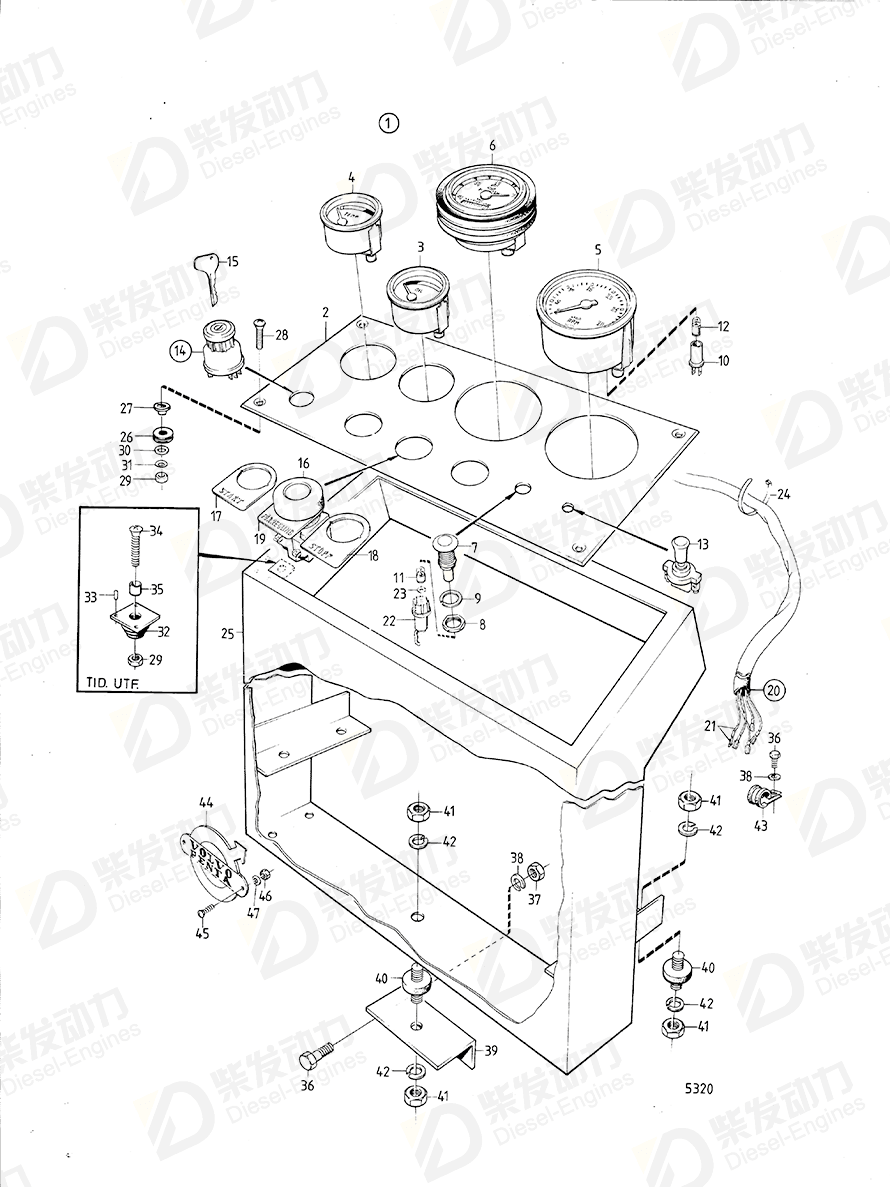

| No. | Part Name | Part Number | Qty | Description |
| 1 | Instrument panel | 823407 | 1 | Sintred metal |
| 2 | Instrument plate | 821354 | 1 | |
| 3 | Instrument | 813864 | 1 | |
| 4 | Thermometer | 827149 | 1 | |
| 5 | Tachometer | 819386 | 1 | |
| 6 | Hour recorder | 844957 | 1 | (815138) |
| 7 | Housing | 809485 | 1 | |
| 8 | Nut | 809487 | 1 | |
| 9 | Spring washer | 809488 | 1 | |
| 10 | Bulb socket | 804616 | 3 | |
| 11 | Bulb | 182034 | 1 | (277803) |
| 12 | Bulb | 182059 | 3 | |
| 13 | Pull switch | 819079 | 1 | |
| 14 | Starter switch | 837437 | 1 | |
| 15 | Key | 240321 | 2 | Åkerman spec. 867446 |
| 15 | Key | 241383 | 2 | Åkerman spec. 867446. |
| 16 | Push button | 837582 | 3 | For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 17 | Sign | 821389 | 1 | For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 18 | Sign | 821388 | 1 | For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 19 | Sign | 821387 | 1 | |
| 20 | Cable block | 836174 | 1 | |
| 22 | Retainer | 672750 | 1 | |
| 23 | Tubular rivet | 95497 | 1 | |
| 24 | Cable tie | 948210 | 1 | (827353) |
| 25 | Anchorage | 842944 | 1 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 |
| 26 | Bushing | 824834 | 4 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150. |
| 27 | Spacer sleeve | 824830 | 4 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150. |
| 28 | Screw | 941642 | 4 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 |
| 29 | Hexagon nut | 955781 | 4 | |
| 30 | Washer | 955893 | 4 | |
| 31 | Spring washer | 941906 | 4 | |
| 32 | Bearing | 6603050 | 4 | Replaces earlier starter drive gear 72220 |
| 33 | Blind rivet | 941699 | 12 | For charging of 2 batteries use charge distributor 831793, Early type |
| 34 | Screw | 941643 | 4 | Replaces earlier starter drive gear 72220 |
| 35 | Spacer sleeve | 830674 | 4 | Replaces earlier starter drive gear 72220. |
| 36 | Hexagon screw | 940114 | 3 | |
| 37 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 38 | Spring washer | 942336 | 3 | |
| 39 | Bracket | 822677 | 1 | |
| 40 | Rubber cushion | 88101 | 3 | |
| 41 | Hexagon nut | 955782 | 6 | |
| 42 | Spring washer | 941907 | 6 | |
| 43 | Clamp | 952629 | 1 | |
| 44 | Emblem | 846118 | 1 | |
| 45 | Screw | 941650 | 2 | |
| 46 | Hexagon nut | 955779 | 2 | |
| 47 | Spring washer | 941904 | 2 |
| Item | Part Name | Part No. |
| 35 | Spacer sleeve 830674 | 830674 |
| Details | |
| Engine model | D100B, TD100A D42A D70B TID121LGP-87 TWD1210G, TWD1211G TWD1643GE |
| Application | Electronic Speed Control Instrument Panel and Installation Components for Power Pack Instrument Panel for Power Pack, Spec.867290, 867285 Wastegare SN-2016103616 Wastegate SN2016103617- |
| Specification | |
| Descriptions | MO-XXXXX/21742.REPLACED BY 1 PC 842944,4 ST 824834,4 ST 824830,4 ST 955893,4 ST 941906. Replaces earlier starter drive gear 72220. |
Related Products
Tags: Spacer sleeve, Volvo Penta, 830674
