Spacer sleeve 836184

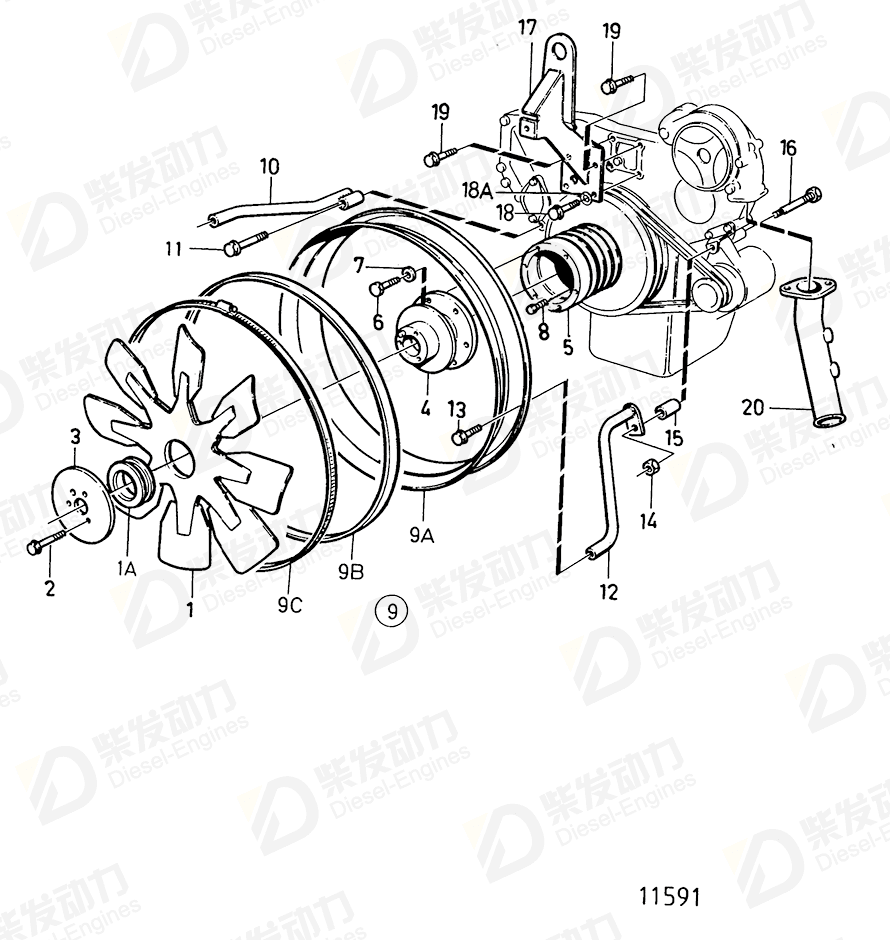

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 1542830 | 1 | (1661996) |
| 2 | Flange screw | 946473 | 3 | |
| 2 | Flange screw | 965189 | 3 | |
| 3 | Washer | 1661997 | 1 | Replaced by 1pc hub 1674165,1pc lever 1674166 and 3PC screw 946473., Early type, M10 |
| 3 | Washer | 1674166 | 1 | |
| 4 | Hub | 1664000 | 1 | Replaced by 1pc hub 1674165,1pc lever 1674166 and 3PC screw 946473., Early type, M10 |
| 4 | Hub | 1674165 | 1 | |
| 5 | Pulley | 466493 | 1 | For crankshaft mounted fan (4-groove). |
| 6 | Hexagon screw | 940132 | 6 | |
| 7 | Spring washer | 941907 | 6 | |
| 8 | Flange screw | 471529 | 8 | |
| 10 | Anchorage | 849620 | 1 | |
| 11 | Flange screw | 965187 | 1 | |
| 12 | Anchorage | 849619 | 1 | |
| 13 | Flange screw | 946440 | 3 | |
| 14 | Lock nut | 971083 | 1 | |
| 15 | Spacer sleeve | 836184 | 1 | Used when no alternator is mounted on left hand side. |
| 16 | Screw | 847925 | 1 | |
| 17 | Bracket | 6778469 | 1 | |
| 18 | Flange screw | 946471 | 2 | |
| 19 | Flange screw | 965190 | 2 | |
| 1A | Spacer | 1661363 | 1 | For 844800 |
| 20 | Coolant pipe | 849645 | 1 | Is used when crankshaft mounted fan is mounted. |
| 9A | Fan ring | 6778467 | 1 | |
| 9B | Sealing strip | 6778532 | 1 | |
| 9C | Hose clamp | 1544652 | 1 | |
| 18A | Gasket | 18666 | 1 |
| Item | Part Name | Part No. |
| 15 | Spacer sleeve 836184 | 836184 |
| Details | |
| Engine model | TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TD630VE, TWD630VE TD61A, TD61AW, TD71A, TD71AW, TID71A TD71A, TID71A, TD730VE, TWD731VE |
| Application | Crankshaft Mounted Fan Crankshaft Mounted Fan *late Production |
| Specification | |
| Descriptions | Use when no alternator is fitted on left hand side. Used when no alternator is mounted on left hand side. |
