Spacer sleeve 836838

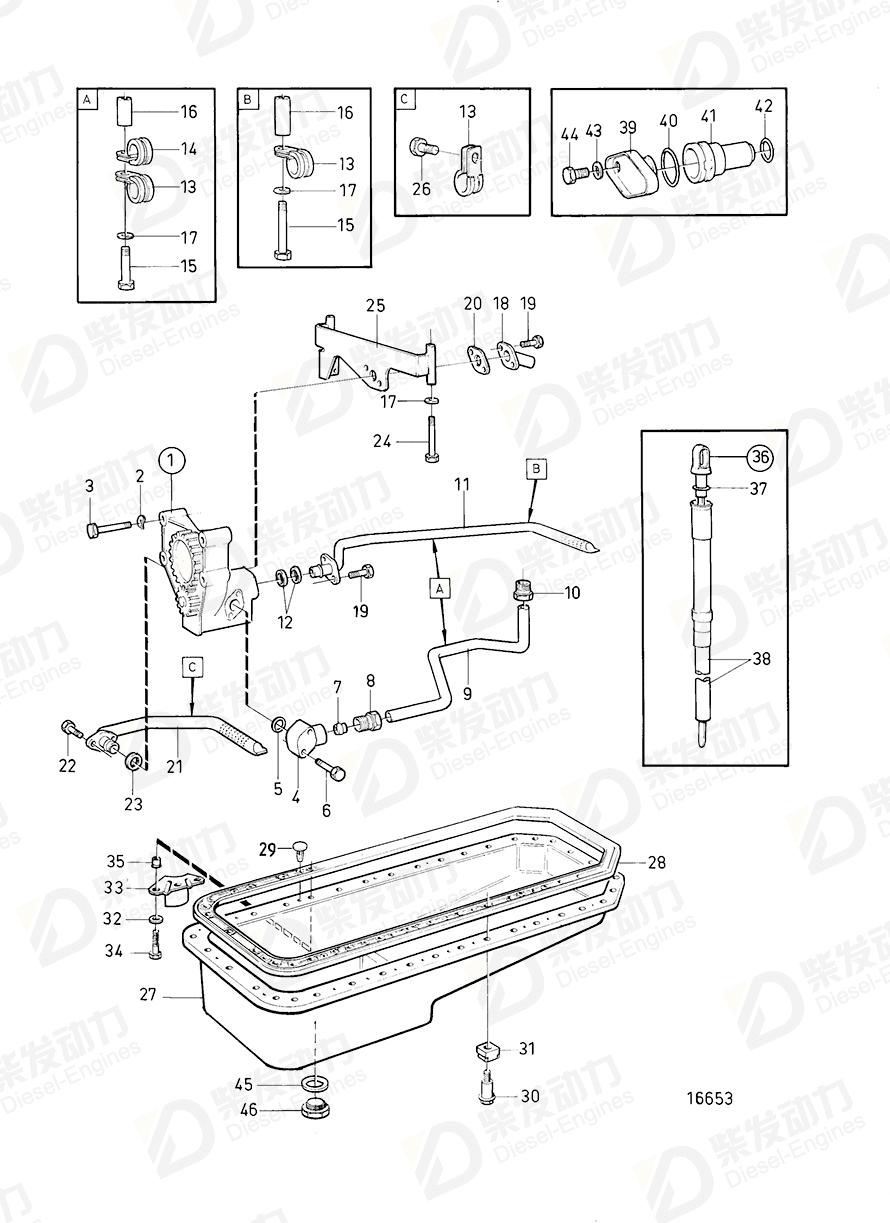

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 11031607 | 1 | |
| 2 | Spring washer | 942336 | 4 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Flange | 4778338 | 1 | |
| 5 | O-ring | 949657 | 1 | (925060) |
| 6 | Flange screw | 965216 | 2 | |
| 7 | Ferrule | 956973 | 1 | |
| 8 | Fitting | 470377 | 1 | SN-2120226439 |
| 9 | Oil feed pipe | 11031618 | 1 | |
| 10 | Fitting | 466908 | 1 | |
| 11 | Suction pipe | 865223 | 1 | |
| 12 | Sealing ring | 470383 | 2 | SN-2120226439 |
| 13 | Clamp | 968508 | 3 | |
| 14 | Attaching clamp | 1545432 | 1 | |
| 15 | Hexagon screw | 940136 | 2 | |
| 16 | Spacer sleeve | 836838 | 2 | SNXXXXX19090- |
| 17 | Washer | 955894 | 4 | |
| 18 | Pipe | 4778425 | 1 | |
| 19 | Hexagon screw | 941678 | 4 | |
| 20 | Flange | 4778427 | 1 | |
| 21 | Suction pipe | 3825426 | 1 | |
| 22 | Hexagon screw | 955296 | 2 | |
| 23 | Sealing ring | 470383 | 2 | SN-2120226439 |
| 24 | Hexagon screw | 955531 | 2 | Late type |
| 25 | Bracket | 11031828 | 1 | |
| 26 | Hexagon screw | 955296 | 1 | |
| 27 | Sump | 865190 | 1 | |
| 28 | Gasket | 479484 | 1 | |
| 29 | Plastic rivet | 943353 | 28 | For low noise sump. |
| 30 | Shoulder screw | 479068 | 41 | For low noise sump. |
| 31 | Rubber cushion | 420991 | 43 | For low noise sump. |
| 32 | Washer | 976944 | 2 | |
| 33 | Bracket | 479623 | 1 | |
| 34 | Hexagon screw | 940161 | 2 | For engine with 40° angle of inclination, L=45mm |
| 35 | Spacer sleeve | 420822 | 2 | For low noise sump. |
| 36 | Oil dipstick | 863797 | 1 | |
| 37 | O-ring, bearing housing | 925054 | 1 | |
| 38 | Tube | 3825207 | 1 | |
| 39 | Cover | 471752 | 1 | |
| 40 | O-ring | 949658 | 1 | (925061) early type |
| 41 | Reduction valve | 471707 | 1 | |
| 42 | Sealing ring | 469846 | 1 | |
| 43 | Spring washer | 949607 | 2 | |
| 44 | Hexagon screw | 940100 | 2 | |
| 45 | Gasket | 18813 | 1 | |
| 46 | Magnetic plug | 949175 | 1 |
| Item | Part Name | Part No. |
| 16 | Spacer sleeve 836838 | 836838 |
| Details | |
| Engine model | TAD120AHC TAD120BHC TAD120CHC TAD121CHC TWD1230ME TWD1630P |
| Application | After Cooler with Installation Components Lubricating System, 40° Inclination Radiator and Fan |
| Specification | |
| Descriptions | SNXXXXX19090- |
